Zetronix zClock-200w User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
zClock-200w
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the zClock-200w and is the answer not in the manual?

Questions and answers

Related Manuals for Zetronix zClock-200w

Summary of Contents for Zetronix zClock-200w

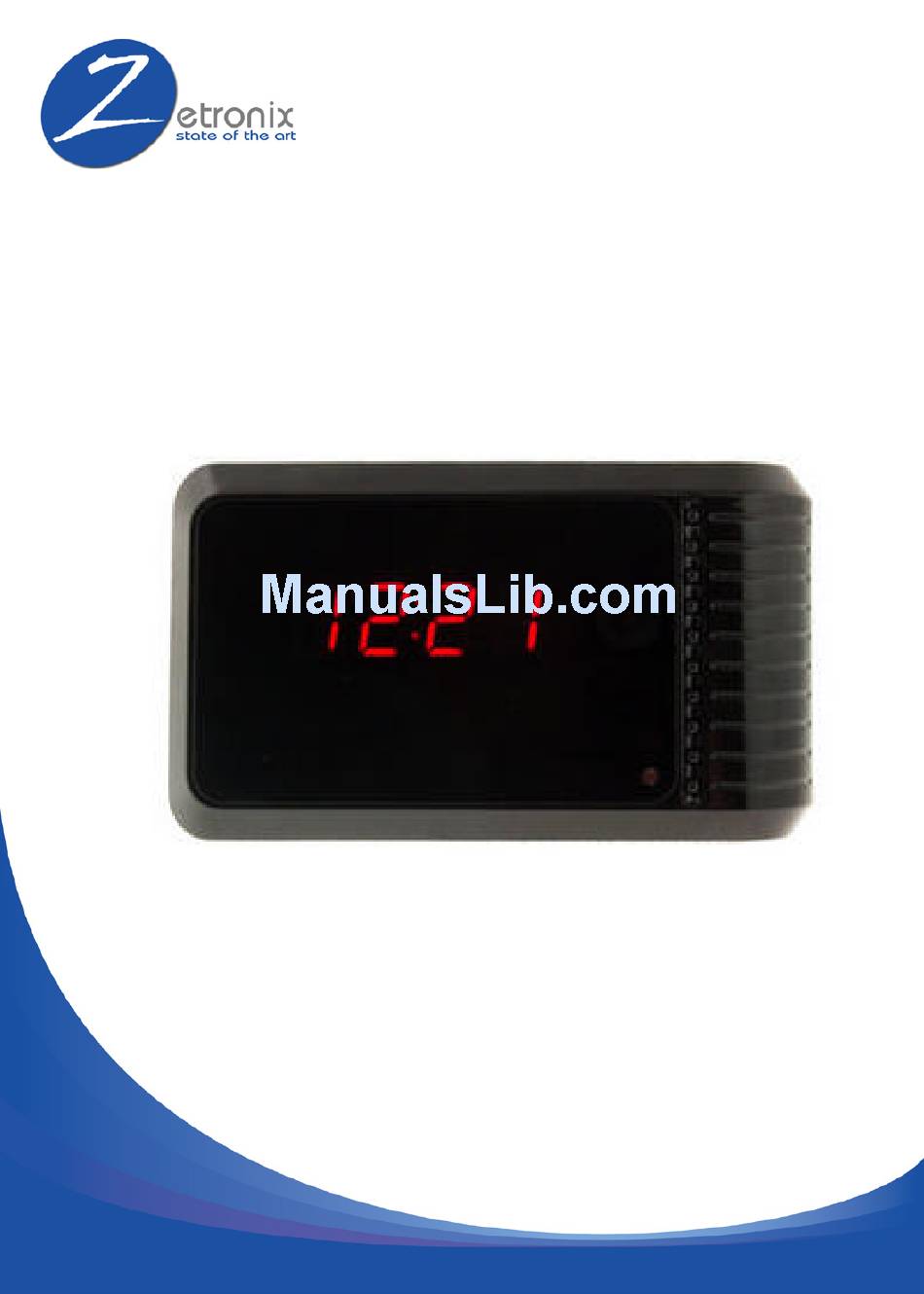

  • Page 1 User Manual...
  • Page 3 Table of contents Product Diagram......Page 1 Alarm clock operation....Page 5 Setting up Hidden Cam....Page 7 Advanced set up....Page 14 Windows....Page 15 Apple OSX ....Page 19 Playback menu..Page 20 Live video menu ..Page 21 Network options ..Page 22 Warranty.....
  • Page 4 1. Time 2. Night vision light A 3. Camera 4. Night vision light B 5. Light Sensor 6. Night vision light B 7. Charging indicator light...
  • Page 5 8. UP 9. Down 10. Time announcement 11. SET 12. Mode...
  • Page 6 13. Micro SD Card slot 14. Camera switch 15. DC Power 16. Reset switch...
  • Page 7 17. Speaker A 18. Speaker B 19. Microphone 20. Ethernet port...

  • Page 8: Setting The Time

    Alarm Clock Operation The zClock-200w clock operates inconspicuously as a fully functional alarm clock capable of displaying the time and date along with an optional talking clock function. Setting the Time -Press SET button (button 11) to begin entering the date and time. The clock will flash 2010, press the UP (button 8) and DOWN (button 9) buttons to adjust the year.

  • Page 9: Setting The Alarm

    Setting the Alarm -Press the MODE button (button 12) to enter alarm clock mode. Press SET (button 11) to select the hour. Use UP (button 8) and DOWN (button 9) to select the hour. Press SET again to set the minute and UP and DOWN to select it. Press SET again to choose how long to set the Snooze interval.
  • Page 10 Setting up the hidden camera Mobile Network Setup The free app will allow you to remotely view your video feed on an iOS or Android device. You can customize your settings to receive real-time alerts via email or SMS messaging based on the motion detection settings.
  • Page 11 Step 2. Make sure the provided ethernet cable is connected to your router and the back of your zClock-200w. Select the “Add Camera” tab from the P2P app and scan the QR code located in the back of the camera.
  • Page 12 Select the “Cameras” tab to customize your settings.
  • Page 13 Changing the Default Password Select Set Password. In this field you will enter the default password in the “Old” field: “000000”. Then in the “New” field, enter desired password and confirm. Then press “Save”. *Note: Select the “Back” button to enter Settings...
  • Page 14 WiFi Settings Select your WiFi network and enter your network’s password. Then press “Save”. - Remove the ethernet cable from the back of the camera. - Return to the main screen and select “Reconnect”. Allow 60 seconds for Network settings to reconfigure. - Select the “Back”...
  • Page 15 - Selecting “Alarm” - Camera will record based on motion settings. SD Card Formatting The zClock-200w Hidden Cam Alarm Clock will format your Micro SD card. Simply press “SD Set” and the Micro SD card will format. Time settings are based on the location detected...

  • Page 17: Advanced Set Up

    ADVANCED SET UP...

  • Page 18: Windows

    Windows Setup System Requirements: Operating System Windows 2000 / XP /Vista Browser: Internet Explorer 6.0 or above IE Browser Settings: It is possible you will have to enable all ActiveX controls and plugins. If your camera does not work, follow the instructions below to enable ActiveX.
  • Page 20 Configuring Your zClock-200w on a PC Step 1. Insert the Mini CD in to your PC. AutoPlay will open. Select “Open Folder” Step 3. Double-click the “Search IPCam” application to obtain your IP address.
  • Page 21 Step 4. Choose the IP address that appears in the search bar. You can click “Login” or double-click the IP address to Login into the Internet Explorer login interface. Step 5. Install the OCX ActiveX for the first time by clicking the “Load OCX” icon.
  • Page 22 The zClock-200w can be used on an Apple Macintosh computer as well. You will need to find the IP address of your zClock-200w by connecting the clock to your network with your ethernet cord and loging into your network’s router and consulting the list of devices connected to it.
  • Page 23 Step 6. Enter default username and password User: admin Password: 000000 Step 7. Now you are logged into the zClock-200w Hidden Cam interface. From here you can view live video, event recordings, customize your wireless settings, and more.

  • Page 24: Live Video Menu

    Advanced Set up Menu Live video menu Plays live video Stops live video Toggles live sound Sends mic sound to camera Saves current image as photo Records live video Stop current alarm function Expands video to fullscreen Brings up On Screen Display which allows you to change video frequency, mirror the image left-to-right or flip the...
  • Page 25 Playback recorded videos Advanced user Settings Advanced User Settings Device Info- Shows you your current network Video Info – Change video settings Audio Settings – Configure audio output...

  • Page 26: Alarm Settings

    SD card is removed and if you want video to be automatically recorded when an alarm is activated. Basic Network Settings Enables you to configure your camera’s network settings. If you are unfamiliar with advanced network set-up, do not adjust these settings or you may have to reset you zClock-200w...
  • Page 27 Wireless Lan Settings If you have not connected your zClock-200w to wifi using the mobile phone app, you can configure it’s Wi-Fi connection here. UPNP settings Enables UPNP. Consult documentation provided with your wireless router to see if it is compatible...
  • Page 28 Configures the date and time that shows on your video stream. Multi Device Settings Shows all compatible cameras on your network. If you have more than one zClock-200w you can view them from the same program. Mail Service Settings Input the email and servier information to allow your zClock-200w to send images and alerts to your inbox.

  • Page 30: Warranty

    Zetronix Corporation (“Zetronix”) warrants this product against defects in material or workmanship as follows: PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship.
  • Page 31 This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. If a problem with this product develops during or after the warranty period, please contact: Zetronix Corporation,...
