philippi TBM-HANSE Instruction Manual

Hide thumbs

Advertisement

Quick Links

k

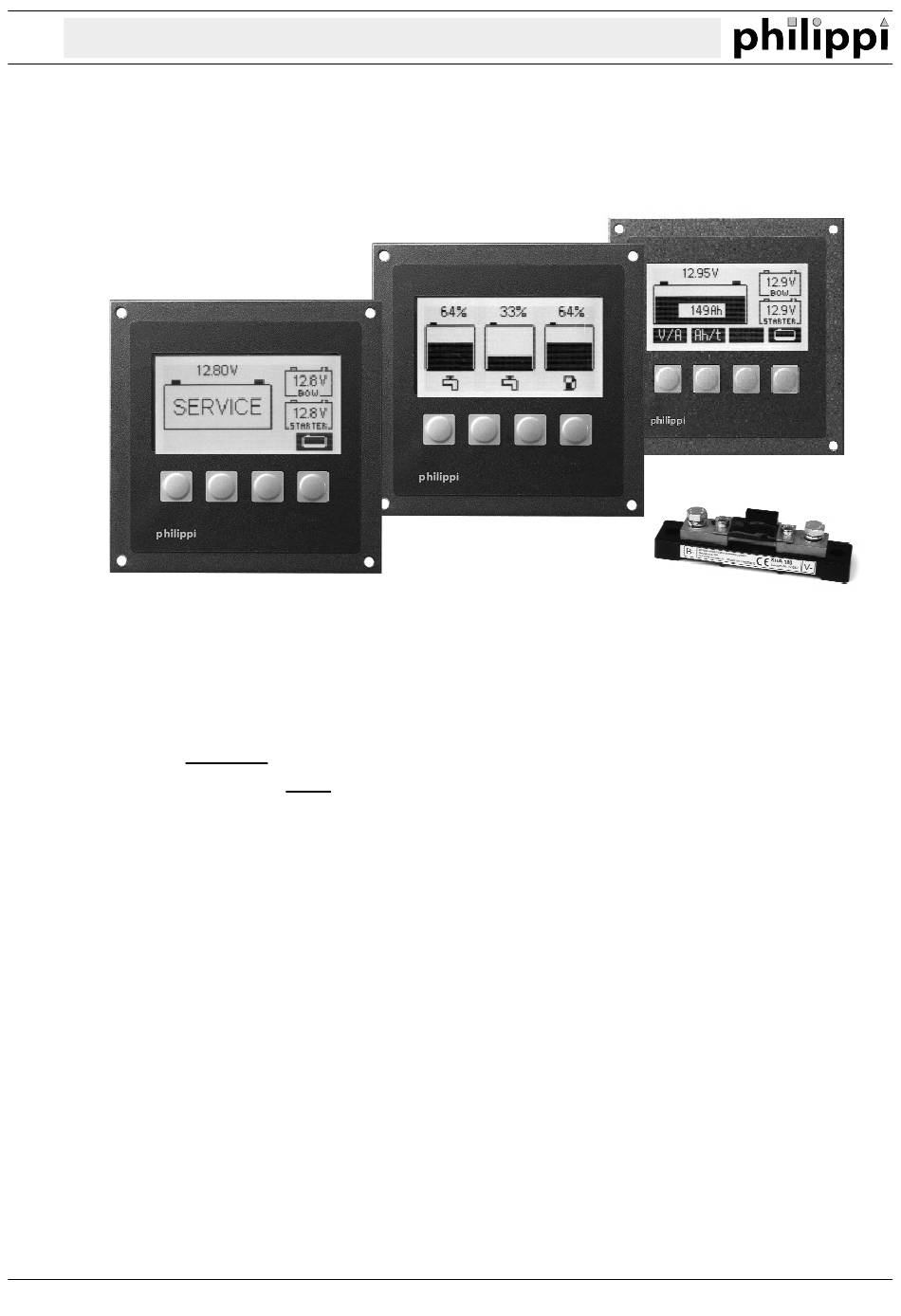

T B M - H A N S E
INDEX
0.
FUNCTIONS WITHOUT BATTERYMANAGEMENT............................................................................... 2
0.
OVERVIEW FUNCTIONS WITH BATTERYMANAGEMENT..................................................................3
1.
INTRODUCTION ..................................................................................................................................... 4
2.
SAFETY INSTRUCTIONS ...................................................................................................................... 5
3.
SUBSEQUENT INSTALLATION..............................................................................................................6
4.
START-UP................................................................................................................................................7
5.
OPERATION............................................................................................................................................9
6.
HANDLING / SETUP..............................................................................................................................10
7.
TROUBLESHOOTING...........................................................................................................................11
8.
MAYNTENANCE.....................................................................................................................................14
TECHNICAL DATA.................................................................................................................................14
9.
10. TERMINAL CONNECTION DIAGRAM................................................................................................. 15
11. CE-CONFORMITY.................................................................................................................................16
philippi elektrische systeme gmbh
Neckaraue 19
D-71686 Remseck am Neckar
V1.1 - May 2010
INSTRUCTION MANUAL
TBM - HANSE
www. philippi-online.de
info@philippi-online.de
Telefon: +49 (0)7146/ 8744-0, Fax -22

Advertisement

loading
Need help?

Need help?

Do you have a question about the TBM-HANSE and is the answer not in the manual?

Questions and answers

Related Manuals for philippi TBM-HANSE

Summary of Contents for philippi TBM-HANSE

  • Page 1: Table Of Contents

    SUBSEQUENT INSTALLATION......................6 START-UP..............................7 OPERATION............................9 HANDLING / SETUP..........................10 TROUBLESHOOTING...........................11 MAYNTENANCE.............................14 TECHNICAL DATA..........................14 10. TERMINAL CONNECTION DIAGRAM....................15 11. CE-CONFORMITY..........................16 philippi elektrische systeme gmbh www. philippi-online.de Neckaraue 19 info@philippi-online.de D-71686 Remseck am Neckar Telefon: +49 (0)7146/ 8744-0, Fax -22 V1.1 - May 2010...

  • Page 2: Functions Without Batterymanagement

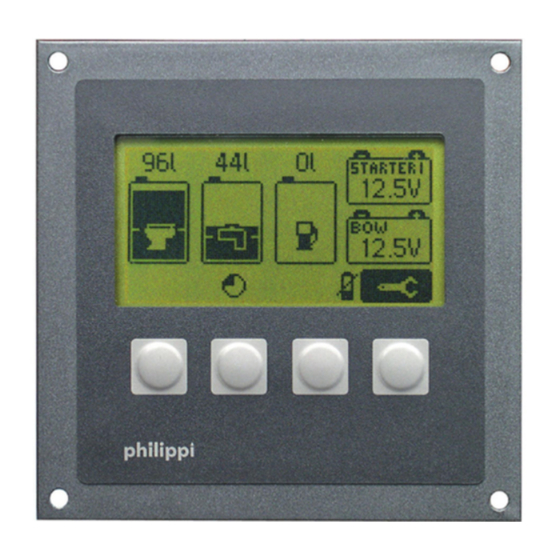

    T A N K & B A T T E R Y M O N I T O R T B M - H A N S E FUNCTIONS WITHOUT BATTERY MANAGEMENT The tank & battery monitor TBM shows the voltages of your batteries (service- and starter battery, if existing also the bow battery) and the levels of your tanks (3 or 4).
  • Page 3 T A N K & B A T T E R Y M O N I T O R T B M OVERVIEW BASIC FUNCTIONS WITH BATTERY MANAGEMENT The tank- & battery monitor TBM shows the capacity, load and discharging currents and the remaining time for the service battery and the voltages of your starter battery (if existing also the bow battery) and the levels of your tanks (3 or 4).

  • Page 4: Introduction

    T A N K & B A T T E R Y M O N I T O R T B M 1. INTRODUCTION Dear customer, congratulations - in your Hanse yacht is a tank & battery monitor TBM integrated in the panel. This digital unit is state of the art in tank &...
  • Page 5 T A N K & B A T T E R Y M O N I T O R T B M 1.4. WARRANTY philippi elektrische systeme gmbh grants a two year limited and not transferable warranty for the first buyer of this equipment, commencing on the date of purchase and covers defects in manufacturing, parts and materials.
  • Page 6 T A N K & B A T T E R Y M O N I T O R T B M 3. AFTERWARDS INSTALLATION IMPORTANT NOTE: Do not insert the fuse (1A) in the red supply wire at the shunt SHA into the fuseholder before finishing the complete installation of all components! Otherwise the system could be damaged or even totally destroyed! Before disconnecting the plug-in clamps of the components the fuse must first be removed.

  • Page 7: Start-Up

    T A N K & B A T T E R Y M O N I T O R T B M main battery. This wire is already equipped with an in-line safety device (1 A). Over this line the voltage of the main battery is measured and at the same time the battery monitor TBM is supplied.
  • Page 8 100%. We recommend the modern digital controlled philippi -battery chargers series AL. If the main battery is fully charged, the TBM capacity - value goes to 100%. When delivered, the factory setting was 70%.

  • Page 9: Operation

    T A N K & B A T T E R Y M O N I T O R T B M ADJUSTING THE ALARM OF THE ADDITIONAL BATTERIES The TBM supervises the battery voltage of the groups of batteries of 2 and 3 and produces an alarm, if the battery voltage falls for a fixed time (4 min) under an adjustable value.
  • Page 10 T A N K & B A T T E R Y M O N I T O R T B M 6. HANDLING The L/H side of the large operating back-lit display informs you of the charge status of your main battery. The illustration shows in the upper position the main batteries load / discharge current (A), whilst in the lower (boxed) area the remaining available capacity is indicated in amp-hours (Ah).
  • Page 11 T A N K & B A T T E R Y M O N I T O R T B M BUTTON SETUP In the SETUP -menu all necessary settings can be adjusted and statistical values can be shown (Chapter 6.1). By pressing the SETUP-Button for 5 sec.
  • Page 12 T A N K & B A T T E R Y M O N I T O R T B M CONTRAST The contrast of the display can be adjusted by pressing the + / - button (ref.: see setup display page 6) LANGUAGE By pressing the buttons +/- the language of the SETUP - menue can be changed.

  • Page 13: Troubleshooting

    T A N K & B A T T E R Y M O N I T O R T B M 7. TROUBLESHOOTING NO DISPLAY ON THE MONITOR x Check the power supply. The TBM is supplied through the shunt. On the rear clamp SHA 1 of the TBM there is minus and on the SHA 5 the plus, which is supplied through the + measuring line at the shunt.

  • Page 14: Technical Data

    T B M 9. TECHNICAL DATA Resolution Measuring range voltage service-battery 8,5-30 V DC (0,01 V) Measuring range I (current) 0-600 A (0,01A) Measuring range Amphours 0-6000 Ah (1 Ah) Measuring range starter / bowbattery 0-32 V DC (0,1 V) Measuring range remaining time 0-99,9 h (6 min)
  • Page 15 T B M WIRING DIAGRAM WITHOUT BATTERY MANAGEMENT: Identification of the operation mode: If the voltage at terminal 2 (Modus) is higher then 2V, there`s only a display of the voltage. WIRING DIAGRAM WITH BATTERY MANAGEMENT: Identification of the operation mode: If the terminal 2 (Modus) isn`t connected, the battery management is switched on.

  • Page 16: Ce-Conformity

    T B M 13. CE-CONFORMITY philippi elektrische systeme gmbh Neckaraue 19 71686 Remseck am Neckar Deutschland certifies herewith, that the products: Tank & battery monitor TBM Shunt SHA 150 Shunt SHA 300 Shunt SHA 600 fulfill the requirements of the European Regulation EMC 89/336/EEG “electromagnetic compatibility” and the amendments to 92/31/EEG and 93/68/EEG.
