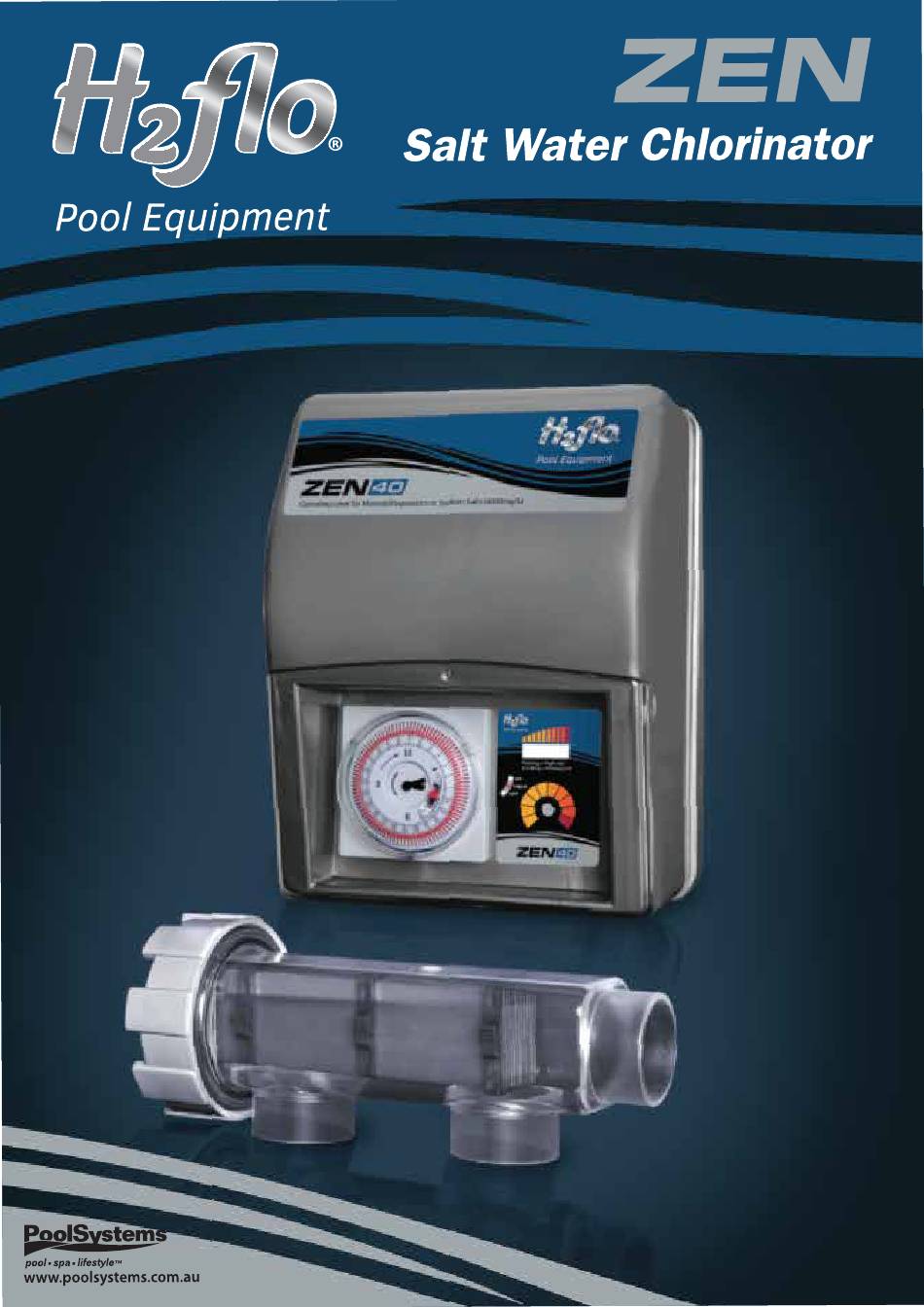

Pool Systems G2flo ZEN Quick Start Manual

Salt water chlorinator

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2flo ZEN and is the answer not in the manual?

Questions and answers

Georgeta Jansen
January 22, 2025

How do I put the timer on for 24hrs

1 comments:
Mr. Anderson
February 10, 2025

To set the timer on the Pool Systems G2flo ZEN:

1. Remove the clear cover from the timer.
2. Adjust the time to the correct time of day by turning the timer in a clockwise direction. The Hour and Minute hands will move as you turn the timer. For example, 6 = 6am, 12 = Midday, 18 = 6pm, and 24 = Midnight.
3. Set the operating times using the 96 levers around the face of the timer. Each lever represents a 15-minute interval. Push the levers outward for the times you want the system to operate.

Replace the clear cover after setting the timer.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Pool Systems G2flo ZEN

  • Page 2 !"#"$%$&"' #( ")*+',--.*,/01'0,/'21'3+14'25'0)*.461/',714'869:';'51,6+',/4',29<1',/4'-16+9/+' =*>)'6143014'-)5+*0,.?'+1/+965'96':1/>,.'0,-,2*.*>*1+'96'.,0@'98'1A-16*1/01',/4' @/9=.1471'*8'>)15'),<1'211/'7*<1/'+3-16<*+*9/'96'*/+>630>*9/'09/016/*/7'3+1'98' ,--.*,/01'*/','+,81'=,5',/4'3/416+>,/4'>)1'),B,64+'*/<9.<14('C)*.461/'+),..'/9>'-.,5' =*>)'>)1',--.*,/01('C.1,/*/7',/4':,*/>1/,/01'+),..'/9>'21':,41'25'0)*.461/'=*>)93>' +3-16<*+*9/(' D( ")1',--.*,/01':3+>'21'-16:,/1/>.5'09//10>14'>9'8*A14'=*6*/7',00964*/7'>9'>)1' /,>*9/,.'=*6*/7'63.1+('")1',--.*,/01':3+>'21'*/+>,..14?':,*/>,*/14',/4'+16<*014'25',' E3,.*8*14'.*01/+14'1.10>6*0*,/('$E3*-9>1/>*,.'29/4*/7':3+>'21'0,66*14'93>(' C( %1,/+'98'4*+09//10>*9/'869:'>)1'+3--.5':,*/+'),<*/7','09/>,0>'+1-,6,>*9/'*/',..' -9.1+'>),>'-69<*41'83..'4*+09//10>*9/'3/416'9<16<9.>,71'0,>17965'FFF'09/4*>*9/+':3+>' 21'*/096-96,>14'*/'>)1'8*A14'=*6*/7'*/',00964,/01'=*>)'>)1'=*6*/7'63.1+(' G( ")1',--.*,/01'+)93.4'21'+3--.*14'>)6937)','61+*43,.'03661/>'41<*01'HCG'),<*/7',' 6,>14'61+*43,.'9-16,>*/7'03661/>'/9>'1A0114*/7'IJ:,(' $( K,6>+'09/>,*/*/7'.*<1'-,6>+?'1A01->'-,6>+'+3--.*14'=*>)'+,81>5'1A>6,L.9='<9.>,71'/9>' 1A0114*/7'MNO?':3+>'21'*/,001++*2.1'>9','-16+9/?'*/'>)1'2,>)'96'+-,(' P( K,6>+'*/096-96,>*/7'1.10>6*0,.'09:-9/1/>+?'1A01->'61:9>1'09/>69.'41<*01+?':3+>'21' .90,>14'96'8*A14'+9'>),>'>)15'0,//9>'8,..'*/>9'>)1'2,>)'96'+-,(' Q( F8'>)1'+3--.5'0964'*+'4,:,714?'*>':3+>'21'61-.,014'25'>)1':,/38,0>3616?'*>+'+16<*01' ,71/>'96'+*:*.,6.5'E3,.*8*14'-16+9/'*/'96416'>9',<9*4','),B,64(' "!
  • Page 3 INDEX INDEX & SPECIFICATION INSTALLATION PLUMBING TIMER OPERATION WATER QUALITY TROUBLESHOOTING 10. PARTS 11. WARRANTY SPECIFICATION Model No C-H2FZ20 C-H2FZ30 C-H2FZ40 Voltage Input 240V AC 240V AC 240V AC Amps Input 8.6A 9.0A 9.1A Frequency Voltage output 8V DC 8V DC 8V DC Amps Output 9.5A...
  • Page 4: Installation

    INSTALLATION Position the chlorinator power module at least 1m above ground and at least 2m from the pool edge. Mount the stainless steel bracket to a solid structure with the screws provided and fit the power module over the two raised pins on the bracket, secure with the 2 locking clips provided.
  • Page 5 PLUMBING Plumbing should be performed by a qualified Plumber or a pool service technician where possible. WARNING: Do Not apply Priming Fluid to the Clear Cell Housing All pipe work should be primed with priming fluid before glue is applied, any high pressure PVC glue will work, make sure both surfaces are well coated before mating the connections as you will only have a few seconds before the glue bond will take.
  • Page 6: Setting The Time

    TIMER Setting the Time Remove the clear cover from the timer To adjust the timer to correct time of day, turn the timer in a Clockwise direction, the Hour & Minute hands will start to move. The illustration below shows the Time of day set to 4.30pm indicated by the arrow ( 6 = 6am, 12 = Midday, 18 = 6pm, 24 = Midnight etc ) Setting Operating Times There are 96 levers around the face of the Timer, each lever will operate the chlorinator...
  • Page 7: Manual Operation

    OPERATION Chlorine Control The Control Knob on the front of the chlorinator is used for chlorine control, Fully anti-clockwise is 0% and fully clockwise is 100%. There are 10 LED segments to indicate percentage production, every LED segment = 10% chlorine production Manual Operation To manually operate the Chlorinator &...
  • Page 8: Water Quality

    WATER QUALITY Your water BALANCE should be kept within the following levels for trouble free operation SALT - Sodium, Mineral or Magnesium Measurement Interval - once a month 4000 mg/L Measurement Interval - once a week 7.2 - 7.8 Controlling your pH is most important so that you have good active levels of chlorine throughout the water, high pH above 8.0 will reduce the effectiveness of chlorine When pH is high, Adding Hydrochloric acid will lower the pH When pH is low, Adding Sodium bicarbonate will raise the pH...
  • Page 9: Troubleshooting

    TROUBLESHOOTING Before troubleshooting, remove power from the chlorinator by turning off at the wall or removing the mains plug, wait for 10 seconds then re-apply power, this will reset the internal processor to its default state. PROBLEM CAUSE REMEDY Lights are scrolling 0 - 100% Priming cell Make sure water is flowing No water is flowing through...
  • Page 10 PARTS Mounting Bracket Backing Plate 20-30-40gr Transformer Main PCB Pump Outlet Ribbon Cable J-Box Mains Cable Timer Plastic Cover Control PCB Control Label Control Knob Clear Window Part No Description Mounting Bracket Backing Plate 20 - 30 -40gr Transformer Pump Outlet Timer Clear Window Control Knob...
  • Page 11: Warranty

    • POOL SYSTEMS or its agent will replace at no charge, all parts, which show faulty materials or manufacture faults. The foregoing constitutes the entire liability of POOL SYSTEMS to the original owner of the equipment.
