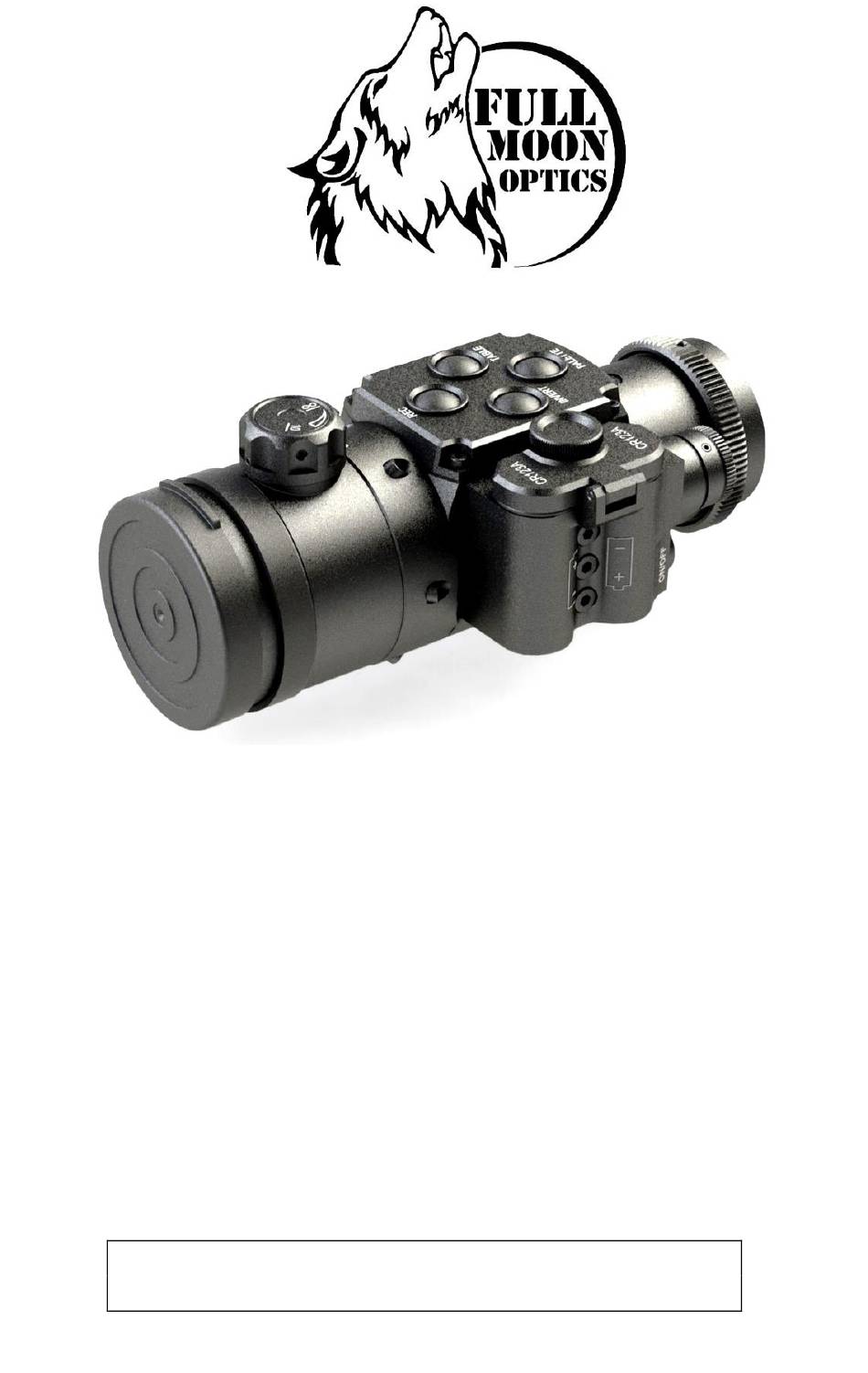

- Page 1 OMEGA Series O-40 O-55 LONG RANGE THERMAL CLIP-ON SYSTEMS OPERATION MANUAL Version 11.0.30 IMPORTANT: Please read this manual in its entirety PRIOR to using this device!
-
Page 2: Thermal Imaging
WARNING: NEVER POINT THIS DEVICE DIRECTLY AT THE SUN OR ANY FIRE / HEAT SOURCE WITH TEMPERATURE OF OVER 500C/930F! DOING SO WILL PERMANENTLY DAMAGE THE THERMAL SENSOR AND WILL VOID ANY WARRANTY CLAIMS! SEE PAGE-16 FOR MORE DETAILS AND FOR VERY IMPORTANT CARE WARNINGS! THERMAL IMAGING: Let’s try to understand how this device works and what it can... -
Page 3: Operation
OPERATION: OMEGA-40 / OMEGA-55 Thermal Clip-On... -
Page 4: Installing The Batteries
Glossary: 1 – Objective Lens 2 – Objective Lens Protective Cover 3 – Distance Focusing Knob 4 – Video Recording (REC) Button 5 – Table display Button 6 – Image Invert Button 7 – USER Programmable Button 8 – Super Controller / Menu Access 9 –... - Page 5 unit remains on, but the image display is turned off by pressing the Power Button just momentarily. The red LED power indicator (15) will remain lit during the standby mode. Always replace the objective lens cover after the unit is turned off and is no longer is in use.
- Page 6 To activate the Image Detail Enhancement (IDE) short- press the GAIN switch three times and letters IDE will appear in the display – you can now rotate the same switch and image details will be enhanced. There are 7 levels of enhancement and a Zero level.
- Page 7 factory pre-set profiles (Woods, Mountains & City). Customized profile settings are automatically saved once adjustments are made and in order to start a new profile enter the main menu and switch the User Profile from 1 to 2 or 3, then perform new adjustments according to your preference.
- Page 8 in the Super Contrast Mode, during video recording playback only normal mode will be visible. Super Contrast Mode can be utilized with any of the 10 color palettes. 10. USB Transfer Mode This setting allows you to transfer the video recorded data through USB connection to your computer or tablet.
- Page 9 assign a number of functions to this button, for example changing the User Profiles, or type of aiming mark (reticle) or changing the color of the reticle, or assigning a Super Contrast Mode, or instantly changing the color palette. You may assign the function to this button at any time and there are no limits to the number of times the user can re-assign this function.
- Page 10 22. Image Position Correction This setting allows user to adjust the thermal image up/down and left/right in the clip-on mode, in order for the thermal display to be positioned in the center of the daylight scope. Short press of Super Controller (8) changes between vertical and horizontal adjustments and rotating the Super Controller adjusts the position.
- Page 11 This selection displays the current software version and cannot be edited. This information may become useful if customer support is required. 30. Settings Reset This selection allows user to reset all settings to factory levels. We do not recommend using this function, unless you feel that the scope is not functioning as it should.
-
Page 12: Video Recording
USB output of your power supply. Once the external power supply is no longer needed, remove the factory cable and also remove the USB adapter and replace the metal safety cap before you take the unit to the field. Store the factory USB adapter and factory USB cable together in the carry case. - Page 13 enters Main Menu. NOTE: if you do not perform this function, bad pixel corrections will not be saved and you will have to perform the corrections again next time you start the scope. NOTE: latest models come with Automatic Bad Pixel Correction function, which does the process automatically.
- Page 14 STEP 2: Mount a zeroed rifle as securely as possible in some sort of rest (the Lead Sled is recommended) and align the crosshairs on a 25 meter/yard (m/y) target. Shoot a round at the 25m/y target. Nudge or adjust the rifle back to pointing at the aim point. Normally a rifle zeroed for 200 m/y will shoot an inch or perhaps 1.5”...
- Page 15 STEP 4: Attach a small thermal target to the aim point. Be prepared to freshen (replace) cold targets if they fade. Use the ‘IMAGE POSITION CORRECTION’ menu to move the crosshairs to the thermal target, without moving the rifle. Fire a second round. Use ‘IMAGE POSITION CORRECTION’...
-
Page 16: Technical Specifications
Power Supply_________________________ 2 x CR123 Lithium / or 5V USB Working time ___________________________ 3.5-4.5hrs (CR123 batteries) Working Temperature Range__________________-15C / +50C /// 5F / 122F Weight (riflescope mode)________________________________570g (600g) FULL MOON OPTICS 136 Sewell Rd., Elko, GA 31025 (USA) Tel: +1-478-954-2721 / +1-478-239-0099 E-mail: FullMoonOptics@gmail.com...
