Sminn BASIC + Instruction Manual

MOTOR CONTROLLER USAGE RESTRICTIONS
Operation is not guaranteed when installed in different equipment than the specified.
THE USAGE INSTRUCTIONS OF THIS DEVICE SHALL BE HANDED TO THE USER,
WHO WILL HAVE THEM IN THEIR POSSESSION. IF THEY ARE MISLAID, THE USER
CAN ASK FOR A COPY OR DOWNLOAD IT DIRECTLY FROM THE WEBSITE
WWW.SMINN.COM
The manufacturer keeps the right to modify the content of this document or the product
without prior warning. The equipment must be manipulated only by specialized and/or
skilled personnel.
WARRANTY
This product has undergone a complete TEST during its manufacturing process that
guarantees its reliability and proper operation.The manufacturer provides 24 months of
warranty to the product from the date printed in the product and against any anomaly
that it may present in its appearance or operation.
Any damage caused by third parties, natural causes (flooding, fire, lightning, etc), arising
from improper handling or installation, vandalism or any other cause non attributable to
the manufacturer will void the warranty.
The warranty only covers repairs or replacement of the damaged device.
Any expenses derived from assembling, travelling, transport, natural wear of parts, etc.,
and, in general, any expenses that are not part of the repairs or replacement of the
damaged element of the system are excluded.
The installer/provider will ask the manufacturer for an RMA number or authorization for
transport of the system in warranty. Without this previous requisite, the manufacturer will
not be able neither to process nor provide warranty service.
WARNING
This product must be used in istallations which has been conceived for, considering any
other as improper use. The packaging and wrapping MUST NOT be dumped in the
environment.
Keep products, packaging, wrapping, documentation, etc., out of the reach of children.
Follow the current local, national or European regulations. The information contained in
this document may have some mistakes that will be corrected in future editions. The
manufacturer keeps the right to modify the content of this document or the product
without prior warning.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE (WEEE)
In accordance with the European Directive 2002/96/EC about waste electrical and
electronic equipment (WEEE), the presence of this symbol (see symbol at the bottom of
this text) in the product or in the packaging, means that this article shall not be disposed
in local non-classified waste streams. It is the user's responsibility to dispose this product
taking it to a collection point designed for waste recycling of electrical and electronic
devices.
The separate collection of this product helps optimize the waste sorting and recycling of
any recyclable material and also decreases the impact on health and the environment.
For more information about the correct wasting of this product, please contact the local
authority or the distributor where you acquired this product.
INSTALLATION
SMINN's motor controller is ready to be easily fixed on a wall using the supplied wall plugs
and screws.
Before connecting or operating the device, the power supply switch or differential shall be
disconnected.
Specialized and/or skilled personnel will do the installation, using properly protected cable
of enough gauge and taking into account that devices permanently connected to the
mains need to have an accessible connection device (i.e. a magnetothermic switch).
The wiring should be done following the instructions printed in the serigraphy of the
circuit board. After programming and verifying the equipment, place the lid on the front
of the box, with the supplied screws.
Note: Reinforced concrete, metallic
components and/or any other
receiving device reduce dramatically
the radiofrequency signal, so
installation close to these elements
should be avoided.
innovative in electronics
TECHNICAL CHARACTERISTICS
BASIC +
Power supply 230V AC (125VAC Optional)
Motor power Single-phase 0,75CV
Radio receiver 433.92 MHz Crypto code SMINN
Sensitivity < -115 dBm
Code storage Internal memory 35 codes
Configuration switch Binary DIP SWITCH
Output power protection Auto. resetteable fuse
Output power for peripherals 15VDC / 0.3A
8K2 safety edge control Analog
Maneuver control inputs 3 - Optocoupled (C.SEG,P1,P2 )
Maneuver time Programmable (120 sec. max)
Operating temperature -20ºC to +85ºC industrial range
Maximum supported humidity 85% relative humidity
Casing ABS
Dimensions 130 x 95 x 40 mm
Protection rating IP54
10
9
8
7

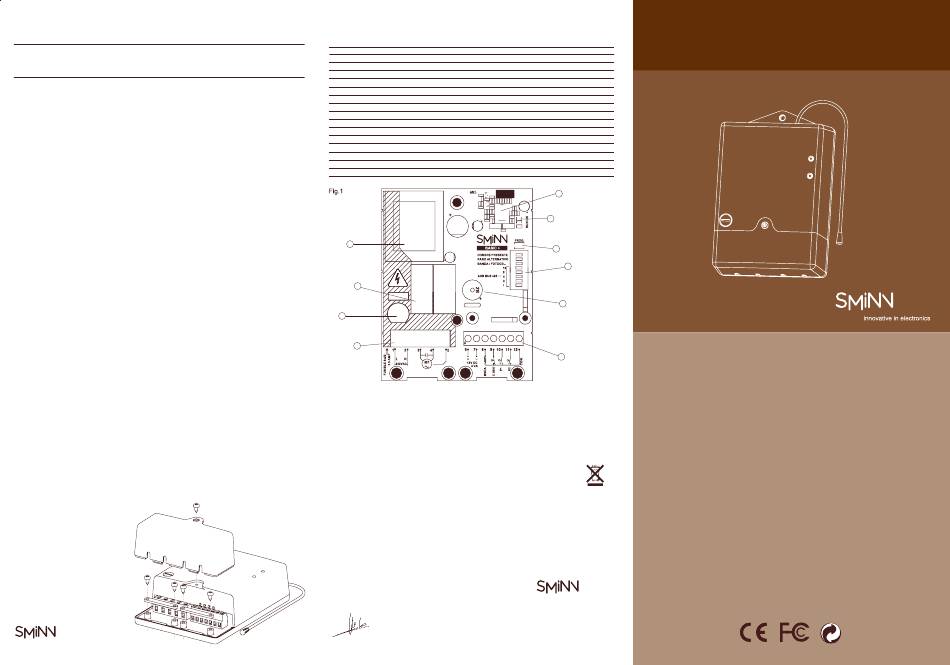

COMPONENTS
1.- 433.92MHz receiver module 6.- Peripheral terminal block
7.- Power and motor terminal block
2.- RUN / PROG led
3.- PROG button 8.- Protection fuse 3/6 A
4.- Configuration switch 9.- Maneuver activation relays
5.- Buzzer. 10.- Power transformer
CE DECLARATION OF CONFORMITY
The company ELSON ELECTRONICA, S.A. ELSON ELECTRONICA, S.A.
Pol. Torrelarragoiti, P6 - A3
Declares:
48170 Zamudio - Vizcaya (SPAIN)
The product: Cuadro Receptor Maniobra BASIC +
Manufactured
under the trademark: SMINN
For use in: Residential, commercial or light industry
environments.
This device meets the provisions contained in the article 3 of the R&TTE 1999/05/CE
Regulation, as long as its usage is compliant to what was envisaged, having applied the
following regulations:
Telecomunications: EN 300 220-1 v1.3.1 (2000-09)
EN 300 220-1 v1.1.1 (2000-09)
Electromagnetic
2004-108-CE
compatibility:
Low voltage: 2006-95-CE
Zamudio 2016.09.20
José Miguel Blanco Pérez
Chief Technical Officer

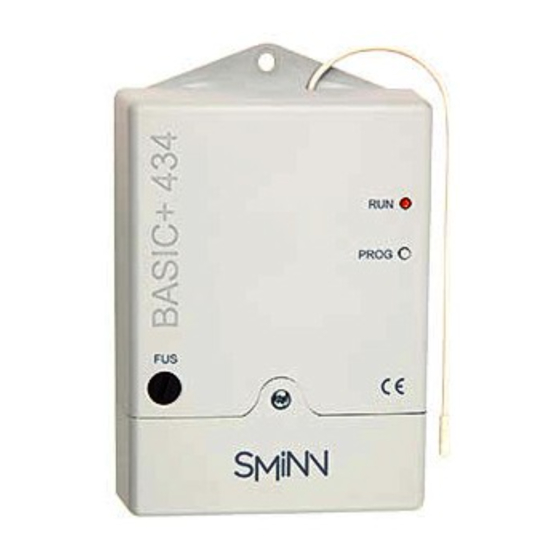

BASIC +
UNIVERSAL MOTOR CONTROLLER WITH RECEIVER
INSTRUCTIONS
MANUAL
1
2
3
1
4
5
DESCRIPTION
6
Motor controller with integrated radio to control single-phase
coaxial motors of up to 0,75 CV at 230VAC to be applied in
rolling shutters and rolling doors.
Easy selection between four maneuver types: automatic,
semiautomatic (alternative), dual channel and dead man.
Maneuver control via optocoupled inputs for light barriers
and buttons.
Automatic detection of external limit switches with
maneuver stop.
REV.4016
Devices that are built using high quality materials and
components and the latest technology. They are made taking
into account the current regulations for the usage in residential,
commercial and light industry environments.
innovative in electronics
T. +34 944 520 308
www. sminn.com
info@sminn.com
Pol. Torrelarragoiti, P6 A3
48170 Zamudio Bizkaia
SPAIN
