1
Connect power supply, motor and peripherals (See pages 4 and 5)
Three-phase 400V wiring
230VAC
400VAC 400VAC
400VAC
2
Power the control panel, the screen will turn on
3
Enter the menu by pressing BACK and ENTER simultaneously
4
Select door type
<
DOOR TYPE
>
RISING
Press ENTER to modify the
parameter
5
Select the maneuver mode (see page 7)
<
DOOR TYPE
>
RISING
Press Æ to go to the next
parameter

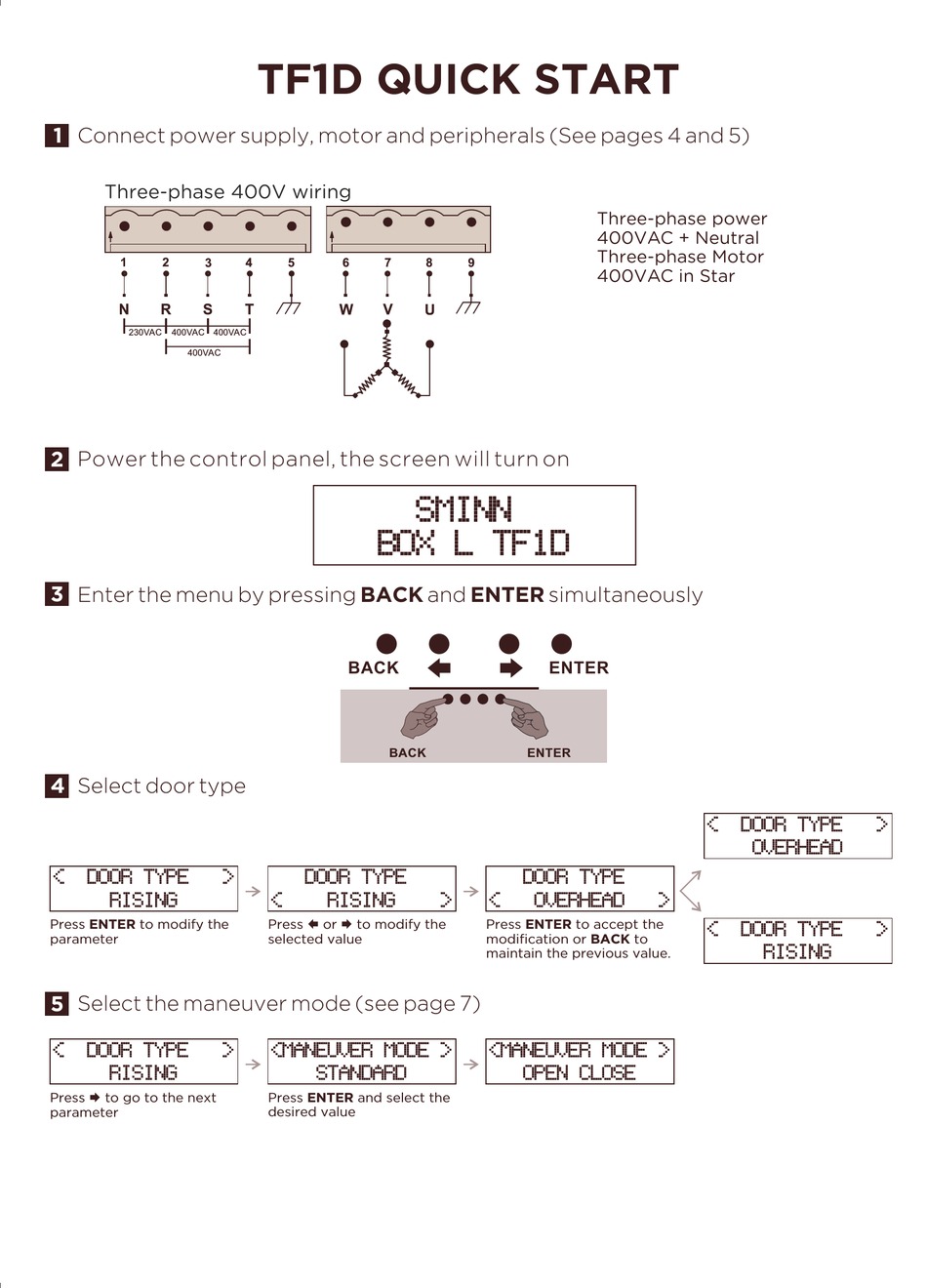

TF1D QUICK START
SMINN
BOX L TF1D
BACK
BACK
DOOR TYPE
<
RISING
Press Å or Æ to modify the
selected value
<MANEUVER MODE >
STANDARD
Press ENTER and select the
desired value
Three-phase power
400VAC + Neutral
Three-phase Motor
400VAC in Star
ENTER
ENTER
DOOR TYPE
>
<
OVERHEAD
Press ENTER to accept the
modi cation or BACK to
maintain the previous value.
<MANEUVER MODE >
OPEN CLOSE
<
DOOR TYPE
OVERHEAD
>
<
DOOR TYPE
RISING
>
>
Advertisement
Related Manuals for Sminn TF1D
Summary of Contents for Sminn TF1D
- Page 1 TF1D QUICK START Connect power supply, motor and peripherals (See pages 4 and 5) Three-phase 400V wiring Three-phase power 400VAC + Neutral Three-phase Motor 400VAC in Star 230VAC 400VAC 400VAC 400VAC Power the control panel, the screen will turn on...
- Page 2 Test motor operation and adjust limit switches <MANEUVER MODE > < MAINTENANCE > < VERSION > < OPENING > STANDARD Press Å until Press Æ until OPENING Press ENTER to enter the Press and hold ENTER to submenu test door opening. When MAINTENANCE appears.
