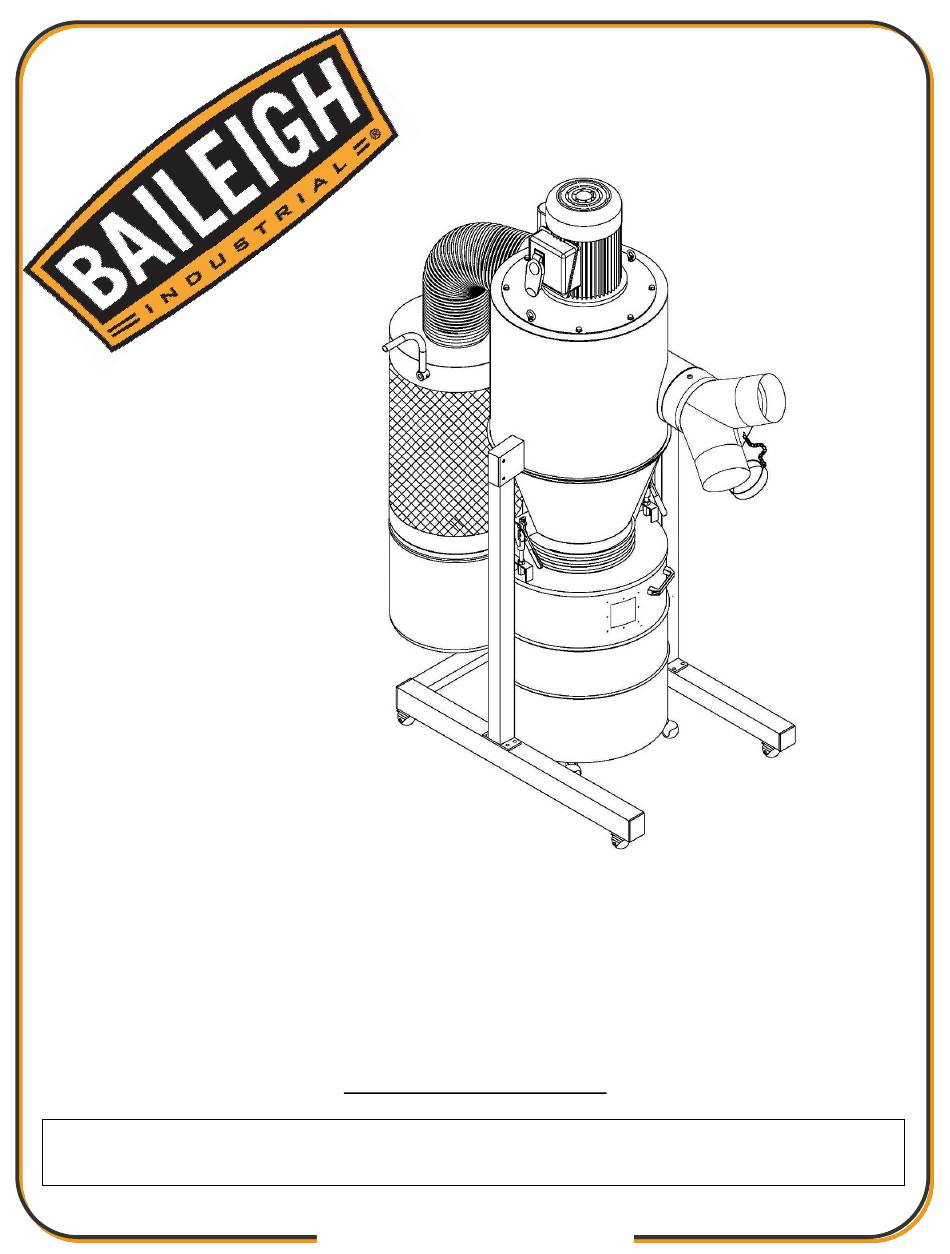

OPERATOR'S
MANUAL
DUST COLLECTOR
MODEL: DC-600C
Baileigh Industrial, Inc.
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: 920.684.4990
Fax: 920.684.3944
sales@baileighindustrial.com
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC.
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
caused by an omission or error in this Operator's Manual, resulting from accident, negligence, or other occurence.
Rev. 9/2012
© 2012 Baileigh Industrial, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-600C and is the answer not in the manual?

Questions and answers

Related Manuals for Baileigh DC-600C

Summary of Contents for Baileigh DC-600C

  • Page 1 REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC. IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurence.

  • Page 2: Table Of Contents

    Table of Contents THANK YOU & WARRANTY ..................1 INTRODUCTION ......................3 GENERAL NOTES......................3 SAFETY INSTRUCTIONS ....................4 SAFETY PRECAUTIONS ....................6 TECHNICAL SPECIFICATIONS ..................8 TECHNICAL SUPPORT ....................8 INSTALLATION ......................9 Cleaning ........................9 ELECTRICAL ........................ 10 Extension Cord Safety ....................

  • Page 3: Thank You & Warranty

    THANK YOU & WARRANTY Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it productive and useful to you for a long time to come. Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or...
  • Page 4 Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh Industrial reserves the right to make any and all changes deemed necessary in the course of business including but not limited to pricing, product specifications, quantities, and product availability.

  • Page 5: Introduction

    After receiving your equipment remove the protective container. Do a complete visual inspection, and if damage is noted, photograph it for insurance claims and contact your carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the unexpected occurrence. Temporarily suspend installation.

  • Page 6: Safety Instructions

    IMPORTANT PLEASE READ THIS OPERATORS MANUAL CAREFULLY It contains important safety information, instructions, and necessary operating procedures. The continual observance of these procedures will help increase your production and extend the life of the equipment. SAFETY INSTRUCTIONS LEARN TO RECOGNIZE SAFETY INFORMATION This is the safety alert symbol.
  • Page 7 PROTECT EYES Wear safety glasses or suitable eye protection when working on or around machinery. DUST HAZARD Wear appropriate dust mask. Dust created while using machinery can cause cancer, birth defects, and long term respiratory damage. Be aware of the dust hazards associated with all types of materials. DUST PARTICLES AND IGNITION SOURCES DO NOT operate the dust collector in areas where explosion risks are high.

  • Page 8: Safety Precautions

    SAFETY PRECAUTIONS Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result.
  • Page 9 SAFETY PRECAUTIONS (cont.) 11. Check for damaged parts. Before using any tool or machine, carefully check any part that appears damaged. Check for binding of moving parts that may affect proper machine operation. 12. Observe work area conditions. DO NOT use machines or power tools in damp or wet locations.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS Motor 1.5 HP (1.12kw) Motor Speed 3450 RPM Suction Capacity 1050 CFM 7” H Static Pressure O (178mm H Impeller Size 12.8” (325mm) 6” x 4” x 2” (152 x 102 x 51mm) Inlet Size Switch ON / OFF Switch 37.75”...

  • Page 11: Installation

    INSTALLATION IMPORTANT:  Maintain an adequate working area around the machine for safety.  Have the work area well illuminated with proper lighting.  Remove scrap and waste materials regularly, and make sure the work area is free from obstructing objects. ...

  • Page 12: Electrical

    ELECTRICAL CAUTION: HAVE ELECTRICAL UTILITIES CONNECTED TO MACHINE BY A CERTIFIED ELECTRICIAN! Check if the available power supply is the same as listed on the machine nameplate. WARNING: Make sure the grounding wire (green) is properly connected to avoid electric shock. DO NOT switch the position of the green grounding wire if any electrical plug wires are switched during hookup.

  • Page 13: Extension Cord Safety

     Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.  Use only 3-wire extension cords that have grounding type plugs and receptacles that accept the tool’s plug.

  • Page 14: Contents Of Package

    CONTENTS OF PACKAGE...
  • Page 15 Item Description Qty. Part List No. Main Housing NO.18 Cone NO.32 Base NO.28 Drum Lid NO.39 Quick Handle NO.33 Drum NO.46 Stand NO.25 Hose NO.38 Canister Filter NO.52 Hose Clamp NO.37 Inlet Adapter NO.20 Handle NO.65 Bag Clamp NO.50 Canister Filter Support NO.29 Wheel NO.27...

  • Page 16: Hardware Package

    HARDWARE PACKAGE Item Description Specification Qty. Part List No. 3/16” x 3/8” Phillips Head Screw NO.19 5/16” x 1/2” Flange Bolt Screw NO.24 Phillips Head Screw M5 x 8 NO.34 1/4” x 1/2” Flat Head Screw NO.42 1/4” x 3/8” Flange Bolt Screw NO.23 Open Wrench...

  • Page 17: Assembly Instruction

    ASSEMBLY INSTRUCTION 1. Use the Open Wrench (NO.48) to secure the Base (NO.28) and Wheels (NO.27). See FIG. 1 2. Place and secure the Stand (No.25) with 5/16” x 3/4” Flange Bolt Screw (No.8) as FIG. 1. Fig. 1 3. Tighten the Wheels (NO.27) under the drum (NO.46) into the thread nuts.
  • Page 18 4. Assemble the Main Housing (NO.18) and Cone (NO.32) with Cone Clamp (NO.30) and Hex. Head Screw (NO.31). See FIG. 3. Fig. 3 5. Using an assistant, Lift up the Main Housing (NO.18), then place on the Stand (NO.25). Using the Flange Bolt Screw 5/16”...
  • Page 19 6. Secure the Canister Filter Support (NO.29) and Base (NO.28) with Flange Bolt Screw 5/16” x 3/4” (NO.8). 7. Assemble the Canister Filter (NO.52) on the Main Housing (NO.18) and Canister Filter Support (NO.29), and then tighten with Flange Bolt Screw 5/16” x 1/2” (NO.24) and Flange Bolt Screw 1/4”...
  • Page 20 10. Assemble Inlet Adapter (NO.20) on the Main Housing (NO.18) and tighten with Phillips Head Screw 3/16” x 3/8” (NO.19). See FIG. 7. 11. Assemble Handle (NO.65) inside the Canister Filter (NO.52) and tighten with Set Screw 5/16” x 3/4” (NO.64) and Nut 5/16”...
  • Page 21 14. All the assembly steps are completed. See FIG. 9 Fig. 9...

  • Page 22: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 23: Part List

    PART LIST Item Description Specification Qty. Motor 1-1/2hp Bushing 5/16” Spring Washer 5/16 Power Cord 6 x 6 x 25 Motor Washer 5/16” x 3/4” Flange Bolt Screw 5/16” Hanger Motor Plate Switch Power Cord 5/16” x 1” Hex. Bolt 12.8”...
  • Page 24 Item Description Specification Qty. Quick Handle Phillips Head Screw M5 x 8 3/8” Foam Hose Clamp 10-1/2” 10” Hose Drum Lid 3/8” Long Nut Drum Handle 1/4” x 1/2” Flat Head Screw Packing Acrylic Board Rivet Φ420 Drum Allen Wrench Open Wrench 10 x 12mm Φ370 x 450...
  • Page 25 Item Description Specification Qty. 7/8” Sponge Button Head Screw M5 x 6 Bottom Fixing Support Anti-Dust Cover Gear M1.25 x T20 Set Screw M5 x 10 Bearing Support Spindle Flapper Arm Fixing Plate Flapper Phillips Head Screw M5 x 10 Upper Fixing Support Φ1/4”...
  • Page 26 NOTES...
  • Page 27 NOTES...
