- Page 1 CL7206B6A Integrated Fixed Reader User Manual (V1.0.2) Shenzhen Hopeland Technologies Co., Ltd...
- Page 2 Welcome to be Hopeland’s user. Thanks for choosing Hopeland’s Integrated Fixed Reader CL7206B6A. We believe our device will bring convenience for your work.
-
Page 3: Table Of Contents
CONTENTS 1 Technical specifications ..............................5 1.1 Product features ............................... 5 1.2 Main functions & technical specifications ......................5 1.2.1 The main function ..............................5 1.2.2 Performance Parameters ............................5 1.2.3 Work Environment ..............................6 2 Physical structure ................................7 2.1 Physical structure ................................ - Page 4 4.1 Daily maintenance ..............................14 4.2 Common failure analysis & resolutions ....................... 14 5, Packaging, accessories, transportation & storage....................15 5.1 Packaging: ................................. 15 5.2 Accessories ..........................错误！未定义书签。 5.3 Storage requirements ............................. 16 6. After-sale service ................................17...
-
Page 5: Technical Specifications

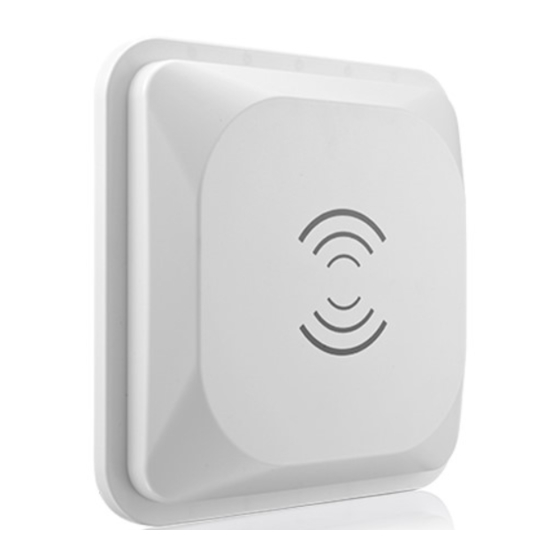

1 Technical specifications 1.1 Product features CL7206B6A is a high performance UHF RFID device integrated 9dBi circular antenna and reader all in one. Supports ISO18000-6C/6B protocols. The work frequency includes China standard dual frequency 920MHz ~ 925MHz and 840MHz～845MHz, FCC 902MHz ~ 928MHz and ETSI 865MHz ~ 868MHz. -
Page 6: Work Environment
Power (power adapter): AC input 100V ~ 240V, 50Hz ~ 60Hz DC output 24V±1.5V/2.5A High degree of protection: IP65 1.2.3 Work Environment Operating temperature range: -20 ℃ ~ + 70 ℃ Relative humidity: 5% RH ~ 90% RH (+ 25 ℃) -
Page 7: Physical Structure
2 Physical structure 2.1 Physical structure Pic 2- 1 CL7206B6A physical structure CL7206B6 reader size... -
Page 8: Weight
290mm×290mm×55mm(accessories not included) 2.2 Weight 1.6kg（accessories not included） 2.3 Interface definition This reader use 14 cores cable for power support and data communication. Detailed definitions as in following table: Color Definition Black Brown Orange GPO2/wiegand 1 Yellow GPO1/ wiegand 0 Green Blue Purple... - Page 9 For reader RS232 wire connection, please refer to below information: Below is the pin-out of a typical standard male 9-pin RS232 connector, this connector type is also referred to as a DB9 connector. A computer's serial COM port (DTE) is usually a male port as shown below, and any peripheral devices you connect to this port usually has a female connector (DCE).
-
Page 10: Installation Description
In order to ensure normal and stable operation of the equipment and your personal and property safety, please carefully read the following notes before installing CL7206B6A reader device： 1. First check whether the outlet is connected to the ground, and check if the local power supply voltage meet reader voltage requirements;... -
Page 11: Installation
☆ R485 port is used for longer range serial port communications (less than 80m); 3.4 Installation The reading and writing range of the reader depends on the on-site application, the tilt angle of the antenna is adjusted to achieve the best reading and writing performance. 3.5 Installation steps 3.5.1 Horizontal pole installation （1）Align the L-shaped mounting bracket against the screw poles on bottom of reader housing, then install... -
Page 12: Vertical Pole Installation
3.5.2 Vertical pole installation （1） Align the L-shaped mounting bracket against the screw poles on bottom of reader housing, then install the rubber and screw the M6 nuts, refer to pic 3-3: (2) Using two U-bolts and two toothed installation bracket to fix the reader on vertical rod through the L-bracket，refer to pic 3--4. -
Page 13: Acceptance
Pic 3-4 Vertical pole installation 3.6 Acceptance 3.6.1 Checking physical installation Check & ensure the reader is fixed safely; Check & ensure cables are connected securely. Check & ensure screws are screwed firmly. 3.6.2 Checking reader performance ☆ check & confirm the reader is working normally； ☆... -
Page 14: Common Failure Phenomenon
Check if tag is placed in effective reading range. Check if the electromagnetic interference between the reader and the other device. For the problems which cannot be solved locally, please contact Hopeland after-sales for repairing. -
Page 15: 5, Packaging, Accessories, Transportation & Storage
5.1 Packaging: Pic 6-1 carton box size Packaging carton box size: 350 mm×350 mm×190mm 5.2 Accessories Pic 6-2 accessories list Name Material code Unit Remarks CL7206B6A reader 26052835000002 Included Power adapter 24V/2.5A 20109000000324 Included AC power cable 20350000000195 Included Installation bracket... -
Page 16: Storage Requirements
5.3 Storage requirements Long time storage should be made in following conditions: ☆Environment temperature：-40℃～+85℃ ☆Relative humidity：5% RH～95%RH... -
Page 17: After-Sale Service
Thus the real product may be not in accordance with this manual. Generally, we will provide timely amendments to this manual. If it’s not provided timely, please consult our service department. Shenzhen Hopeland Technologies Co., Ltd. Email: support@hopelandrfid.com... - Page 18 3, the software of this product can be upgraded freely, users can be training in our company for free. 4, will be charge appropriately if the user doesn’t have a warranty card. 5, Users will need to fill out the warranty card for repair service, and sent back to Hopeland.
