- Page 1 CL7206B5A Integrated Fixed Reader User Manual (V1.0.2) Shenzhen Hopeland Technologies Co., Ltd...
- Page 2 Welcome to be Hopeland’s user. Thanks for choosing Hopeland’s Integrated Fixed Reader CL7206B5A. We believe our device will bring convenience for your work.
-
Page 3: Table Of Contents
CONTENTS 1 Technical specifications ..............................5 1.1 Product features ............................... 5 1.2 Main functions & technical specifications ......................5 1.2.1 The main function ..............................5 1.2.2 Performance Parameters ............................5 1.2.3 Work Environment ..............................6 2 Physical structure ................................7 2.1 Physical structure ................................ - Page 4 4.1 Daily maintenance ..............................15 4.2 Common failure analysis & resolutions ....................... 15 5, Packaging, accessories, transportation & storage....................16 5.1 Packaging: ................................. 16 5.2 Accessories ................................16 5.3 Storage requirements ............................. 17 6. After-sale service ................................18...
-
Page 5: Technical Specifications

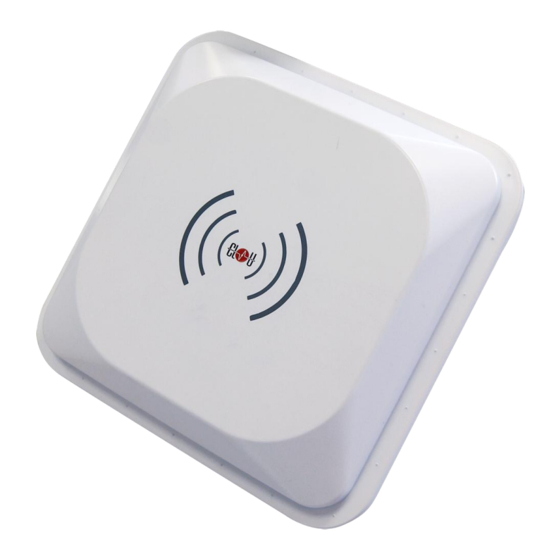

1 Technical specifications 1.1 Product features CL7206B5A is a high performance UHF RFID device integrated 9dBi circular antenna and reader all in one. Supports ISO18000-6C/6B protocols. The work frequency includes China standard dual frequency 920MHz ~ 925MHz and 840MHz～845MHz, FCC 902MHz ~ 928MHz and ETSI 865MHz ~ 868MHz. -
Page 6: Work Environment
Support: Wiegand 26, 34, 66 interfaces Power (power adapter): AC input 100V ~ 240V, 50Hz ~ 60Hz DC output 24V±1.5V/2.5A High degree of protection: IP65 1.2.3 Work Environment Operating temperature range: -20 ℃ ~ + 70 ℃ Relative humidity: 5% RH ~ 90% RH (+ 25 ℃) -
Page 7: Physical Structure
2 Physical structure 2.1 Physical structure Pic 2- 1 CL7206B5A physical structure CL7206B5 reader size... -
Page 8: Weight
290mm×290mm×55mm(accessories not included) 2.2 Weight 1.6kg（accessories not included） 2.3 Interface definition This reader use 14 cores cable for power support and data communication. Detailed definitions as in following table: Color Definition Black Brown Orange GPO2/wiegand 1 Yellow GPO1/ wiegand 0 Green Blue Network Receive -... - Page 9 For reader RS232 wire connection, please refer to below information: Below is the pin-out of a typical standard male 9-pin RS232 connector, this connector type is also referred to as a DB9 connector. A computer's serial COM port (DTE) is usually a male port as shown below, and any peripheral devices you connect to this port usually has a female connector (DCE).
- Page 10 For reader network wire connection, please refer to below information: RJ45 cables can be wired in two different ways. One version is called T-568A and the other is T-568B. These wiring standards are listed below: Line T-568A T-568B Connect to reader sequence White/Green (Receive +) White/Orange (Transmit +)
-
Page 11: Installation Description
In order to ensure normal and stable operation of the equipment and your personal and property safety, please carefully read the following notes before installing CL7206B5A reader device： 1. First check whether the outlet is connected to the ground, and check if the local power supply voltage meet reader voltage requirements;... -
Page 12: Installation
☆ Reader cable interface includes all signal cords in the interface definition table. ☆RS-232 interface is used for short-range communication (less than 5m), can be connected to a PC via DB9 connector for communication. ☆ R485 port is used for longer range serial port communications (less than 80m); ☆Ethernet port is used for longer range communications (less than 80m). -
Page 13: Vertical Pole Installation
Pic 3- 2 Horizontal pole installation 3.5.2 Vertical pole installation （1） Align the L-shaped mounting bracket against the screw poles on bottom of reader housing, then install the rubber and screw the M6 nuts, refer to pic 3-3: (2) Using two U-bolts and two toothed installation bracket to fix the reader on vertical rod through the L-bracket，refer to pic 3--4. -
Page 14: Acceptance
Pic 3-4 Vertical pole installation 3.6 Acceptance 3.6.1 checking physical installation Check & ensure the reader is fixed safely; Check & ensure cables are connected securely. Check & ensure screws are screwed firmly. 3.6.2 checking reader performance ☆ check & confirm the reader is working normally； ☆... -
Page 15: Common Failure Phenomenon
Check if tag is placed in effective reading range. Check if the electromagnetic interference between the reader and the other device. For the problems which can not be solved locally, please contact Hopeland after-sales for repairing. -
Page 16: 5, Packaging, Accessories, Transportation & Storage
5.1 Packaging: Pic 6-1 carton box size Packaging carton box size: 350 mm×350 mm×190mm 5.2 Accessories Pic 6-2 accessories list Name Material code Unit Remarks CL7206B5A reader 26052835000001 Included Power adapter 24V/2.5A 20109000000324 Included AC power cable 20350000000195 Included Installation bracket... -
Page 17: Storage Requirements
5.3 Storage requirements Long time storage should be made in following conditions: ☆Environment temperature：-40℃～+85℃ ☆Relative humidity：5% RH～95%RH... -
Page 18: After-Sale Service
Thus the real product may be not in accordance with this manual. Generally, we will provide timely amendments to this manual. If it’s not provided timely, please consult our service department. Shenzhen Hopeland Technologies Co., Ltd. Email: support@hopelandrfid.com... - Page 19 Guarantee card of Shenzhen Hopeland Technology Co.,Ltd Product Name Model No. Product Code Level Description of troubles User ’s name Postcode Contact person Contact no. Address of factory: Block 3 of CLOU Electronics Industrial Park, Baolong Industrial City, Longgang District ,Shenzhen, Guangdong, China...
