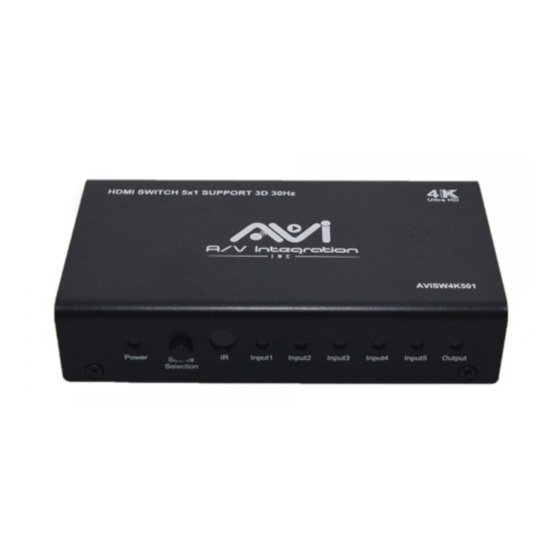

HDMI SWITCH 5x1 SUPPORT 3D 4K @30Hz
Model: AVISW4K501
TABLE OF CONTENTS

Specifications

Package Contents

Panel Descriptions

Connecting and Operating

Maintenance

Product service

Warranty
SPECIFICATIONS
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
Support Video format
3D video
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD Master Audio、Dolby true-HD etc.
Data transfer speed rate 10.2Gbps(Maximum)
Power consumption 1.5watts(Maximum)
Dimension (L×W×H) 115x62x25mm
N t e W e g i t h 2
Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
PACKING CONTENTS
1) Main Unit. Mini 5*1 HDMI switch
2) DC 5V1A Power Supply.
3) Operating Instructions,
4) Infrared Remote Controller
最后成品尺寸: 105*145MM
1
1 2 g
3
5x1 HDMI Switch with remote, Support 3D, 4K2K
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
Select one of 5 different HDMI Signal input sources and switch to 1 HDMI display.

Manual or with remote controller to select input signals.

Resolution reach up to 4k@60hz YUV 4:2:0.

Support 36bit deep color display.

Support High Definition Audio: Dolby TrueHD, DTS-HD Master Audio.

Support Resolution up to Ultra HD 4Kx2K@30Hz, Full HD 1080p.

Support CEC.

Support 3D.

NOTICE
Our company reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
2

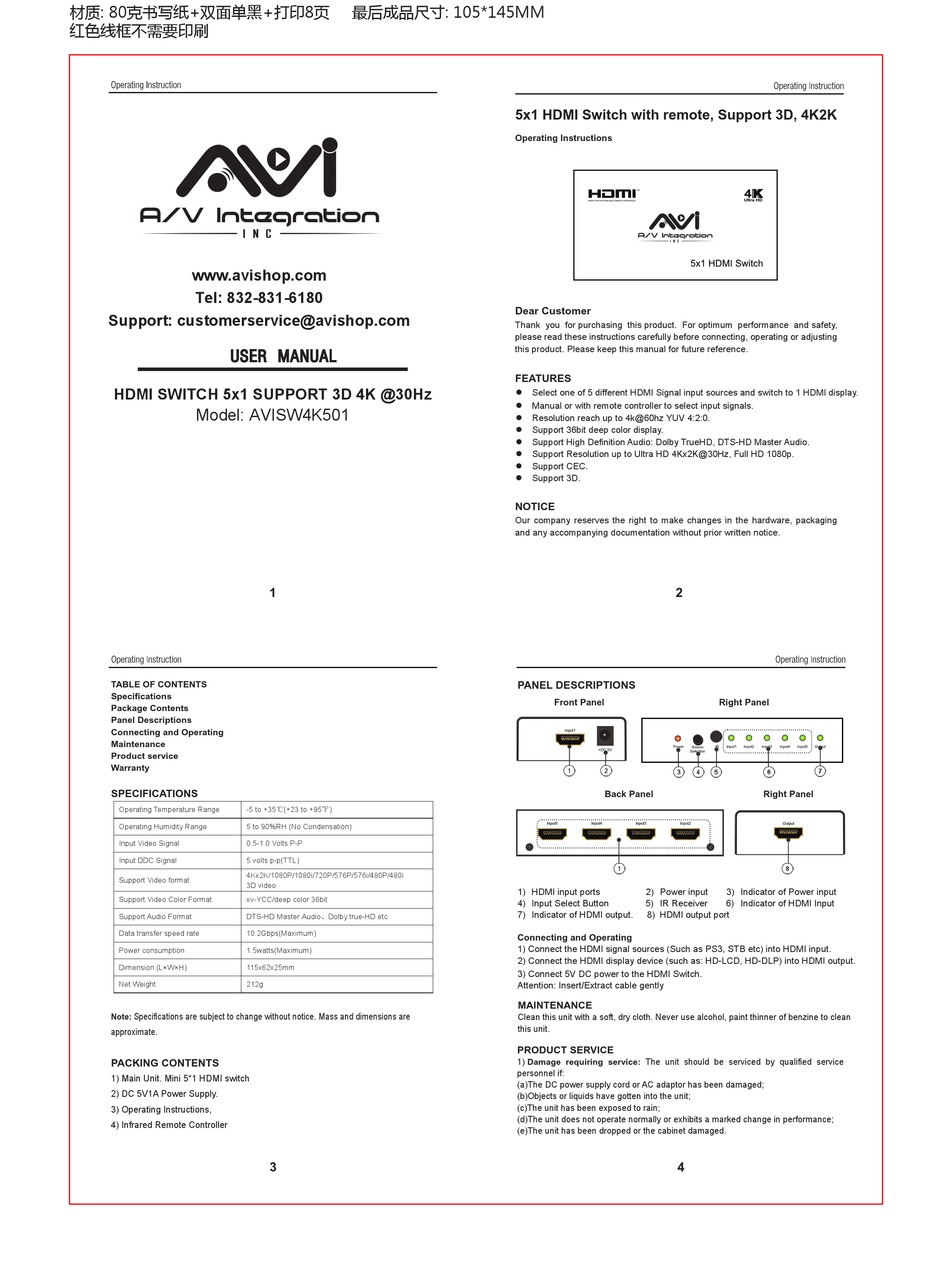

PANEL DESCRIPTIONS
Front Panel
Back Panel
1) HDMI input ports 2) Power input
4) Input Select Button 5) IR Receiver
7) Indicator of HDMI output. 8) HDMI output port
Connecting and Operating
1) Connect the HDMI signal sources (Such as PS3, STB etc) into HDMI input.
2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output.
3) Connect 5V DC power to the HDMI Switch.
Attention: Insert/Extract cable gently
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean
this unit.
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service
personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
4
Right Panel
Right Panel
3) Indicator of Power input
6) Indicator of HDMI Input
