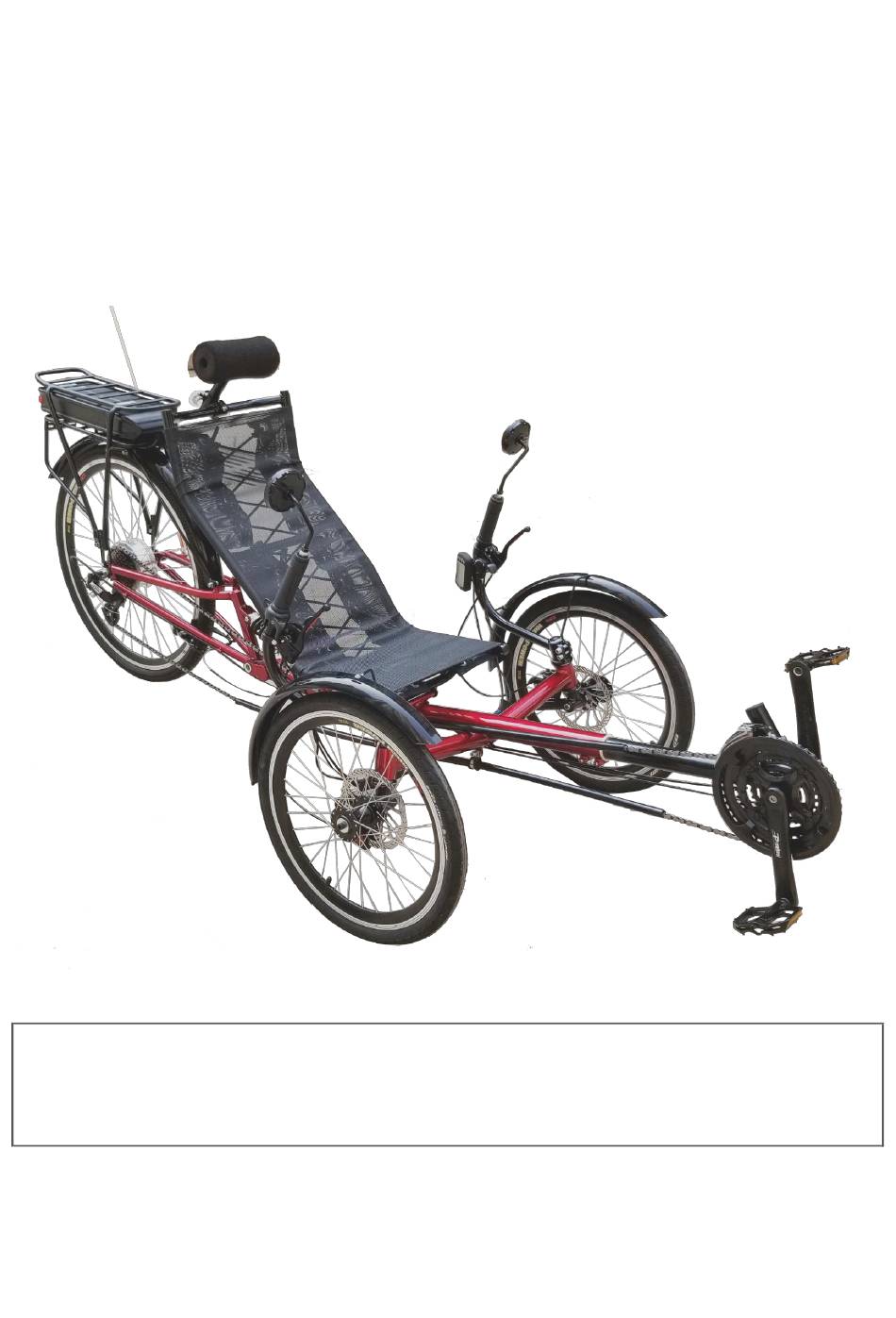

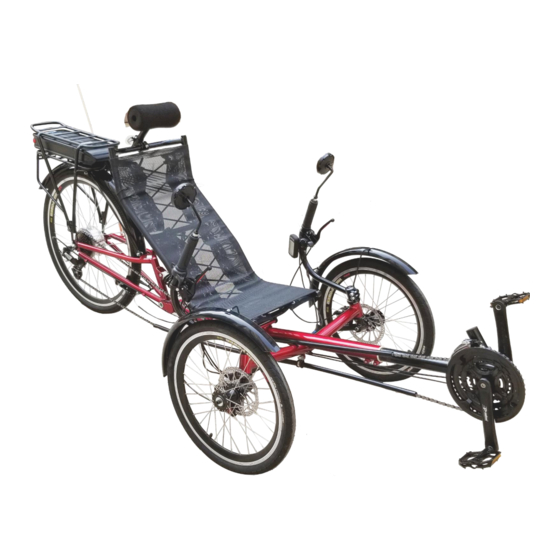

- Page 1 Owner's Manual For Recumbent Trike (M-009E) This manual contains important safety, operation and maintenance information. Read it before you take the first ride on your new bicycle, and keep it for reference.
- Page 2 Congratulations on being a new trike owner. We hope it brings you many years of enjoyment. This manual has been written to help you set up and use your trike. Recumbent trike may be a little different from the cycles you are familiar with, so please take a moment to read through this document.
- Page 3 Learn Your Trike ① ON/OFF button for control panel ② Front right brake lever ③ Front shifter lever ④ Front right brake lever ⑤ Rear shifter lever ⑥ Shifter release button ⑦ Thumb Throttle Page 2/8...
- Page 4 ⑧ Rear packing brake lever ⑨ Battery lock ⑩ Charging port ⑫ Button for state of charge ⑪ Tail light button Page 3/8...
-
Page 5: How To Operate
How To Operate 1. Adjust the front boom and seat in the right position. 2. Turn on the control panel. Hold the ON/OFF button 2 seconds to turn on the control panel. Tip: Please do not touch the throttle handle if you are not ready to go. For more information about the setting and operating, please refer to the control panel manual. - Page 6 8. How to fold the trike. 1). Make sure the battery is locked on the rear rack or remove the battery 2). Remove the seat and flagpole. 3). Open quick release at the folding hinge. Push the quick release bolt outward. When the clasp is out from the hole, slightly press down the frame to separate the folding hinge.
-
Page 7: Maintenance
Maintenance Good maintenance will play a major role in keeping your trike in good working condition and prolonging the life of the batteries. Please follow these suggestions: • To prevent rust always keep your vehicle dry and clean. • Regularly check the front and rear tires, suspension and body frame and all fasteners. •... - Page 8 Battery Charger Troubleshooter When there is a battery failure, there is a possibility it was caused by a bad battery charger. When the charger is only plugged into the wall, it should show a green light. If there is no light showing, confirm that the outlet is good.
-
Page 9: Wiring Diagram
Wiring Diagram Page 8/8...
