MoTrike M-010 Assembly Instruction Manual

Recumbent trike

Advertisement

Quick Links

Recumbent Trike Assembly Instruction
M-010 And M-010F
www.zzmerck.com
Page 1/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-010 and is the answer not in the manual?

Questions and answers

Summary of Contents for MoTrike M-010

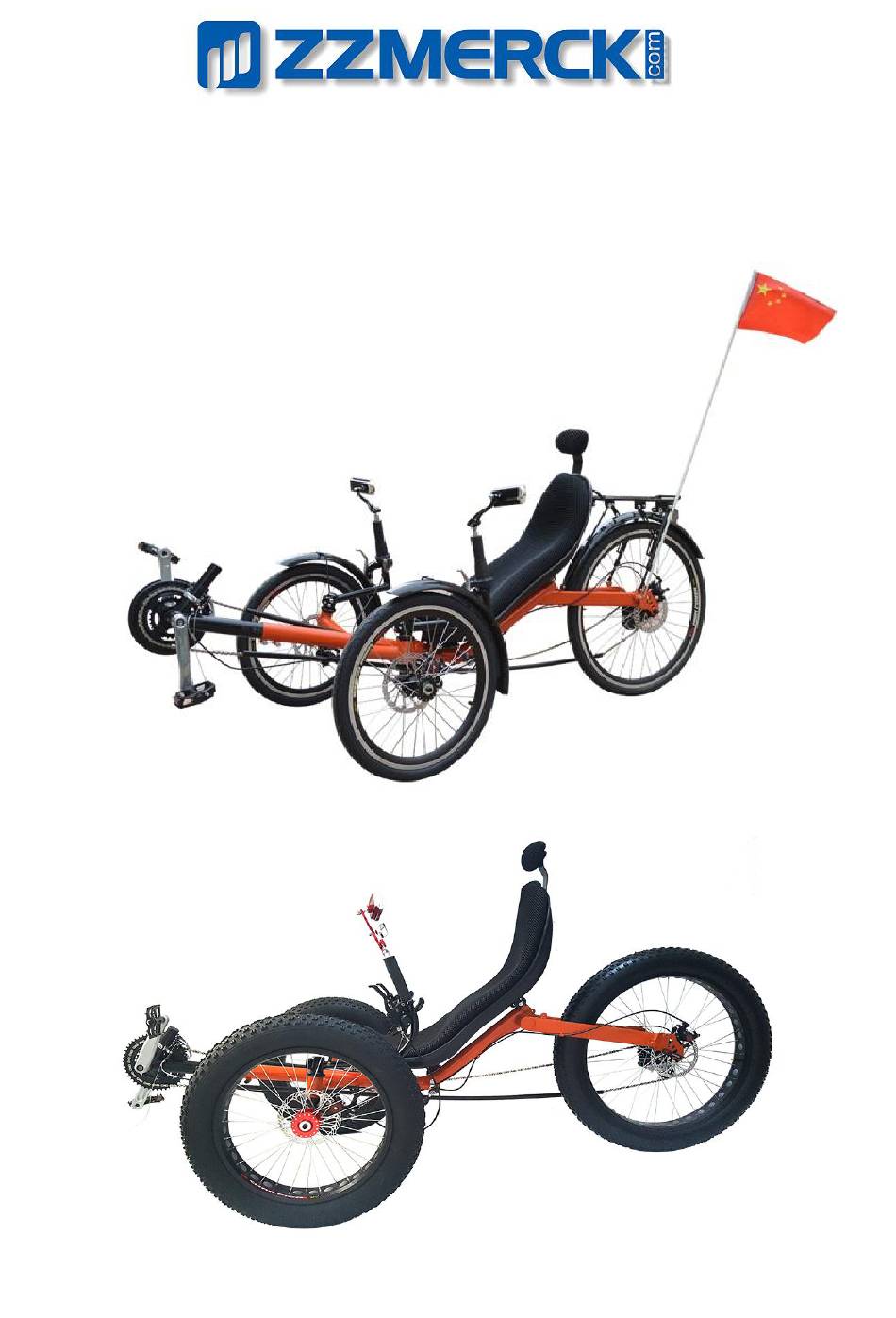

  • Page 1 Recumbent Trike Assembly Instruction M-010 And M-010F www.zzmerck.com Page 1/15...
  • Page 2 Check all the parts Main frame (cross frame) Main frame (rear fork) Front boom with crankset Handlebars Front wheels with steering shaft www.zzmerck.com Page 2/15...
  • Page 3 Rear wheel Steering rod Brake and derailleur cables Chain tubes Seat www.zzmerck.com Page 3/15...
  • Page 4 Rear derailleur, pedals, chain Bolts and screws Mirrors Tools www.zzmerck.com Page 4/15...
  • Page 5 1. Assemble the main frame a. Connect the cross frame and reak fork by the bolts b. Tighten the quick released screw c. Finish assembly the main frame www.zzmerck.com Page 5/15...
  • Page 6: Assemble The Front Wheels

    2. Assemble the rear wheel a. Put the rear fork and rear wheel in right position b. Tighten the quick released screw 3. Assemble the front wheels a. Take off the head sets from the steering shaft b. Insert the steering shaft into the cross frame. (Please pay attention to the position of the parts ①②③④.) www.zzmerck.com Page 6/15...
  • Page 7 4. Assemble the steering rod Mount the steering rod on the steering shaft (Please do not adjust the length of the rod.) 5. Assemble the handlebars a. Insert the handlebars into the steering shafts and tighten the screws b. Mount the head cover www.zzmerck.com Page 7/15...
  • Page 8 6. Assemble the handlebars Insert the front boom into the tube of cross frame. (The distance in the tube shoul be at less 15 cm for security.) 7. Assemble the rear derailleur Assemble the rear derailleur on the rear fork www.zzmerck.com Page 8/15...
  • Page 9 8. Assemble the chain tube a. Insert the chain tubes into the ring b. Fixed them by screw c. Finish assembly the chain tubes www.zzmerck.com Page 9/15...
  • Page 10 9. Assemble the chain a. Pass the chain through the short chain tube, chain wheel, cassette, rear derailleur, long chain tube, crankset, and then connect the chain. (Chip "L" pin through the end of the chian.) www.zzmerck.com Page 10/15...
  • Page 11 The structure of chain www.zzmerck.com Page 11/15...
  • Page 12 10. Assemble the brake cables a. Remove the outer casing and b. Thread the inner wire through brake lever put the inner wire into brake lever tighten the screw and insert it to outer casing c. Thread the inner wire through the hole on the caliper d.
  • Page 13 11. Assemble the front derailleur cable Thread the front derailleur cable outer casing through the guide on the side of the frame and up towards the end of the front boom. Thread the inner wire through the outer casing and then through the cable guide tube. www.zzmerck.com Page 13/15...
  • Page 14: Assemble The Seat

    12. Assemble the rear derailleur cable Thread the rear derailleur cable outer casing through the guide on the side of the frame and up towards the end of the front boom. Thread the inner wire through the outer casing and then through the cable guide tube. 13.
  • Page 15 14. Assemble the pedal and mirror Pay the attention to Left and Right pedal Mount the mirros in the top of the handlebars 15. Mount the flagpole and put the end of cables in the production cover 16. Finish the assembly www.zzmerck.com Page 15/15...
