Summary of Contents for iGenix IG9813

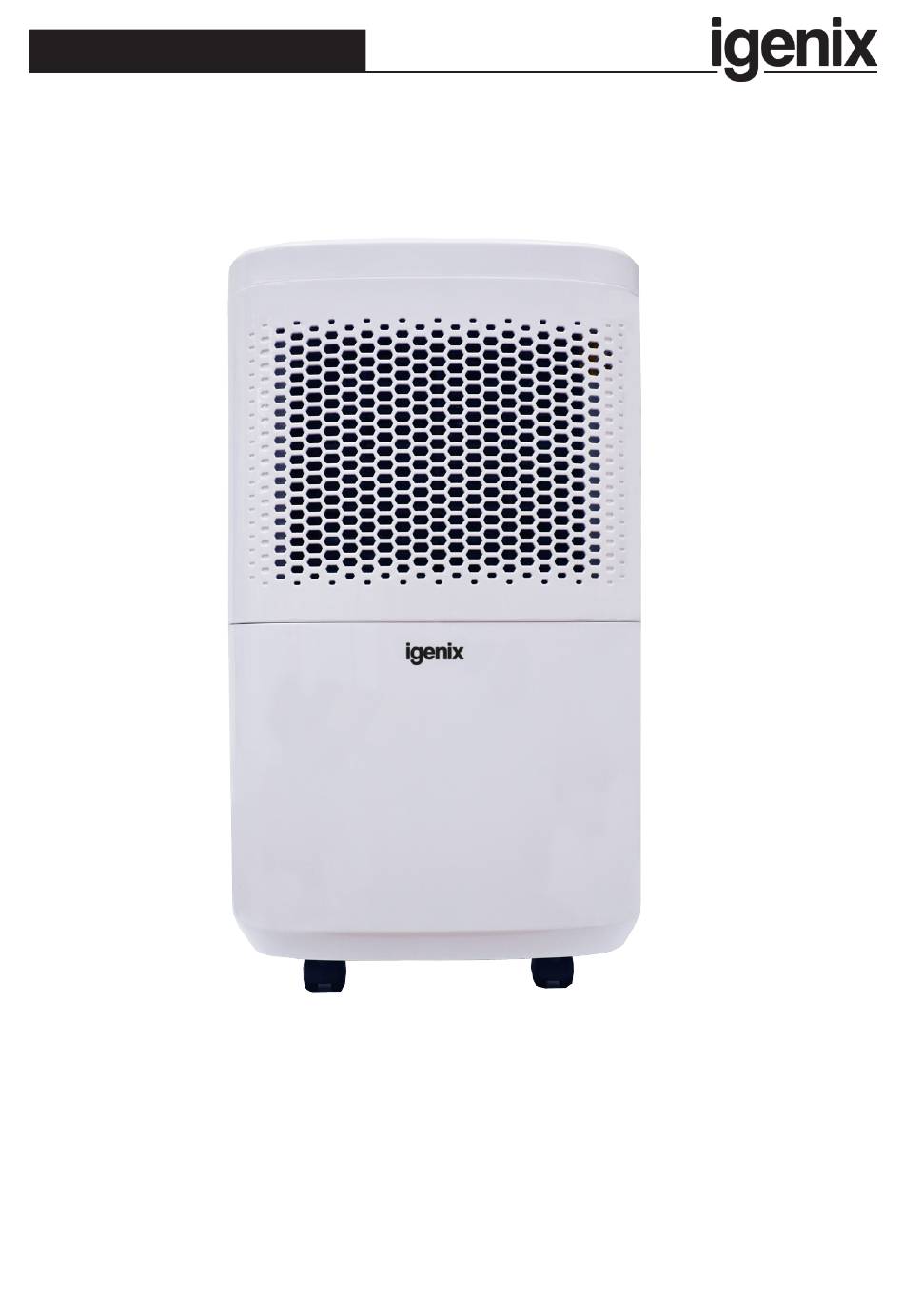

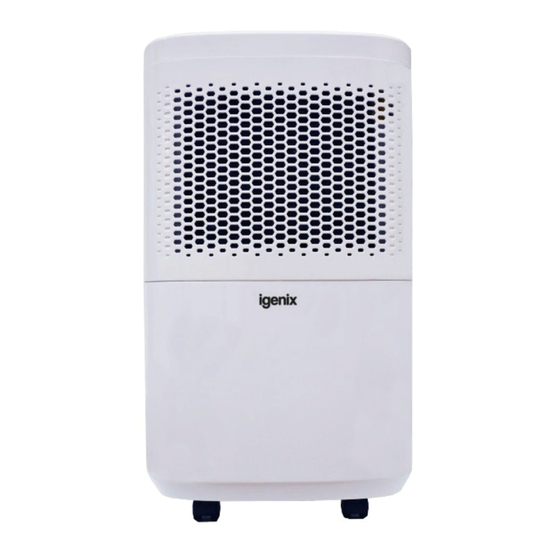

- Page 1 USER MANUAL 12 Litre Dehumidifier White IG9813 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ..........2-4 Intended Use ................4 Specification .................5 Appliance Overview ..............5 Control Panel ................6 Operating Instructions ............6-8 Cleaning and Maintenance ..........9-10 Trouble Shooting Guide ............10 Fuse Replacement ..............11 Disposal Information ............... 11 Terms and Conditions and Warranty Information ..12-13 IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy... - Page 3 • Ensure that the air inlets and outlets are not blocked or covered. • Avoid touching any moving parts of the unit. • Never insert fingers, pencils or any other objects through the guards. • Do not place the unit too close to curtains or other objects - min 40cm.
-
Page 4: Intended Use
• Children shall not play with the appliance. • This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Specification
Net Weight 12Kg Product Dimensions (mm) (H)460 x (W)280 x (D)240 Brand Igenix Product Code IG9813 Product Description Hermetically Sealed Equipment Contains Fluorinated Greenhouse Gases R-134A (HFC 134a) F Gas Mass (kg) 0.070 Equivalent Tonne of Carbon Dioxide (ET CO2) 0.100... -
Page 6: Control Panel
CONTROL PANEL Ioniser indicator Child Lock Sleep Mode Timer: Power On/ 1-24 Hour Off Standby Humidity Setting: RH30% to RH80% Fan Speed: High/Low Frost Illuminating LED Protection Display - showing Relative Humidity Full Water Tank Dehumidifying Modes: Indicator Manual, Auto, High, Dry Clothes OPERATING INSTRUCTIONS Appliance Location... - Page 7 Functions Dehumidify Mode: Manual: Within this mode you can manually select the desired humidity level (between RH30% to RH80%) and Fan Speed (High/Low). Auto: This mode will automatically find the most efficient and economical way to run; according to the relative humidity and ambient temperature of the room. High: This mode will operate in a high working status with the fan at a high speed to dehumidify a room very quickly.
- Page 8 • Once function is selected, press the Timer Button to select the desired amount of time you would like the appliance to switch off in (the LED display will show the hours, continue to press the button until correct number of hours reached) •...
-
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE Always switch off the unit and unplug from the mains socket before cleaning or performing any maintenance. When not in use for long periods it is also advisable to remove the plug from the power socket. Wipe the outside of the unit with a soft damp cloth. You may use a mild detergent if necessary. Dry with a cloth. -
Page 10: Trouble Shooting Guide
End of Season Maintenance • Switch off unit and unplug from mains socket. • Empty and clean the water tank. • Clean the unit and the filters as per cleaning procedure above. • Cover the unit and keep it in a dry place. Important: Depending on usage and the area in which it is being used, the following procedures are advised to be done more frequently: 1. -
Page 11: Fuse Replacement
MAINS PLUG FUSE REPLACEMENT Fuse Replacement (Class I) This appliance must be earthed. Remove the central screw on the plug and open the shell. Take out the fuse and replace with a new fuse of the same Amp. Install the shell again and tighten the screws. DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household... -
Page 12: Terms And Conditions And Warranty Information
lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects. - Page 13 Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk To register your product, please complete all sections of the form below and return to us at the following address: lgenix, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR.
- Page 16 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
