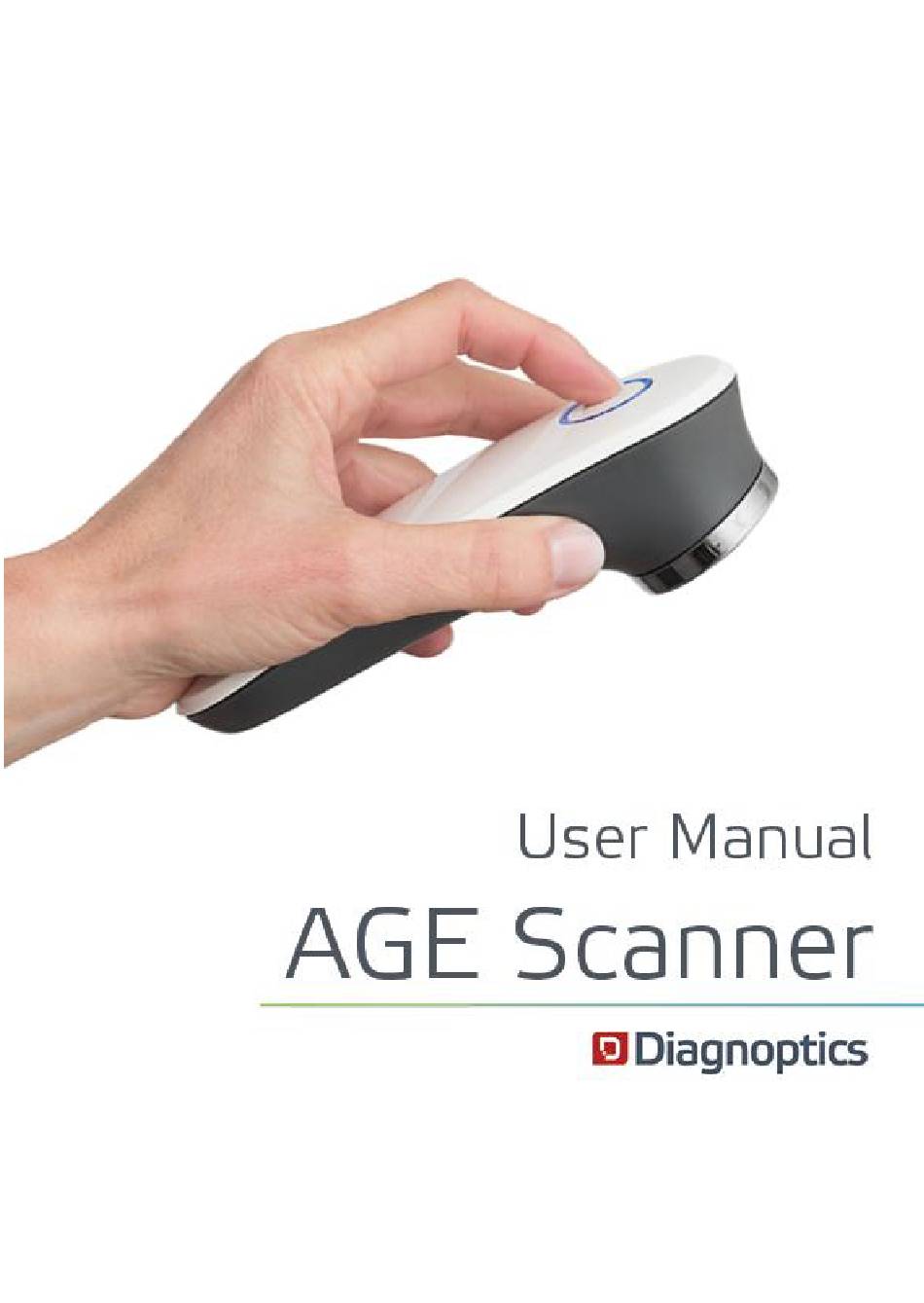

Diagnoptics AGE Scanner User Manual
  1. Manuals
  2. Brands
  3. Diagnoptics Manuals
  4. Measuring Instruments
  5. AGE Scanner
  6. User manual

Diagnoptics AGE Scanner User Manual

Hide thumbs Also See for AGE Scanner:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGE Scanner and is the answer not in the manual?

Questions and answers

Related Manuals for Diagnoptics AGE Scanner

Summary of Contents for Diagnoptics AGE Scanner

  • Page 2 Advanced Glycation Endproducts (AGEs) in human skin tissue. The process of accumulation of AGEs in tissue is commonly known as glycation. The AGE Scanner is used with either the myAGEnow, BodyAge or SkinAge app on your mobile phone or tablet (Android, iOS) through a Bluetooth® connection.

  • Page 3: Getting Started

    Turn on the Bluetooth® function of your mobile device. 1.3 Prepare your AGE Scanner Before the AGE Scanner can be used the batteries need to be placed. To open the battery compartment, slide off the battery cover located at the bottom of the device by applying a gentle pressure on the embossed ring.

  • Page 4: Bluetooth® Compatibility

    2 minutes. 1.4 Switching off the AGE Scanner The AGE Scanner can be switched off by briefly pressing the button on top of the device twice in quick succession. The AGE Scanner will also switch itself off automatically after approximately 2 minutes of inactivity.
  • Page 5 2 Apps The following free apps are available for operating the AGE Scanner. The app of your choice can be downloaded from the Apple® App Store® for your iPhone® or iPad® and from the Google Play™ Store for your Android phone or tablet.

  • Page 6: Performing Measurements

    8cm (3 inches) from the elbow. See the illustrations on the next page.  The silicon ring of the measurement head of the AGE Scanner is pressed gently to the skin evenly on all sides such that ambient light cannot enter the measurement window.
  • Page 7 Measurement locations in triple mode (most accurate result). The distance between the three measurement locations is about 1-2 cm. : Measurement location in single mode (fastest result):...

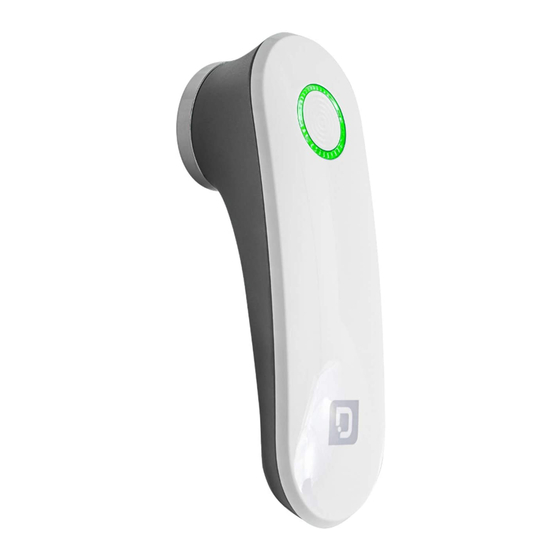

  • Page 8 3.3 LED ring The color of the LED ring around the button of the AGE Scanner changes depending on the status of your device. Please find below an overview of the...
  • Page 9 Open the Diagnoptics service app on your mobile device. Select the serial number of the AGE Scanner you want to update from the list of available devices. After connecting, the app will check if a new firmware version is available.
  • Page 10 (green or blue LED ring) causing the update to fail, disconnect and close the app. Then turn on the AGE Scanner and wait for the LED ring to turn on. Press and hold the button for 30 seconds until the LED ring turns purple.

  • Page 11: Cleaning Instructions

    5.1 Cleaning instructions 5.1.1 Measurement window With proper storage and usage the AGE Scanner hardly requires cleaning apart from dust removal. To ensure an accurate measurement result the measurement window can be cleaned with a cotton swab or a pre-moistened lens cleaning wipe, ideally using a standard 70% alcohol solution.

  • Page 12: Bluetooth Connection

    6.2 Warning messages Low battery When the AGE Scanner is unable to perform a measurement due to low battery power the ring around the button of the device turns red and a low battery warning indication is shown in the App. Please replace the batteries (section 1.2) and restart the device.
  • Page 13 External error An ‘External error’ is displayed in the app when the measurement is out-of- bounds. When the ‘External error’ persists, your device may need to be re- calibrated. Please contact Diagnoptics for support.
  • Page 14 7 AGE Scanner specifications 7.1 Technical specifications • Operation Continuous indoor operation • Power 3 VDC from two exchangeable AAA batteries • Dimensions Width: 60mm, Depth: 170 mm, Height: 55 mm • Weight 150g • Operating Conditions Indoors Temperature range: Lower limit 10°C - Upper limit + 30°C...

  • Page 15: Regulatory And Safety Notices

    8.3 European Union Declaration of Conformity with Regard to the EU Directive 1999/5/EC R&TTE. DiagnOptics Technologies B.V. is authorized to apply the CE Mark on device type MSC00100, thereby declaring conformity to the essential requirements and other relevant provisions of Directive EN 300 328 V1.8.1 and other applicable Directives.
  • Page 16 Ministry of Industry and Information Technology of the People's Republic of China. DiagnOptics Technologies B.V. is authorized to apply the SRRC approval code (the so called: ‘China MIIT ID’) on device type MSC00100, thereby declaring conformity to the SRRC provisions.
  • Page 17 • Do not dispose of your AGE Scanner with household waste • Disposal of the packaging and your AGE Scanner should be done in accordance with local regulations. • Batteries are not to be disposed of in the municipal waste stream and require separate collection.

  • Page 18: Liability And Warranty

    (a) improper use of the AGE Scanner, (b) unauthorized modification of the AGE Scanner, (c) fault or negligence by the user, (d) breach of any warranty or other...
  • Page 19 Manufactured by: DiagnOptics Technologies B.V. Aarhusweg 4-9 9723 JJ Groningen The Netherlands support@diagnoptics.com www.diagnoptics.com Date of issue 06-2021 Doc. no.: DI-F-01-009.3...
