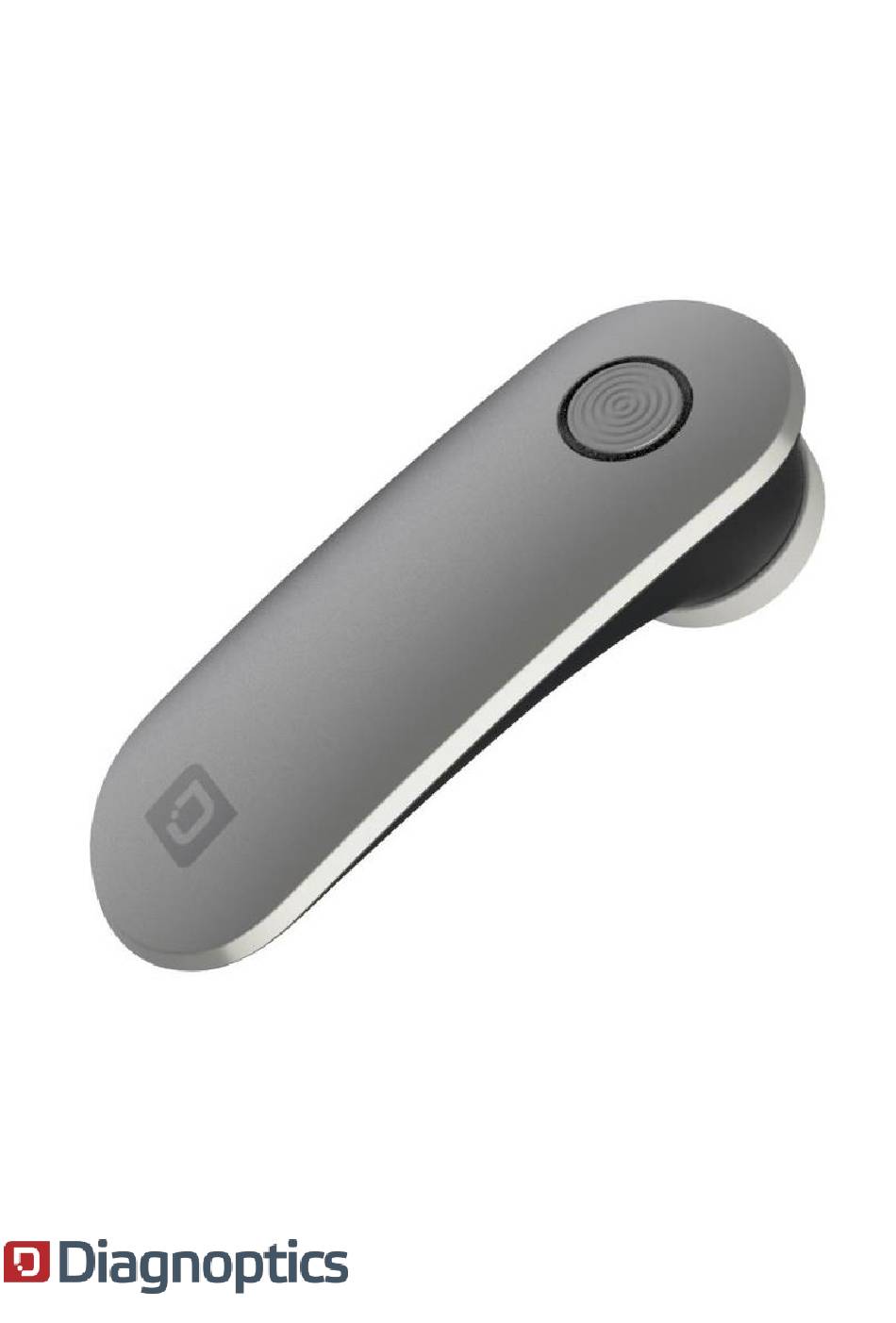

- Page 1 AGE Scanner User Manual...
- Page 2 Introduction The ‘AGE Scanner’ developed by Diagnoptics is an optical instrument based on measurements of fluorescence of advanced glycation endproducts (AGE’s) in the human skin, to provide the amount of AGEs in skin tissue. The ‘AGE Scanner’ uses a light source in a specific ultraviolet-blue wavelength range and photodiodes with optical filters sensitive in the concomitant fluorescent wavelength ranges.
-
Page 3: Getting Started
AAA Batteries (2x) 1.2 (Re)Place batteries Before the AGE Scanner can be used, the batteries have to be installed. To access the battery compartment, slide the battery cover located at the bottom of the device of with a gentle pressure on the embossed ring. Pay attention to the polarity of the batteries. - Page 4 1.3 Starting and connecting your device The AGE Scanner app is compatible with mobile devices running iOS and Android (version 4.3 or higher) operating systems and support Bluetooth 4.1 or higher (BLE). To get started: Install the AGE Scanner app from one of these locations: ...
-
Page 5: Performing The Measurement
The measurement window should always be kept clean (see chapter 4.1). 2.2 Performing the measurement Establish a Bluetooth® connection, see chapter 1.3. The AGE Scanner should be placed on the subject’s dominant forearm with a gentle pressure to avoid light from the surroundings entering the device. - Page 6 2.3 Problems during the measurement When the AGE Scanner is unable to successfully perform a measurement it will abort the measurement and the app will display an error indication. There are three error indications: • Measurement setup error • Low signal error •...
-
Page 7: Update Your Device
3 Update your device The AGE Scanner can receive new firmware by means of two methods, Over The Air (OTA) through the Bluetooth® connection or by inserting a Micro-SD card containing the firmware update. 3.1 Over The Air (OTA) An update can be delivered by the app running on the connected device. -
Page 8: Cleaning And Maintenance
No changes should be made to the system by the user! This system does not contain parts that can be serviced by the user. Replacement parts are available for the skin interface and bayonet ring To order a replacement part, please contact Diagnoptics. -
Page 9: Troubleshooting
5 Troubleshooting... -
Page 10: Product Specifications
6 Product specifications 6.1 Technical specifications • Operation Continuous operation • Power 3 VDC from exchangeable AAA battery • Output UV-A light λ = 375nm E = 7,81E-01 W/m @ 0,2m Blue light λ = 460nm E = 1,83E-01 W/m @ 0,2m Green light λ... -
Page 11: Regulatory And Safety Notices
7.3 European Union (EU) Declaration of Conformity with Regard to the EU Directive 1999/5/EC R&TTE. Diagnoptics Technologies B.V. is authorized to apply the CE Mark on, device type MFR00101, thereby declaring conformity to the essential requirements and other relevant provisions of Directive EN 300 328 V1.8.1 and other applicable Directives. - Page 12 Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572. 在一个X显示所有的情况下，AGE Scanner 使用允许的豁免。 In all cases where an X is shown, AGE Scanner uses an allowable exemption.
-
Page 13: Important Safety Instructions
Maintenance and repairs should only be carried out by Diagnoptics or authorized representatives, ship in original package. • Do not use your AGE Scanner if there is visible damage and/or when the device has sharp edges.. • Substances in this product and its batteries may harm the environment or cause injury if handled and disposed of improperly. -
Page 14: Disposal And Recycling Information
• Do not dispose of your AGE Scanner product with household waste • Disposal of the packaging and your AGE Scanner product should be done in accordance with local regulations. • Batteries are not to be disposed of in the municipal waste stream and require separate collection. -
Page 15: Liability And Warranty
“Damage”) if or where the damage is caused by or arises from any instance regarded as(a) improper use of the AGE Scanner, (b) unauthorized modification of the AGE Scanner, (c) fault or negligence by the user, (d) breach of any warranty or other obligation by the user or (e) invalid or incorrect conclusions, and any consequences thereof, drawn by third parties from the measurement results provided by the AGE Scanner. - Page 16 Manufactured by: Diagnoptics Technologies B.V. Aarhusweg 4-9 9723 JJ Groningen The Netherlands E-mail: mail@diagnoptics.com WWW: www.diagnoptics.com Doc. no.: DI-F-01-008.0...
