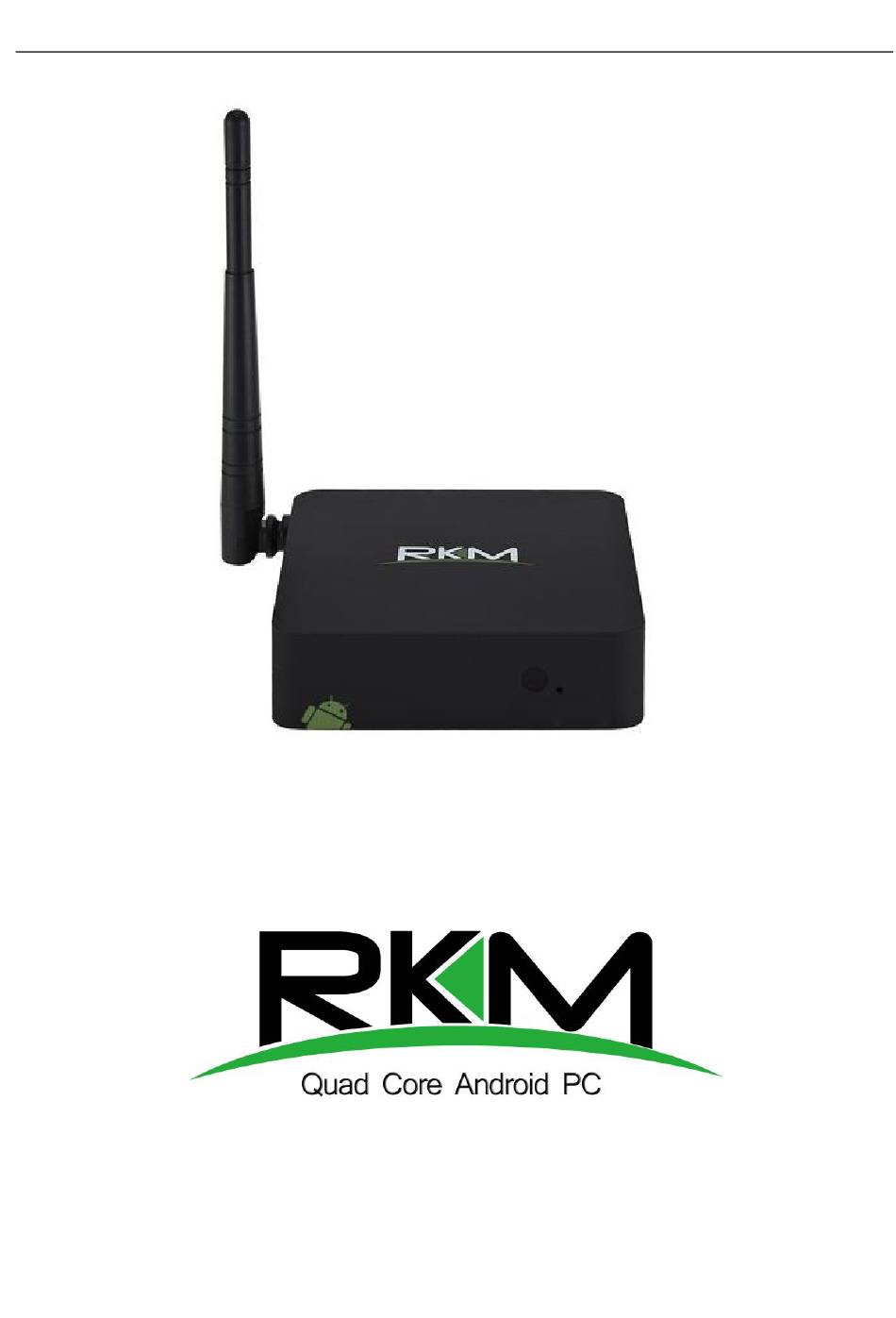

- Page 1 RKM MK902S User Manual MK902S User Manual Shenzhen Rikomagic Tech Corp.,Ltd Page0...
-
Page 2: Table Of Contents
RKM MK902S User Manual Table of Contents Declaration....................................2 1. Device hardware introduce.............................. 3 1.1 Connector................................. 3 1.2 Device connection Instruction..........................3 2. Boot state.................................... 4 3. Main Screen Introduction..............................4 3.1 Add or remove shortcut ............................5 3.2 Function column..............................5 3.3 Application................................ -
Page 3: Declaration
RKM MK902S User Manual Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. -
Page 4: Device Hardware Introduce
Take out the device insert into your TV HDMI port through HDMI cable, make sure TV setting is HDMI input mode.(Refer to TV set user manual). b) Charge MK902S by power adapter. c) Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host connector, if only mouse plugged, the device will provide soft keyboard during operation;... -
Page 5: Boot State
RKM MK902S User Manual 2. Boot state After powered around 10 seconds, the boot image will appear first then access to boot animation. After around 30 seconds, device would access to main screen. 3 Main Screen Introduction Page4... -
Page 6: Add Or Remove Shortcut
RKM MK902S User Manual 3.1 Add or remove shortcut If you want to add some APP shortcut onto the desktop, just click then access to APP screen, There will occur a green tick on the right corner of the selected APP, back to desktop, the corresponding app shortcut icon will appear on the main menu. -
Page 7: Application
RKM MK902S User Manual 3.3 Application Click to pop up all the installed APP and setup tools icon. 1) If the preloaded APP is beyond the first page, drag the cursor towards right or rolling the mouse to the second page to find other Apps;... -
Page 8: Wifi Setting
RKM MK902S User Manual 4.1 WIFI Setting Once turn on WiFi, the MK902S will auto search available wireless router within 20 meters, user just choose a router and input correct password to connected network. 4.2 Ethernet Setting If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB LAN adapter) to setting Ethernet. -
Page 9: Pppoe Setting
For exchange data between the MK902S and PC. Operate steps： Equipment connection: Connect with computer through USB cable, please note you MUST plug into USB Slave port of the MK902S, which is for computer connecting. 4.7 Sound This is for Sound settings;... -
Page 10: Storage
RKM MK902S User Manual 4.10 Storage In this option, user could view local storage space and external storage space, besides, user even can uninstall or format storage equipment. Notice: System divided the whole storage into seven partitions, only two partitions visible, the other five partition has been occupied by Android system. -
Page 11: Date & Time
RKM MK902S User Manual Reset: Reset to factory settings.(Pls backup data first before reset) 4.15 Date & time Since there is no battery inside, date and time set by manual can′t be saved, Suggest setting to network synchronization time, as long as the network connected, the date and time will be with the network synchronization. -
Page 12: Install/Uninstall Apps
RKM MK902S User Manual options, if no need execute operation, just click “cancel”. 6. Install/Uninstall Apps MK902S supports many commonly used third-party Apps. You can install or uninstall Apps freely; there are two methods available for installing Apps. 6.1 Online installation Please login Google Play store or other Android marketing to download Apps (User should have Gmail account if download from Google play store);... -
Page 13: Switch Input Methods
From below screen, select corresponding favorite IME(Input method editor) 12. System recovery/update If your MK902S has following issues, please solve these issues by recovery/update methods. 1. If you need update to the latest firmware, 2. After boot, there is no signal;... - Page 14 RKM MK902S User Manual 12.1.2 Connect MK902S with computer. 1. Prepare USB cable and plug into PC USB port first(don't connect with USB slave now) Page13...
- Page 15 RKM MK902S User Manual 2. Prepare a thin metal stick, press the recover button by the stick according below method. 3. Don’t loose the stick, at same time, plug the USB cable to USB slave port of the MK902S, after 3-5s,loose the stick.
- Page 16 RKM MK902S User Manual Choose the options as picture display, click “Browse”, find out “USB Driver”, click “Next” to install. If installation finished, computer will pop up below window, click “Finish” to finish. 12.1.4 How to recovery/update by RKBatch Tool After installation, the “connect device”...
- Page 17 RKM MK902S User Manual Then Click “restore” (the third button of below picture) for recovery, as below. Page16...
-
Page 18: Recovery/Update On Windows Win7 System
12.2 Recovery/update on Windows WIN7 system 12.2.1 Download FW and RKBatch Tool Pls refer to 12.1.1. 12.2.2 Connect MK902S with computer through USB slave. Pls refer to 12.1.2 12.2.3 Install the USB driver. Press “computer” with right key, computer---management--device management--other device, pls check below picture. - Page 19 RKM MK902S User Manual Double click unknown device. Press update driver,Click browse for driver software on your computer. And choose the correct driver. If your computer is WIN7 32bit, choose x86--win7; if it is WIN7 64bit, choose x64—win7. Page18...
- Page 20 RKM MK902S User Manual Press next, will pop up below window, Click on the image below red circle option.Click install. Till below screen appear, means driver installed successfully. Page19...
- Page 21 RKM MK902S User Manual 12.2.4 How to upgrade or restore by RKBatch Tool. Pls refer to 12.1.4. Shenzhen Rikomagic Tech Corp.,Ltd Add: 7F Bao’de Industrial Center, Lixin South RD,Fuyong Street, Bao'an,Shenzhen,China,518103 Official website: www.rikomagic.com Tel: 86-755-29981801; Fax: 86-755-27317052 After service: service@rikomagic.com...
