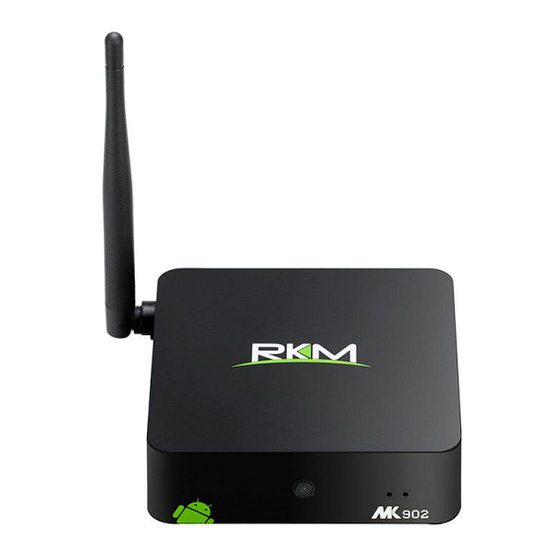

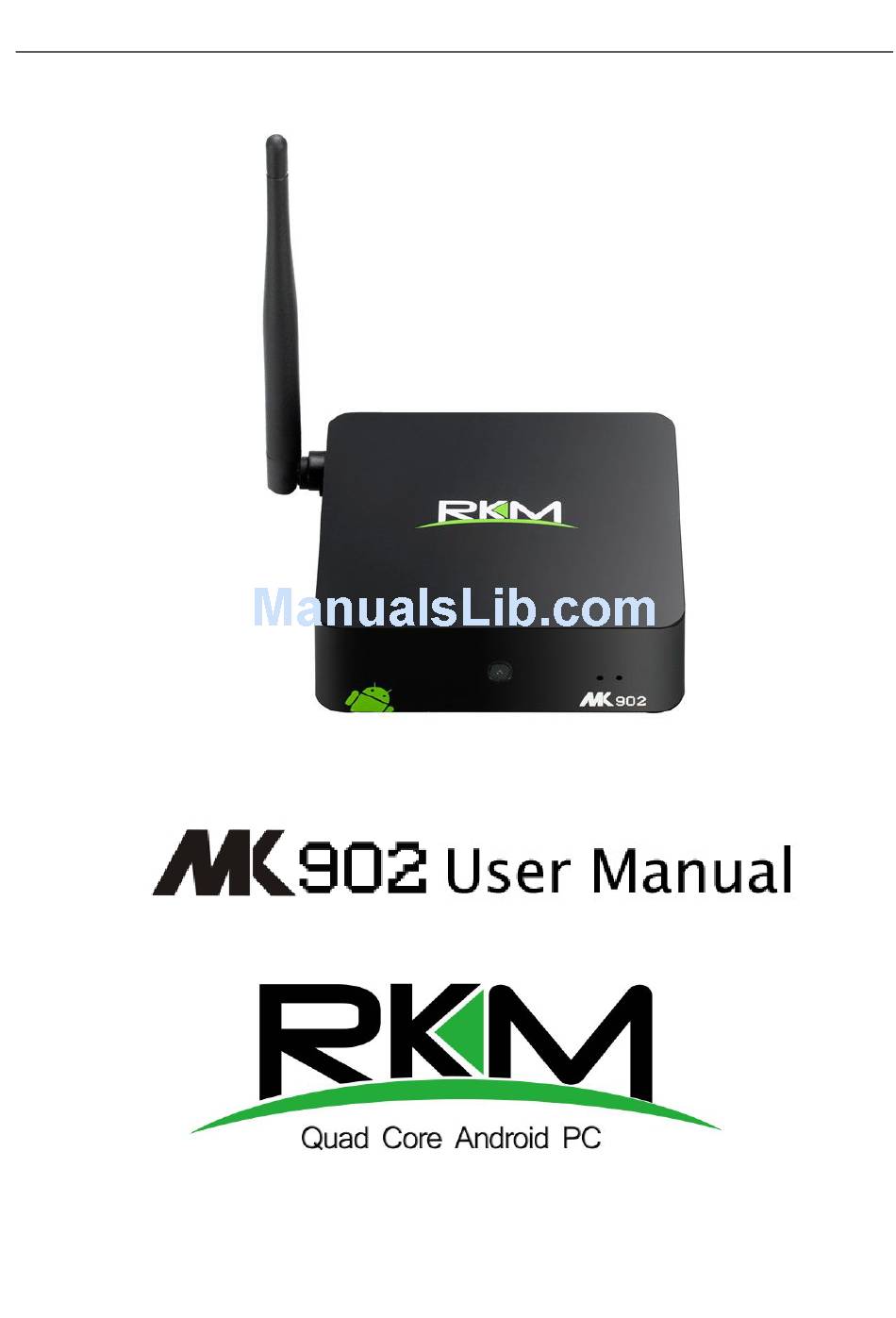

- Page 1 RKM MK902 User Manual Shenzhen Rikomagic Tech Corp.,Ltd...
-
Page 2: Table Of Contents
RKM MK902 User Manual Table of Contents Declaration....................................2 1. MK902 hardware introduction............................3 1.1 Connector................................. 3 1.2 Device connection Instruction..........................3 2. Boot state.................................... 4 3 Main Screen Introduction..............................4 3.1 Move/Delete desktop icon............................. 5 3.2 Function column..............................6 3.3 Status bar................................. -
Page 3: Declaration
RKM MK902 User Manual Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. -
Page 4: Mk902 Hardware Introduction
Take out the device insert into your TV HDMI port through HDMI cable, make sure TV setting is HDMI input mode.(Refer to TV set user manual). b) Charge MK902 by power adapter. c) Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host connector, if only mouse plugged, the device will provide soft keyboard during operation;... -
Page 5: Boot State
RKM MK902 User Manual Keep holding left button to drag icon or copy/paste file. 2. Boot state After powered around 10 seconds, the boot image will appear first then access to boot animation. After around 30 seconds, device would access to main screen. -
Page 6: Move/Delete Desktop Icon
RKM MK902 User Manual 3.1 Move/Delete desktop icon Long-press any icon on the main menu, you could put it in any position as you like, at the same time you could put the other apps shortcut to the desktop. Long press the icon and move it to the right above “×” and loosen to delete. -
Page 7: Function Column
RKM MK902 User Manual 3.2 Function column Return button: click to return to previous directory; Homepage button: click it anytime to return to main menu; Program button: Click to check all the running program; Volume decrease button: Click to decrease volume;... -
Page 8: Status Bar
RKM MK902 User Manual Hide icon: click for hide this function bar. Search button: Located in the top left corner of the main menu, click this icon to pop up webpage screen, user can input any website here. Program tools button: Located in the right top corner of the desktop, click this icon to pop up all the apps which has been installed. - Page 9 RKM MK902 User Manual 1) If the preloaded APP is beyond the first page, drag the page towards right or rolling the mouse roller to the second page to find other Apps; 2) If you want, you can long-press the APP and drag onto the desktop.
-
Page 10: Settings
Access to setting to pop up below screen. 4.1 WIFI Setting Once turn on WiFi, the MK902 will auto search available wireless router within 20 meters, user just choose a router and input correct password to connected network. 4.2 Ethernet Setting If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB LAN adapter) to setting Ethernet. -
Page 11: Bluetooth
For exchange data between the MK902 and PC. Operation steps： Equipment connection: Connect with computer through USB cable, please note you MUST plug into USB Slave port of the MK902, which is for computer connecting. 4.7 Sound This is for Sound settings;... -
Page 12: Storage
RKM MK902 User Manual 4.10 Storage In this option, user could view local storage space and external storage space, besides, user even can uninstall or format storage equipment. Notice: System divided the whole storage into seven partitions, only two partitions visible, the other five partition has been occupied by Android system. -
Page 13: Backup & Reset
RKM MK902 User Manual 4.14 Backup & reset Backup: Avoid lost some important APPs during reset or update/recovery system, t’s better chose this function for backup. Reset: Reset to factory settings.(Pls backup data first before reset) 4.15 Date & time Since there is no battery inside, date and time set by manual can′t be saved, Suggest setting to... -
Page 14: Install/Uninstall Apps
Long-press a file or folder to pop-up a menu, including: Copy, Delete, Move, Paste, Rename options, if no need execute operation, just click “cancel”. 6. Install/Uninstall Apps MK902 supports many commonly used third-party Apps. You can install or uninstall Apps freely; there are two methods available for installing Apps. 6.1 Online installation Please login Google Play store or other Android marketing to download Apps (User should have Gmail account if download from Google play store);... -
Page 15: Web Browsing
RKM MK902 User Manual 8. Web Browsing After connected network, user can access the webpage screen through the system browser. New opened webpage will be shown on the screen as tag, click “+” to add new webpage, click “x“ to close the webpage. -
Page 16: System Recovery/Update
RKM MK902 User Manual 12. System recovery/update If your MK902 has following issues, please solve these issues by recovery/update methods. 1. If you need update to the latest firmware, 2. After boot, there is no signal; 3. There is only boot screen;... - Page 17 1. Prepare USB cable and plug into PC USB port first(don't connect with USB slave now) 2. Prepare a thin metal stick, press the recover button by the stick according below method. 3. Don’t loose the stick, at same time, plug the USB cable to USB slave port of the MK902, after 3-5s,loose the stick.
- Page 18 RKM MK902 User Manual 12.1.3 USB driver installation. There will pop up a guide window to install new driver. Select “next” Choose the options as picture display, click “Browse”, find out “USB Driver”, click “Next” to install. If installation finished, computer will pop up below window, click “Finish” to finish.
- Page 19 RKM MK902 User Manual 12.1.4 How to recovery/update by RKBatch Tool After installation, the “connect device” icon on the “batch tool” will changed to green, as below: Then Click “restore” (the third button of below picture) for recovery, as below.
-
Page 20: Recovery/Update On Windows Win7 System
RKM MK902 User Manual This procedure will take around 3minutes, please wait patiently, during recovery/upgrade, don’t remove the USB cable.Till below screen appeared, means recovery is successful. 12.2 Recovery/update on Windows WIN7 system 12.2.1 Download FW and RKBatch Tool Pls refer to 12.1.1. - Page 21 RKM MK902 User Manual 12.2.2 Connect MK902 with computer through USB slave. Pls refer to 12.1.2 12.2.3 Install the USB driver. Press “computer” with right key, computer---management--device management--other device, pls check below picture. Double click unknown device. Press update driver,Click browse for driver software on your computer. And choose the correct...
- Page 22 RKM MK902 User Manual driver. If your computer is WIN7 32bit, choose x86--win7; if it is WIN7 64bit, choose x64—win7. Press next, will pop up below window, Click on the image below red circle option.Click install. Till below screen appear, means driver installed successfully.
- Page 23 RKM MK902 User Manual 12.2.4 How to upgrade or restore by RKBatch Tool. Pls refer to 12.1.4. Shenzhen Rikomagic Tech Corp.,Ltd Add: 7F Bao’de Industrial Center, Lixin South RD,Fuyong Street, Bao'an,Shenzhen,China,518103 Official website: www.rikomagic.com Tel: 86-755-29981801; Fax: 86-755-27317052 After service: service@rikomagic.com...
