Page 1

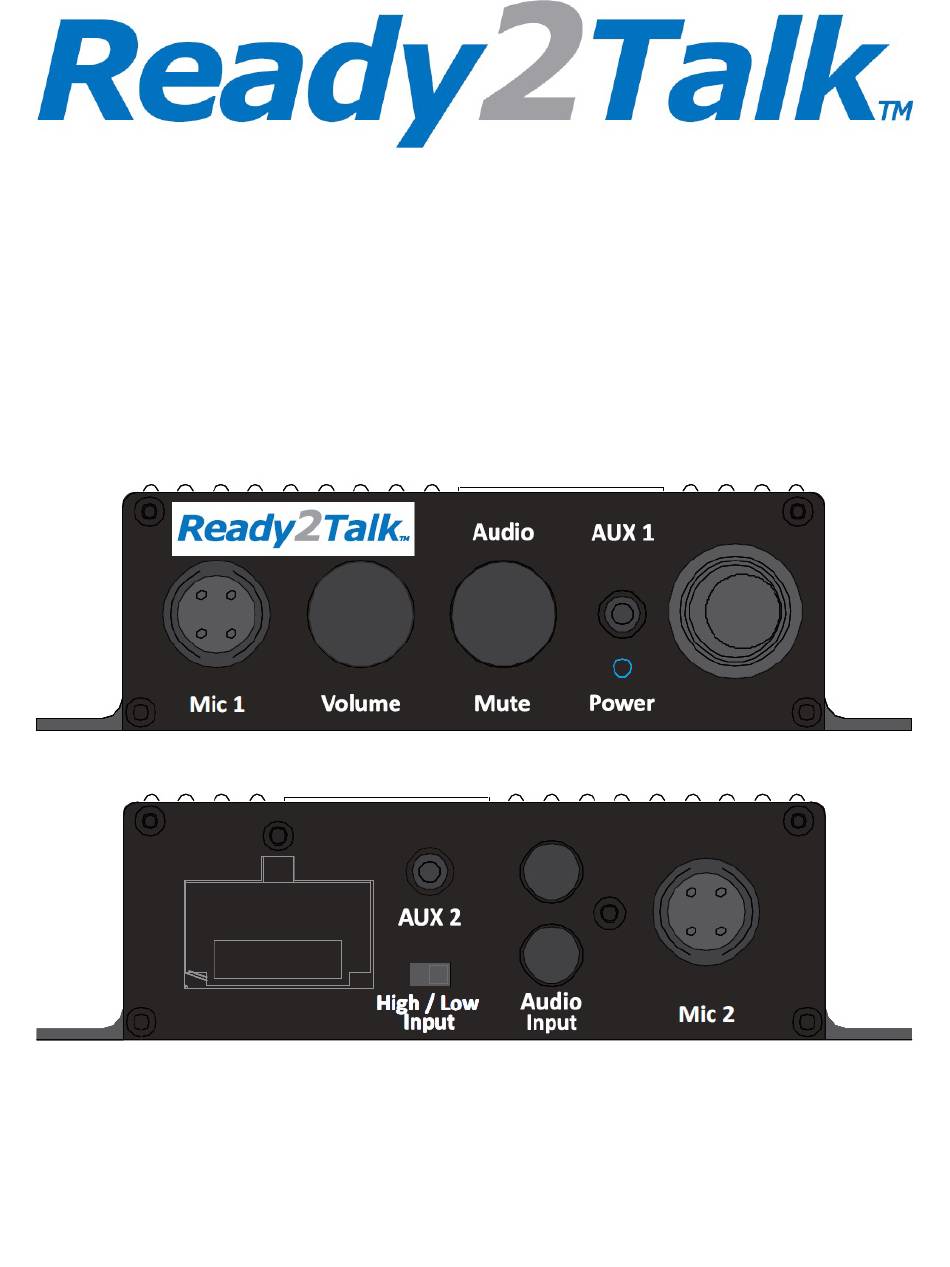

PA 64 Installation & Operation Manual The PA for ALL applications!
Page 2
If done, the PA 64 will not function and it may cause damage to the PA 64 and / or the additional amplifiers. If you need more amplification than the PA 64 offers, we have other PA options to suit.
Page 3
Now with the important warnings out of the way… the fun stuff. The PA 64 is designed to be the best PA system for all applications, offering a real amplifier with 4x50Watts (peak), solid state variable mic / music muting from both the rear RCA input and the dual front / rear 3.5mm AUX input.
Page 4
Note: Set Input Switch on PA 64 to “Low” Note: When using RCA cables the stereo’s speaker wires are not connected to the PA 64 or the speakers, just like an aftermarket amp. Diagram 2 - Connection to OEM Factory Stereo Speaker Wires Use RCA to speaker wire pig tails included in the box.
Page 5
PA 64 and repairs / replacement will not be covered by warranty. Note: All “Speaker Connection Options” are drawn using 4 Ohm speakers and these diagrams will offer a load range from 4 – 8 Ohm to the PA 64 amplifier. When in doubt… please call 1 888 724-5351...
Page 6
Speaker Connection Options - Based on 4 Ohm Speakers Note: To lower the front speaker level see, “Fine Adjustment” on page 10 Normal 4 Speaker Option 6 Speaker Option with Door Speakers 8 Speaker Option with Door Speakers...
Page 7
8 Speaker Option 10 Speaker Option with Door Speakers...
Page 9
PA 64 Start Up and Initial Testing 1. Connect your microphone to the “Mic 1” on the front of the PA 64 and / or “Mic 2” on the back. 2. Turn on the vehicle, then the PA 64 power switch (the power light will come on), turn on the microphone and talk in to the mic.
Page 10
Factory set fully clockwise for full front channel volume, to reduce turn counter clockwise. Mic level. This allows the use of Ready2Talk Condenser mics OR other makes of Dynamic mics. Factory set at midpoint for R2T mics, fully counter clockwise for Dynamic Mics.
RME (Rear Mic Extension) A small flush mounted plate with a 4 pin mic socket and 20 ft. cable that connects to the back of the PA 64 and offers a second mic input when you want to have a step on guide.
Page 12
PA 64 Specifications - Ver.2 High Level Input 12VPP (peak to peak) Low Level Input 450mV – 4V AUX Input 400mV Microphone Input 100mV Current Drain (Max) 12V Constant Power (Yellow Wire) 10Amp 12V Switched Power (Red Wire) 250mA Total Current Drain at Normal Volumes 2.5Amp...
