Summary of Contents for Pineware PMF40

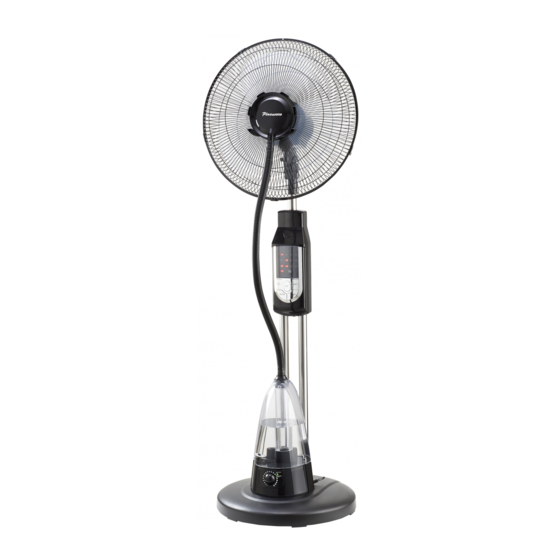

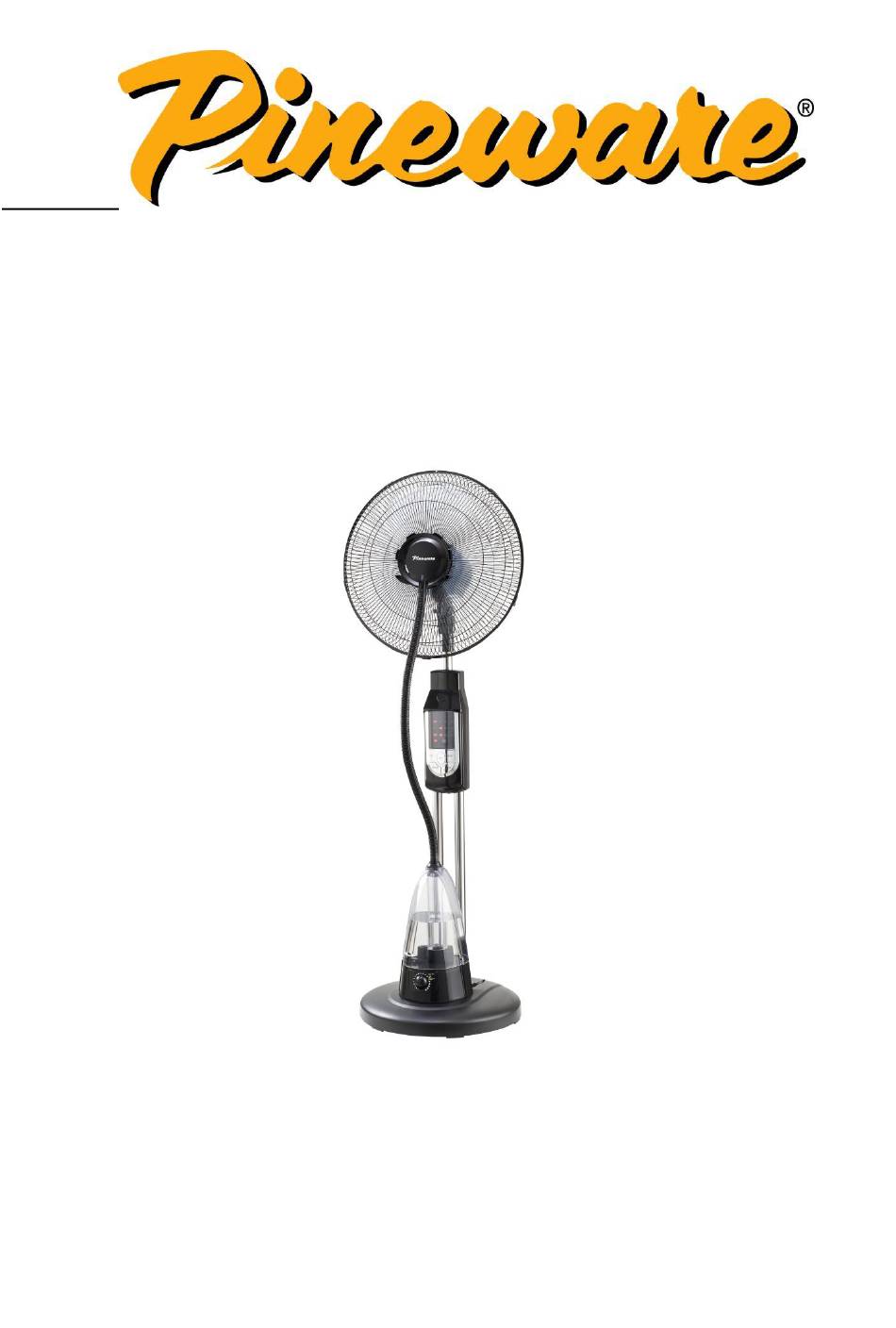

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. PMF40 PINEWARE MIST FAN...
- Page 2 • Close adult supervision is necessary when the fan is being used by children. • To unplug the 40cm Pineware Mist Fan, grasp the plug firmly and remove it from the main electrical supply. DO NOT PULL THE CORD.
- Page 3 COMPONENTS Main Housing Front Grill Fan blade nut Fan blade Rear grill lock nut Rear grill Motor body Tilt neck Switch housing Display & Control Panel Support poles Base Base weight Power cord & plug Water components Mist Outlet Mist delivery hose Water tank cap Water tank Humidifier indicator light...
- Page 4 ASSEMBLING YOUR FAN • Unpack all the parts of the fan and remove the packaging. • Insert the 2 Standing Bars into the Base with 2 screws in each bar. Note that each Standing Bar has 2 holes on one side. This side with the holes must be installed into the base. (Each Standing Bar comes with 2 screws already fitted.
- Page 5 • Place the Humidifier Power Base onto the Base. • Remove the Fan Blade Nut (2) and the Rear Grill Lock Nut (4) from the Motor Shaft Spindle (n). • Fit the Rear Grill (5) by positioning it onto the location pins (p). Secure the grill (5) to the Motor Body with the Grill Lock Nut (4).
- Page 6 • Place the Cap of Water Tank on the Water Tank. • Remove barrier cover of the remote control. • The 40cm Pineware Mist Fan is now ready to use. OPERATING THE MIST FAN • Remove the Water Tank from the Humidifier Power Base, turn it up-side down and you will see a small plastic cover.
- Page 7 • The user can adjust the tilt angle by pushing downward from the top of the Grill or by pulling upward from the bottom of the Grill. Caution: The 40cm Pineware Mist Fan should always be switched off when making this adjustment.
- Page 8 This will be deducted from any refund paid to the customer. HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG) JOHANNESBURG TEL NO. (011) 490-9600 CAPE TOWN TEL NO. (021) 552-5161 DURBAN TEL NO. (031) 792-6000 www.pineware.co.za...
