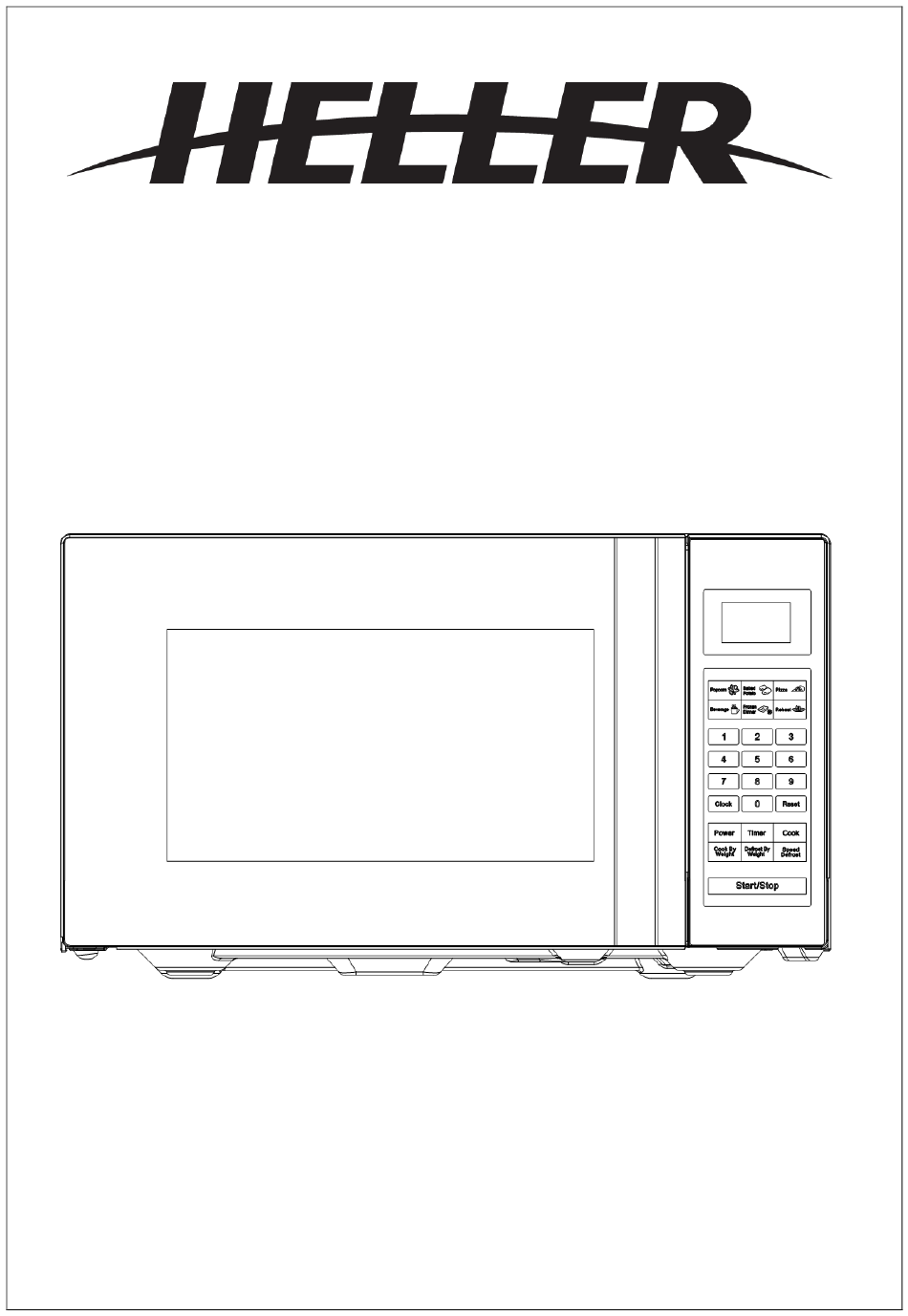

- Page 1 25L Digital Microwave User Manual Model Number: HMW25B IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference. For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. - Page 3 specifically designed to heat & cook food. It is not designed for industrial or laboratory use. Do not operate the oven when empty. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
- Page 4 establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Specifications
SPECIFICATIONS Power Consumption 220-240V/50Hz, 1400W(Microwave) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: H278.2 × W482.8 × D423.7mm Oven Cavity Dimensions: H212 × W340 × D363mm Oven Capacity: 25 Litres Cooking Uniformity: Turntable System Net Weight: Approx.12.8 kg BEFORE YOU CALL FOR SERVICE If the oven fails to operate: Check to ensure that the oven is plugged in securely. -
Page 6: Grounding Instructions
The socket must be readily accessible so that it can be easily unplugged in an emergency. It also must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock. The position of the oven shall be far from the TV, Radio or antenna to avoid disturbance, the distance at least more than 5m. -
Page 7: Microwave Cooking Principles
MICROWAVE COOKING PRINCIPLES Arrange food carefully. Place thickest areas towards outside of dish. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly. ... -
Page 8: Cooking Tips
COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. -
Page 9: Operation Of Control Panel
1. Door lock Microwave oven door must be properly closed in order for it to operate. 2. Viewing window Allow user to see the cooking status. 3. Rotating axis The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate. - Page 10 correct time. You must touch at least three numbers to set the clock (one for hour and two for minutes). c. Touch Clock key again. The system will enter clock state. Note: This is a 24 hour clock. When the oven is first plugged in or when power resumes after a power interruption, the display will show ENTER, CLOCK or TIME.
- Page 11 Example: To cook at P80 for 10 minutes. Steps Display After power-up, the colon flashes, then press Reset button once ： or wait for 30sec Set cooking time by pressing the number button of “1”,“0”,“0”,“0” 10:00 Touch Power once then select the desired microwave power by pressing number“...
- Page 12 Example: To speed defrost 0.2kg poultry with 2min50sec Steps Display After power-up, the colon flashes, then press Reset button once or wait ： for 30sec ： Touch Speed Defrost key Set defrost time by pressing the number button of “2”, ”5” .”0” 2:50 Start cooking by pressing Start/Stop, and LED will count down to show running time...
- Page 13 11. Setting “Defrost by Weight” You set the type and weight of food, and the oven automatically sets the defrost time. Example: To defrost 1.15Kg beef Steps Display After power-up, the colon flashes ,then press Reset button once or ： wait for 30sec Press Defrost By weight button Set defrosting weight by pressing the number button of “1 ”,“1”,“5”...
-
Page 14: Cleaning And Care
※ Setting “Pizza” Reheating a slice (or two thin ones) of leftover pizza: 1) In standby state or clock state, touch Pizza key once. 2) Touch Start/Stop key. ※ Setting “Beverage” For coffee cups (0.14 to 0.2kg per share): 1) On standby state or clock state, touch Beverage key once. 2) Enter number of cups by touching number pads from 1 to 4. -
Page 15: Customer Service
operating parts inside the oven, water should not be allowed to seep into the ventilation openings. Wipe the door and window on both sides; the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner. Do not allow the control panel to become wet.
