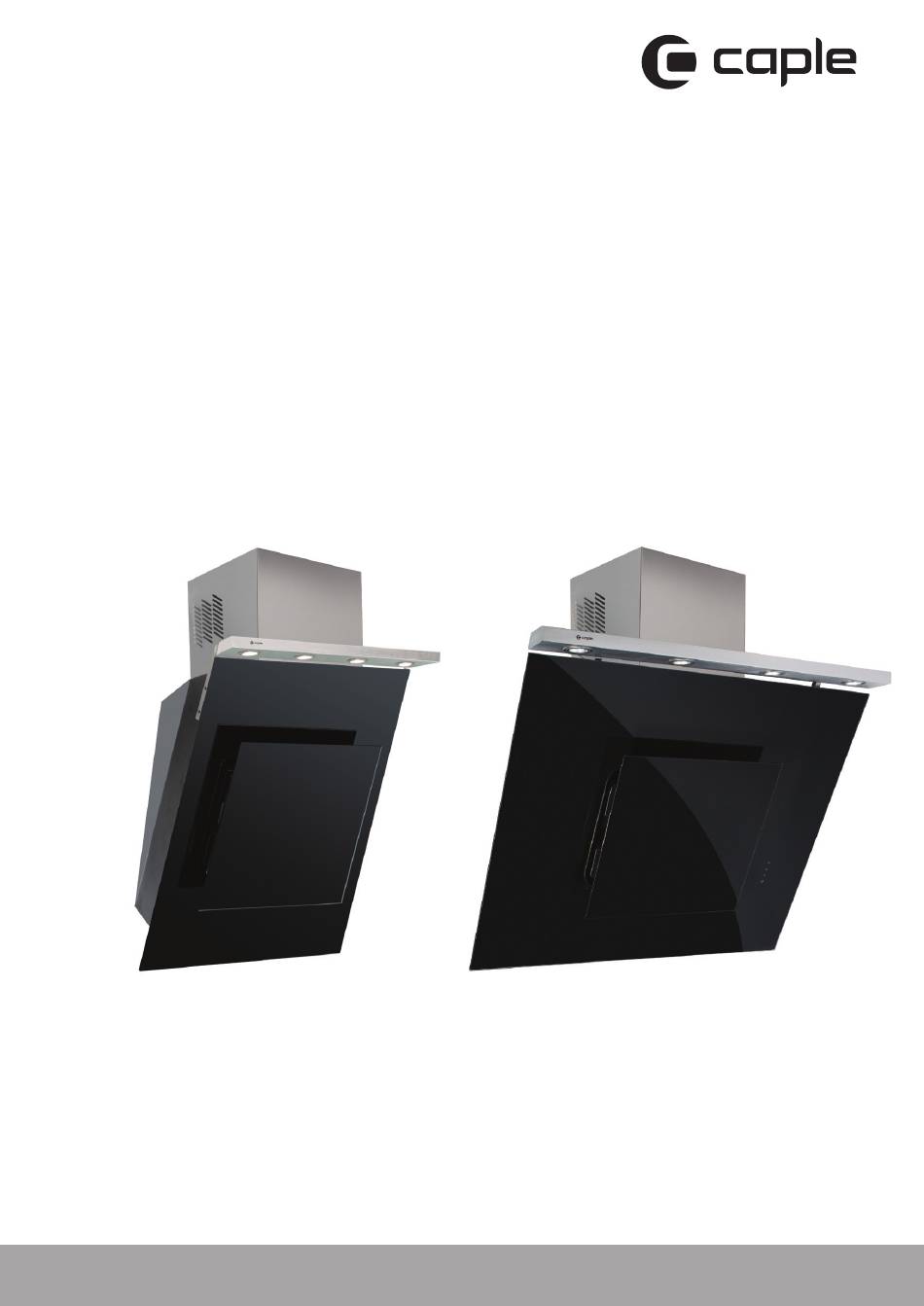

- Page 1 Wall chimney hood instruction manual AS611 / AS911 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
CONTENTS Introduction Safety precautions Environmental protection Instructions for installation Operating instructions Care and maintenance Troubleshooting Guarantee and servicing Caple Service contact details Please keep this instruction manual for future reference Instruction manual AS611 / AS911... -
Page 3: Introduction
INTRODUCTION Thank you for choosing this Caple extractor hood. To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple extractor should give you years of trouble-free use. - Page 4 This appliance must only be used for the purpose it is intended. Other types of use are not permitted and may prove dangerous. Caple will not be held liable for any damage caused by the incorrect use of the appliance.
-
Page 5: Safety Precautions
IMPORTANT Caple cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that Caple reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel. - Page 6 - This appliance is not intended for use by persons (including children) with reduced physical, sensory Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 7 - By clients in hotels, motels and other residential type environments. - To avoid all risk, if the power cable is damaged, it must only be replaced by a Caple appointed engineer. - Appliances can be used by persons with reduced...
- Page 8 N.I.C.E.I.C who will comply with the I.E.E and local regulations. Electrical information can be found on the rating plate. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
-
Page 9: Environmental Protection
For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product. Please keep this instruction manual for future reference Instruction manual AS611 / AS911... -
Page 10: Instructions For Installation
- The plastic cover is to protect the light assembly in transit. Once the light is fitted to the hood, the plastic cover is easily removed by slackening the screws and pulling the cover off. Please keep this instruction manual for future reference Instruction manual AS611 / AS911... - Page 11 - If a recirculating kit is required (Code: 2 x CAP55CF), you may purchase one through your dealer or visit www.caple.co.uk. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 12 - Install a roof or wall cap. Connect a 150mm round duct to the cap and work backwards toward the hood. Ensure joints are completely sealed with duct tape. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 13 - Adjust the width of the support bracket to match the upper duct. Fix it to the ceiling using the screws so that it is centred in line with your hood and at a distance from the ceiling indicated. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 14 - Install two mushroom tapping screw into the wall. - Connect a duct tube (not included) to the exhaust piece using duct tape on all seals (B). Hook Mounting bracket mushroom tapping screw Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 15 In the absence of any instructions supplied with a gas hob the minimum distance between the hob and the bottom of the hood must be at least 51cm. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 16 - Do not connect the cooker hood exhaust to a duct used to circulate hot air or vent steam from another appliance. - Always use protective gloves when installing the appliance. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
-
Page 17: Operating Instructions
- This appliance is not intended for use by young children or infirm persons without supervision. - There should be adequate ventilation in the room when the cooker hood is used at the same time as other fuel burning appliances. Please keep this instruction manual for future reference Instruction manual AS611 / AS911... - Page 18 - Separate lamp cover and lift the bracket by unscrewing. - Install the right bracket to the cooker hood, then tighten the screws. - Connect two cables. - Re-Install left bracket and tighten the screws. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 19 Touch 3 seconds Turn off after 5 min. Touch Medium speed setting Touch Touch 3 seconds Turn off after 5 min. Touch High speed setting Touch Touch Touch Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
-
Page 20: Care And Maintenance
We recommend replacing them at least every 6 months. - This extractor uses 2 x CAP55CF charcoal filter. Filters can be purchased directly from www.caple.co.uk. Please keep this instruction manual for future reference Instruction manual AS611 / AS911... - Page 21 - 3. Disconnect the lights you wish to replace and push these lights out from the light bar. - 4. Replace the lights and reconnect. - 5. Reassemble the light bar and fix back onto the extractor. Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 22 1080-1350mm 800mm 690mm Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
-
Page 23: Troubleshooting
- Contact Caple Service Whirring sound with fan blade Lights are working fan - Contact Caple Service isn’t Fan is working but lights - Contact Caple Service are not Please keep this instruction manual for future reference Instruction manual AS611 / AS911... -
Page 24: Guarantee And Servicing
0117 938 7420 or email service@caple.co.uk. Guarantee - Caple undertake that if within two years of the date of the purchase this appliance or any part thereof that is proved to be defective by reason only of faulty workmanship or materials, we will at our option repair or replace the same... - Page 25 Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 26 Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
- Page 27 Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
-
Page 28: Caple Service Contact Details
Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual AS611 / AS911...
