IMPORTANT SAFETY INFORMATION
When using electronic components basic safety precautions should always be
followed.
WARNING: This is an electrostatic sensitive device, take precautions to
ground yourself during the assembly procedure.
KIT CONTENTS
(a) x8 M3x10 Taptite Screws
(b) x14 M3x5 Screws
(c) x4 12mm Stand-offs
(d) x3 8mm Stand-offs
(e) x1 Aluminium End Plate
ASSEMBLY
1. Take carrier plate (g) & attach stand-offs
(c) & (d) with screws (b).

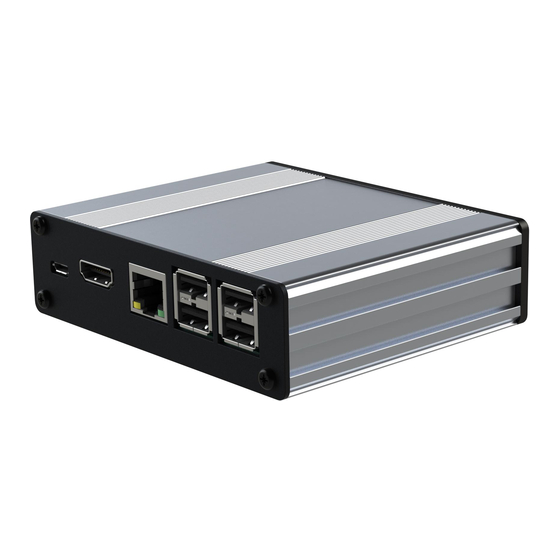

RPi3 CASE, Pi-BOX PRO 3
Assembly Instructions
MP004559 and MP004560
(f) x1 HDMI Extender PCB
(g) x1 Aluminium Carrier Plate
(h) x1 Aluminium Extrusion
(i) x1 Acrylic End Plate
1
Advertisement
Table of Contents
Related Manuals for multicomp pro RPi3 CASE
Summary of Contents for multicomp pro RPi3 CASE
- Page 1 RPi3 CASE, Pi-BOX PRO 3 Assembly Instructions MP004559 and MP004560 IMPORTANT SAFETY INFORMATION When using electronic components basic safety precautions should always be followed. WARNING: This is an electrostatic sensitive device, take precautions to ground yourself during the assembly procedure.
- Page 2 2. Plug extender board (f) into the HDMI & USB connectors on the Raspberry Pi board. 3. Place Raspberry Pi & extender on carrier plate assembly & secure with screws (b) as shown. 4. Turn board assembly over so carrier plate is on top &...
