Summary of Contents for Titan Attachments 1SHOP1-1SHOP2

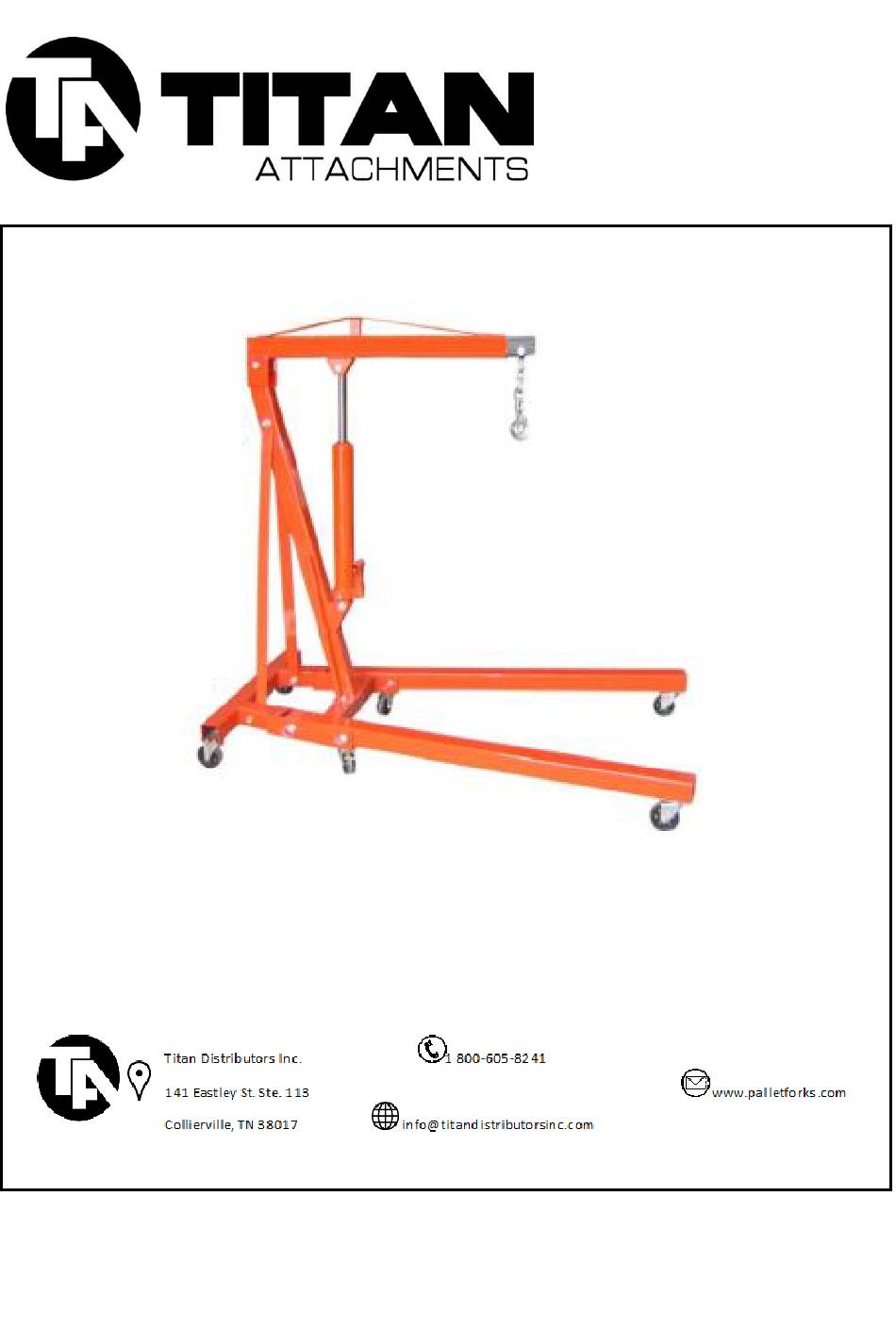

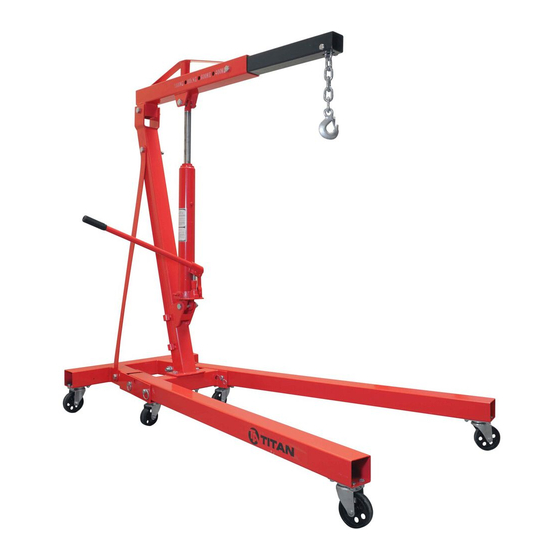

- Page 1 1 Ton Shop Crane Owner’s Manual MPN: 1SHOP1-1SHOP2 SKU: 840010...
- Page 2 General Comments: Congratulations on the purchase of your new TITAN product! This product was carefully designed and manufactured to give you many years of dependable service. Only minor maintenance (such as cleaning and lubricating) is required to keep it in top working condition. Be sure to observe all maintenance procedures and safety precautions in this manual and on any safety decals located on the product and on any equipment that you use in conjunction with this product.
- Page 3 GENERAL SAFETY RULES ■ Work area conditions. Cluttered ■ Do not over reach. Keep proper areas invite injuries. footing and balance at all times. Do not ■ Additional work area conditions. reach over or across running machines. Do not use machines or power tools in ■...
- Page 4 ASSEMBLY 1. Install the 2-3.5” wheels (part 7) on the base (part 28) using the screws and nuts provided (part 6,8,9). 2. Install the 2-3” wheels (part 10) on the base (part 28) using the screws and nuts provided (part 8,9,10). 3.
- Page 5 8. Assemble and fasten the vertical column (part 22) and boom (part 23) using the screws and nuts provided (part 20,4,5). 9. Attach the boom extension (part 24) to the boom (part 23) using screws and nuts provided (part 2,12,13). 10.
