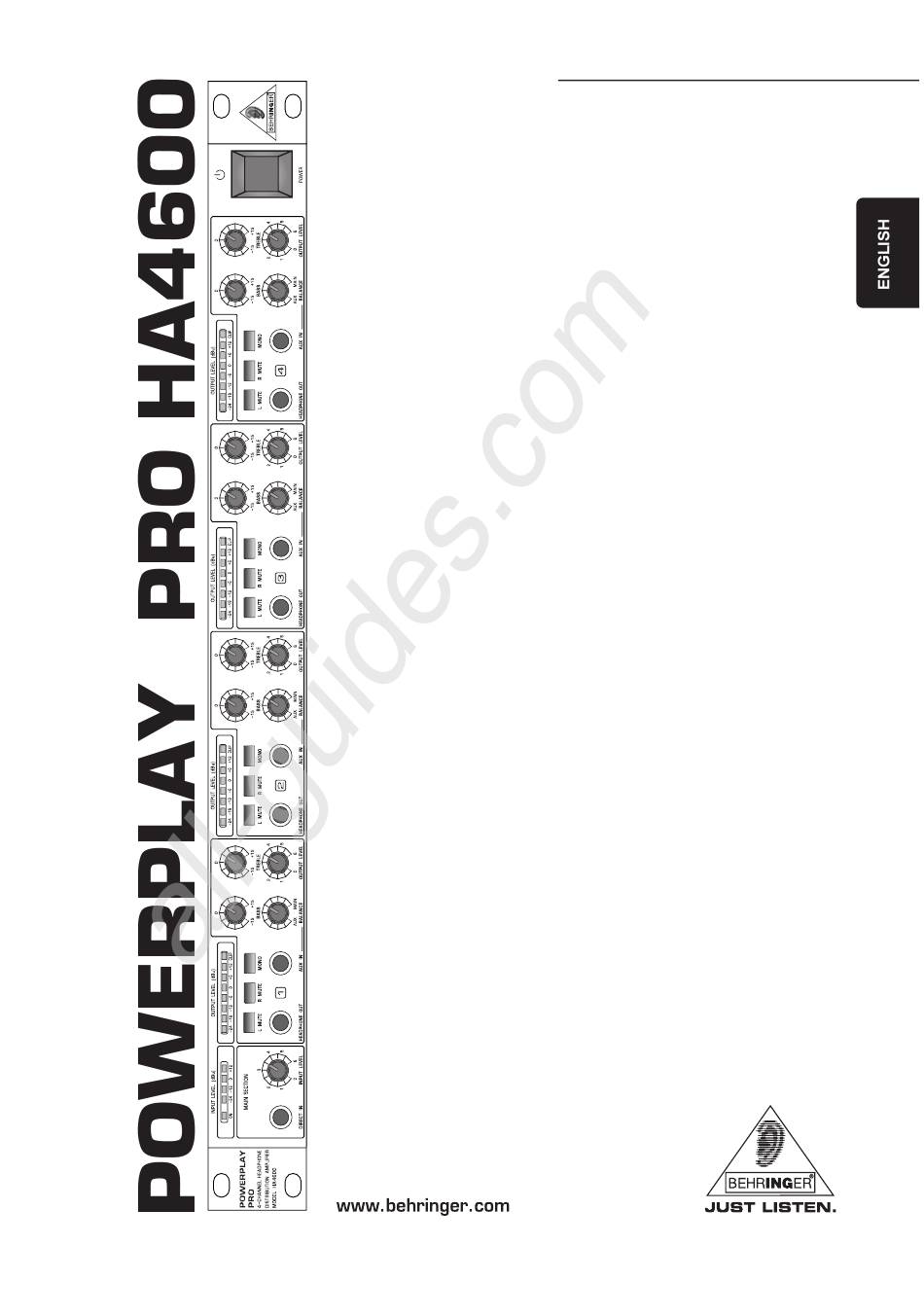

  • Page 1 All manuals and user guides at all-guides.com User’s Manual Version 1.1 January 2004...
  • Page 2 All manuals and user guides at all-guides.com POWERPLAY PRO HA4600 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside; refer servicing to qualified personnel.
  • Page 3 I would like to thank everyone who has helped make the POWERPLAY PRO possible. All have made their own personal contribution, beginning with the developers, through the many employees of our company and up to you, the user of BEHRINGER products. My friends, it’s been worth the trouble!

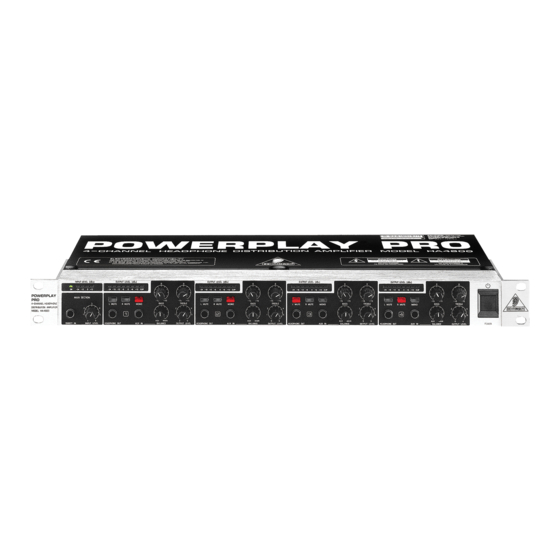

  • Page 4 All manuals and user guides at all-guides.com POWERPLAY PRO HA4600 POWERPLAY PRO Professional multi-purpose headphone amplifier system for stage and studio applications s Four totally independent high-power stereo amplifiers in one rack space s Four independent input/aux sections provide up to four stereo mixes...

  • Page 5: Table Of Contents

    6. WARRANTY ........................... 12 1. INTRODUCTION In purchasing the BEHRINGER POWERPLAY PRO HA4600 you have acquired a headphone amplifier of the high end-class. The equipment was developed for the most demanding uses: professional recording, radio and TV studios, CD and digital production equipment etc. Its extensive capabilities make the POWERPLAY PRO universally applicable.

  • Page 6: Control Elements

    2. CONTROL ELEMENTS The BEHRINGER POWERPLAY PRO has four identical channels. Each channel has three illuminated push-button switches, four rotary controls, two jacks and eight LEDs. The common main section has one control, one jack and five LEDs.

  • Page 7: The Rear Panel Controls Elements

    2.2 The rear panel control elements Fig. 2.2: The POWERPLAY PRO HA4600 rear panel FUSE HOLDER /VOLTAGE SELECTOR. Before connecting the equipment to the mains supply, please check that the voltage displayed on the unit conforms with your mains voltage supply. When replacing the fuse, make sure you use another one of the same type.

  • Page 8: Applications

    (e.g.) in a conference system set up different signal paths for the interpreters. Create sub-groups, or set up premixes using the effects and monitor facilities of your mixing console. To do this, turn the BALANCE control fully counterclockwise and connect the AUX inputs of the BEHRINGER 3. APPLICATIONS...

  • Page 9: Using The Direct In Input

    All manuals and user guides at all-guides.com POWERPLAY PRO HA4600 POWERPLAY PRO with the appropriate monitor-, subgroup or single outputs from the mixing console. Please note that the AUX inputs are set up for stereo. To play in a stereo signal you will need a stereo jack. If you use a mono jack it is advisable to activate the MONO switch, so as to get a signal distribution over both halves of the headphone.

  • Page 10: Audio Connections

    POWERPLAY PRO HA4600 4. AUDIO CONNECTIONS As a standard, the BEHRINGER POWERPLAY PRO is equipped with electronically servo-balanced inputs and outputs. The circuit design features automatic hum suppression for balanced signals and so ensures trouble-free operation, even at the highest operating levels. Externally induced mains hum, etc. can therefore be effectively suppressed.

  • Page 11: Specifications

    7 ¾ lbs. (3.5 kg) BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

  • Page 12: Warranty

    Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time of printing. The names of companies, institutions or publications pictured or mentioned and their respective logos are registered trademarks of their respective owners. Their use neither constitutes a claim of the trademarks by BEHRINGER nor affiliation of ®...
