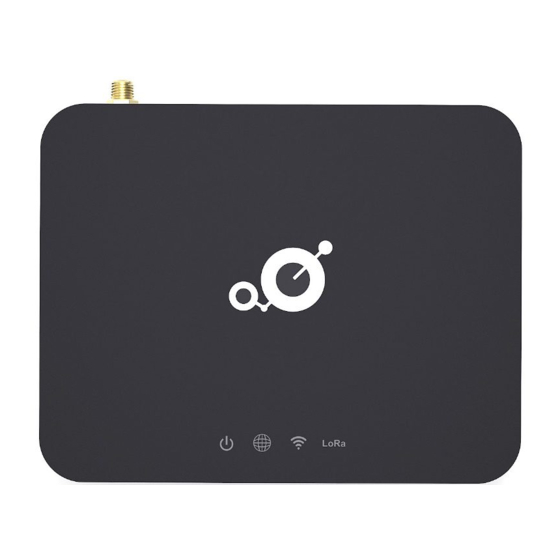

- Page 1 Browan Communications Inc. No.15-1, Zhonghua Rd., Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 30352 Tel: +886-3-6006899 Fax: +886-3-5972970 Document Number BQW_02_XXXXXX MerryIoT Hotspot Miner V1 Model:L0001 User Manual...
-
Page 2: Revision History
Revision History Revision Date Description Author .001 Oct. 21, 2021 First release Vincent... -
Page 3: Copyright
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from BROWAN COMMUNICATIONS INC. Trademarks The product described in this document is a licensed product of BROWAN COMMUNICATIONS INC. -
Page 4: Table Of Contents
GNMS USER GUIDE Contents REVISION HISTORY ..........................1 COPYRIGHT ............................2 NOTICE ..............................2 TRADEMARKS ............................2 CONTENTS ............................3 CHAPTER 1 – INTRODUCTION ......................4 Purpose and Scope ..........................4 Product Design ............................ 4 ... -
Page 5: Chapter 1 - Introduction
Smart Manufacturing, Automation, Blockchain and etc, to support high performance, high reliability and high throughput for the heavy data processing demand. MerryIoT Hotspot Miner V1 is targeting at AIoT applications with quad A55 cores, G52 GPU hardware, based on Linux distribution. IoT solution providers can easily integrate advanced and stable functions for their application-centric development on their own IoT projects. -
Page 6: System Architecture
Various Internet connection: Ethernet, WiFi ● Support LoRaWan 1.0.3 packet forwarder and Basic Station mode ● Ethernet/WiFi Configuration through APP ● Support BROWAN OTA ● Externalantennas for LoRa and internal antenna for WiFi connection ● System Architecture Definitions, Acronyms and Abbreviations... -
Page 7: Chapter 2 - Hardware Details
GNMS USER GUIDE Chapter 2 – Hardware Details LED Indicators LED sequence: Power(System), Internet,WiFi, LoRa,BT. Four Green, One White Solid LED is for static status, blanking means system is upgrading or active devices linked to the corresponding port Solid On Blinking Power Power ON... -
Page 8: I/O Ports
GNMS USER GUIDE Figure 1 – IO Ports I/O Ports Port Coun Description RJ45 WAN port of the device Reset to default (5 seconds to reset settings to Reset factory default) Power input via USB adaptor(5VDC/2A) TF Card... -
Page 9: Back Label
GNMS USER GUIDE Figure 2 – IO Ports Back Label The marking information is located at the bottom of apparatus. -
Page 10: Package Label
MS USER GUI Figure 3 3 – Back Lab Pack kage Lab Desc cription roduct BOX Gift abeling del/ MAC/ S S erial Num m ber/ Type Approval Pack kage Co ontent escription Quan tity... - Page 11 GNMS USER GUIDE MerryIoT Hotspot Miner V1 Power adapter (12V/1A) LoRa Antenna and Base...
-
Page 12: Chapter 3 - System Specification
Chapter 3 – System Specification Hardware Specification No. Item Description Rockchip RK3566 Quad-core Cortex-A55 up to 1.8GHz Memory DDR3/4 4GB Storage eMMC 32GB LoRa radio US 915 SKU External SMA antenna W-Fi radio 2.4GHz 1Tx/1Rx 802.11 b/g/n Built-in antenna BLE radio 2.4GHz BLE 5.2 Built-in antenna Crypto chip... -
Page 13: Lora Specification
LoRa Specification No. Item Description Channels US915 (known as US902-928) Chipset SX1302+SX1250 (x2) Bandwidth 125KHz/ 500KHz Power 5VDC, 500mA (typical) Antenna 1 ipex connector on board for external antenna Interface SPI for data communication GPIOs To control SX1262 (chip select) Form Factor Mini-PCIe 40 x 50 (w/golden pins) x 3 mm... -
Page 14: 3.2 Basic Features
OTA daily check Browan OTA ALi OTA 0003 同時更新 loading 的問題? Account : root Password: Create by MerryIot sign key based on MAC SSH Password 8 characters 0003 English uppercase and lowercase, 2~9 numbers ( default Skip: 0,O,1,I,l, o ) ... -
Page 15: 3.3 Lorawan Features
3.3 LoRaWAN features Req. Features Description comment Packet Compatible with Semtech LoRa Packet 2001 Forwarder Forwarder Miner Miner Application 2002 Application gateway_mfr Swarm key provision 2003 WiFi Setting Gateway config 2004 Helium on boarding Regulatory Specification Item Standard FCC/IC... -
Page 16: Chapter 4 - User Manual
Chapter 4 – User Manual 4.1 Connect MerryIoT Hotspot You can connect to the gateway via WiFi interface which the SSID and password printed on the back label by default. The rule of gateway SSID is MerryIoT-xxxxxx where the last digits are the last 6 digits of the MAC address The PC will fetch IP address of range 192.168.4.x except 192.168.4.1 assigned by the AP. - Page 17 Figure 5 – WAN connection ETHERNET STATUS – The information of IP address/Subnet Mask/Gateway/DNS. ETHERNET SETTING - Configure the IP address of WAN.[Static IP/DHCP client] Static IP – Setup the IP address/Subnet Mask/Default Gateway/DNS of the static IP. Contact to the network administrator for the static IP address information. DHCP –...
- Page 18 Figure 6 –DHCP client STEP 1.2Wi-Fi Select “Wi-Fi” to be the internet backhaul connection. The gateway WiFi interface is the Access Point by default which SSID is “Femto_Lite-XXXXXX” printed on the back label. Administrator can only access to the WEB UI through the Access Point mode to configure the gateway.
- Page 19 Click “Join” to accept or “Cancel” to abort. Figure 8 – Wi-Fi manual connection The gateway will scan the neighbor access point automatically. Just click the SSID for the WiFi connection. Figure 9 – Wi-Fi manual connection Enter WiFi password if it is necessary for the connection. Figure 10 –...
-
Page 20: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 21 Industry Canada statement: This devicecontains licence-exempt transmitter(s)/receiver(s) thatcomplywith Innovation, Science and EconomicDevelopmentCanada’s licence-exempt RSS(s). Operationissubject to the followingtwoconditions: (1) This devicemay not cause interference (2) This device must acceptanyinterference, includinginterferencethatmay cause undesiredoperation of the device L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
