TT-2000, TTD-2000, TT-4000
™
Ticket Eater
with AP-100 Logic Board
TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs
June 2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ticket Eater TT-2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deltronic Labs Ticket Eater TT-2000

Summary of Contents for Deltronic Labs Ticket Eater TT-2000

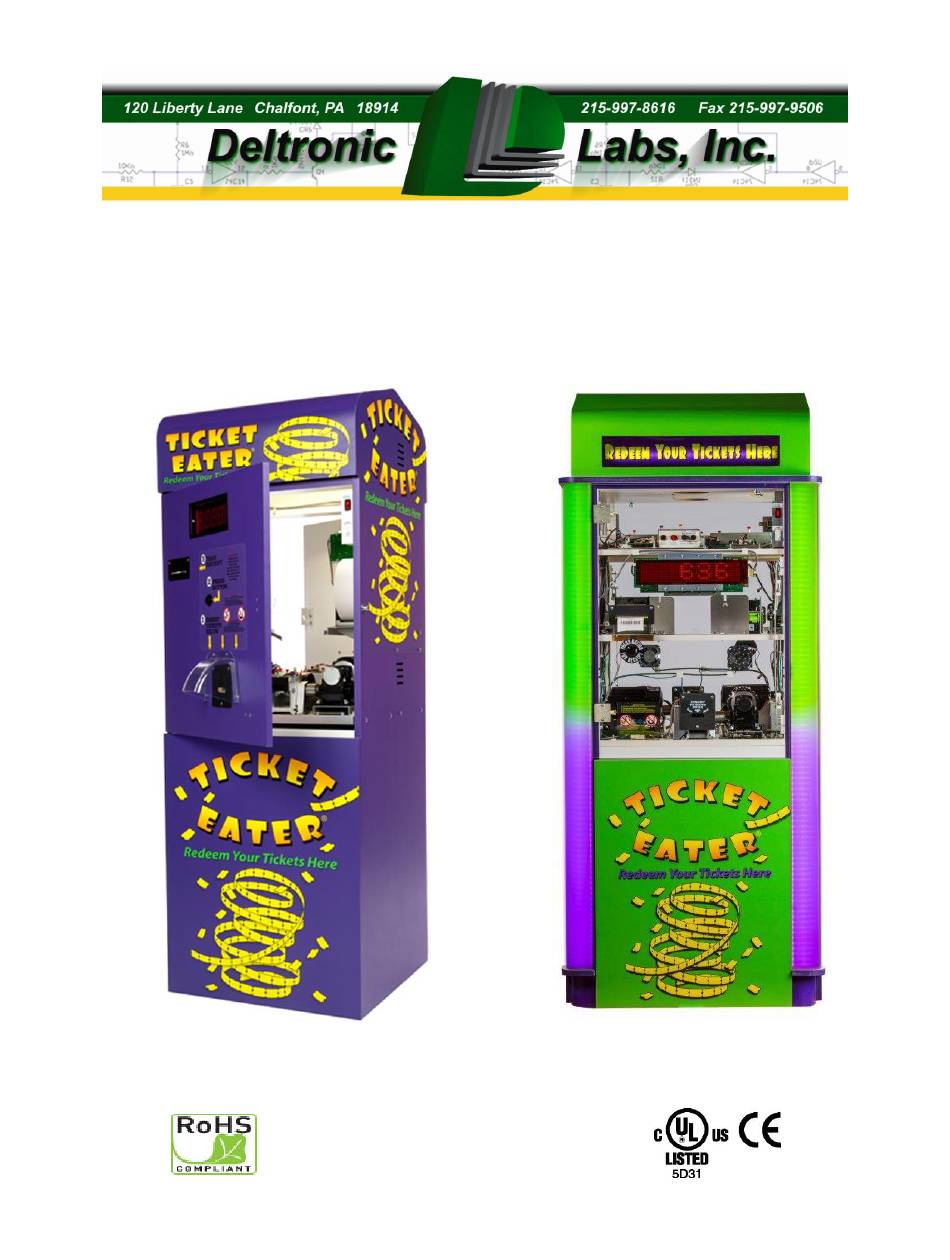

  • Page 1 TT-2000, TTD-2000, TT-4000 ™ Ticket Eater with AP-100 Logic Board TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 2: Table Of Contents

    Sensor Boards ................35 Power Cord Replacement ............39 Warranty Information .............. 39 Electrical Schematics ..............40 NOTE: TICKET EATER™ MANAGER SOFTWARE IS SOLD SEPARATELY. PLEASE CALL 215-997-8616 TO ORDER. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 3: Initial Setup

    At this point you will be able to see the display. Then use the procedures explained in the chapter on Changing Options Without Software to change option 36 to 4. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 4: Handling Messages On The Door Display

    Press the red button to clear the error and reset the count. Option 25 in group 99 2 tells the ticket eater to use a full-bucket sensor. Option 26 in group 99 2 sets the capacity of the trash can. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 5 Problems with the card swipe system or the communication between the card swipe system and the logic board will cause this message. Fix the problem and re-start the Ticket Eater. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 6: Dl Ticket Eater Manager Software

    (circled in white) has two buttons for opening and saving configuration files, two buttons for transferring configurations between the software and the Ticket Eater, and five buttons for controlling the Ticket Eater. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 7 Use the Upload New Firmware command on the Firmware menu to install new programming in the ticket eater logic board. You should do this only when instructed to do so by Deltronic Labs tech support. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 8: Changing Options Without Software

    Group 99 0 Option Number Function Values Year 0 to 99 Month 1 to 12 Date 1 to 31 1 to 7(Sunday to Saturday) Hour 0 to 23 Minute 0 to 59 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 9 Occasionally the tickets can fall in a way that they miss the sensor. The anti-cheat tolerance option defines the number of consecutive misses that are permitted without being considered cheating. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 10 Setting option 30 to 6 causes the sensor reading the graphics to be ignored. This prevents the counting problems, but it also disables the detection of ticket movement direction. This makes cheating harder to detect. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 11 Refer to the next page for instructions on printing an audit report. Group 99 6 exits the options mode. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 12: Performing Functions Without Software

    Holes-only middle 4 digits 3780 Holes-only last 4 digits ---1 Barcode #1 ID number 0000 Barcode #1 first 4 digits 0059 Barcode #1 middle 4 digits 2771 Barcode #1 last 4 digits etc. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 13: Managing Cheating Detection

    Barcoded Tickets Using barcoded tickets provides more security. If the barcode does not move past the sensor at a uniform speed, it will not read correctly. Sometimes a poorly printed barcode TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 14 Blocked middle sensor (possible jam) Full-bucket sensor Rear sensors Bad ticket length Direction of ticket movement (requires HO-2000, BCR-2000, or DS-2000 sensor board) This message clears itself. Attendant attention is not required. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 15: Maintenance Checklist

    Place the Rear Idler Roller (the one closest to the cutter) into its slots in the side plates. c. Let the Front Idler Roller Shaft drop into its slots in the side plates. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 16 5. Check that the Cutter Blade is tight on its shaft. The shaft has a flat. Tighten the cutter’s set screw against the flat. 6. Check the Cutter Blade for a build-up of dirt or adhesive from the paper. Clean with an alcohol swab or solvent. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 17 11. If you are getting a message on the display instead of a ticket count or the snake mode, refer to the section on “Handling Messages on the Door Display”. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 18: Blade Adjustment & Replacement

    7. Slowly tighten the screws that hold the stationary blade while rotating the cutter and checking the contact adjustment. As the screws are tightened they will pull the blade away from the cutter. Use the adjustment screws to compensate. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 19 The wider side of the blade should be against the frame. 7. Follow the instructions on the previous page to adjust the blade. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 20: Printers And Loading Paper

    7. Make sure the paper end has a clean square cut. 8. Insert the paper between the green guides in the back of the printer. The printer will detect the paper and load it. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 21 (circled in photo). Please refer to the printer manual for further instruction on printer care and functions. Refer to the next page for paper loading instructions. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 22 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 23: Ticket Specifications

    The barcode must be printed on both sides of the tickets. The barcode background color should not be a dark color such as dark brown, dark blue, dark gray, etc. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 24 The barcode background color should not be a dark color such as dark brown, dark blue, dark gray, etc. The guidelines for standard holes-only tickets also apply to 1 inch holes-only tickets. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 25: Diagnostic Leds

    On when middle rear sensor sees ticket BCR-1000 Rev. 5 LED 5 Ticket detected On when left rear sensor sees ticket BCR-1000 Rev. 5 LED 6 Ticket detected On when right rear sensor sees ticket TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 26: Trouble-Shooting

    Does the motor run when a ticket is 4. Check the connection between inserted? the driver board and the motor. 5. Check for dust on the front sensor. 6. Check the position of the front sensor. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 27 4. Check the roller spring shape and tension (see mechanical drawings). Make sure paper is loaded properly. Print receipt okay? Note that thermal paper only prints on one side. It will be blank if loaded backwards. TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 28: Mechanical Drawings

    Mechanical Drawings TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 29 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 30 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 31 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 32 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 33 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 34 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 35: Sensor Boards

    This drawing shows the HO1000 Rev. 4 sensor board. This board does not read barcodes. It has 3 LED’s which are circled in red. SENSOR NOTES Front Off when sees ticket Middle Off when sees ticket Rear Off when both sensors see ticket TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 36 It does not read barcodes. The board has 4 LED’s which are circled in red. SENSOR NOTES Front LED1 Off when sees ticket Mid-front LED2 On when sees ticket Mid-rear LED3 On when sees ticket Rear LED4 Off when both sensors see ticket TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 37 These boards have 2 LED’s which are circled in red. SENSOR NOTES Front Off when sees ticket Rear Off when both sensors see ticket TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 38 On and off as it sees ticket and barcode Middle Rear On when sees ticket Rear Left On when sees ticket Rear Right On when sees ticket Flashes on for error or cheating TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...

  • Page 39: Power Cord Replacement

    We will also repair or replace defects in parts or assembly caused by normal operations. Deltronic Labs, Inc. will not, however, be responsible for damage caused by or due to misuse of operation or power requirements, including system overloads or modification and burn out of electronic boards.

  • Page 40: Electrical Schematics

    Electrical Schematics TT-2000, TTD-2000 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 41 TT-2000, TTD-2000 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 42 TT-2000, TTD-2000 TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019...
  • Page 43 + 5V + 5V + 12V 0.1 u f P 1-1 P 1-2 P 1-3 P 1-4 C O M G N D P 1-5 O U T 8 IN 8 P 1-6 O U T 7 IN 7 P 9-1 O U T 6 IN 6 O U T 5...
  • Page 44 + 5V + 5V G U A R D _P IN 1-2 U 1_LA T C H R D 1 V + 5V G U A R D _P IN 2-2 R D 2 R D 0 T X 2 R X 2 U 9_LA TC H R D 3...
  • Page 45 + 5V + 5V + 12V 0.1 u f P 1-1 P 1-2 P 1-3 P 1-4 C O M G N D P 1-5 O U T 8 IN 8 P 1-6 O U T 7 IN 7 P 9-1 O U T 6 IN 6 O U T 5...
  • Page 46 + 5V + 5V U 1_LA T C H R D 1 V + 5V R D 2 R D 0 T X 2 R X 2 U 9_LA TC H R D 3 R D 11 M D B _T X T X 1 U 11_LA T C H U 5_LA T C H...
  • Page 47 + 5V + 5V + 12V 0.1 u f P 1-1 P 1-2 P 1-3 P 1-4 C O M G N D P 1-5 O U T 8 IN 8 P 1-6 O U T 7 IN 7 P 9-1 O U T 6 IN 6 O U T 5...
  • Page 48 + 5V + 5V U 1_LA T C H R D 1 V + 5V R D 2 R D 0 T X 2 R X 2 U 9_LA TC H R D 3 R D 11 M D B _T X T X 1 U 11_LA T C H U 5_LA T C H...
  • Page 49 + 5V + 5V + 12V 0.1 u f P 1-1 P 1-2 P 1-3 P 1-4 C O M G N D P 1-5 O U T 8 IN 8 P 1-6 O U T 7 IN 7 P 9-1 O U T 6 IN 6 O U T 5...
  • Page 50 + 5V + 5V U 1_LA T C H R D 1 V + 5V R D 2 R D 0 T X 2 R X 2 U 9_LA TC H R D 3 R D 11 M D B _T X T X 1 U 11_LA T C H U 5_LA T C H...
  • Page 51 + 5V + 5V + 12V 0.1 u f P 1-1 P 1-2 P 1-3 P 1-4 C O M G N D P 1-5 O U T 8 IN 8 P 1-6 O U T 7 IN 7 P 9-1 O U T 6 IN 6 O U T 5...
  • Page 52 + 5V 0.005 u f R 69 + 5V U 1_LA T C H R D 1 V + 5V T X 2 R D 2 R D 0 R X 2 M D B _T X U 9_LA TC H T X 1 R D 3 R D 11...
  • Page 53 + 5V + 5V + 12V 0.1 u f P 1-1 P 1-2 P 1-3 M A X 232. C 24 P 1-4 C O M G N D P 1-5 O U T 8 IN 8 C 2- 1 u f 1 u f P 1-6 O U T 7...
  • Page 54 + 5V + 5V U 1_LA T C H R D 1 V + 5V T X 2 R D 2 R D 0 R X 2 M D B _T X U 9_LA TC H T X 1 R D 3 R D 11 U 11_LA T C H R D 4...
  • Page 55 + 5V + 5V + 5V R 19 1 u f 5.1 K 6.8 M 10 K FR O N T _JM P + 5V U 1B 1N 914 0.01 51 K U 1A 1N 914 U 1D 2N 4401 O P1 R 11 1N 914...
  • Page 56 1N914 WHITE 2N4401 P1-6 P1-7 1N914 BLACK P1-8 0.01 10 K 51 K 1N914 10 K LMC660CN 510 K OTBC-0140 1 uf 1.3 M Deltronic Labs 25 K 10 K NOTE: SOME BOARDS MAY USE DIFFERNT SENSORS AND RESISTOR VALUES.
  • Page 57 + 5V 51 K O P5 R 10 + 5V 2N 4401 V T R 16D 1H O P4 + 5V + 5V V T R 16D 1H P 1-8 R EA R O R A N G E P 1-7 51 K B LU E P 1-6...
  • Page 58 D A T E D ES C R IPT IO N 8/15/11 C H G R 6,R 7 to 510 o h m + 5V JM P1 JM P2 + 5V ER R O R _LED + 5V FR O N T _LED + 5V + 5V V D D...
  • Page 59 LIG H T C O N T R O L PA N EL ELEC T R O N IC S PA N EL PO W ER S U PPLY G N D C O M C O M W H T R ED FA N G R N...
  • Page 60 D IS PLA Y PR IN T ER B U T T O N S B LK B LK B LU B LA C K B LK R ED B LK R ED R ED R ED R ED W H T O R G B LK R ED...
  • Page 61 3 PIN PA N D U IT O R G + 24 V D C PO W ER R ED 2 PIN PA N D U IT + 5 V D C B LK S U PPLY G N D R ED G R N B LK...
  • Page 62 + 3V + 5V + 3V 10 K 0.1 u f R N 2 M C LR V D D B D 137 R ED R A 0 V SS R A 1 R B 15 P 2-9 S PI_D A T 2 R B 0 R B 14 C LO C K _2...
  • Page 63 + 3V + 5V + 3V 10 K 0.1 u f R N 4 Q 13 M C LR V D D B D 137 R ED R A 0 V SS R A 1 R B 15 P 4-9 S PI_D A T 4 R B 0 R B 14...
  • Page 64 + 5V + 5V U 10 M IC 5891N 0.1 u f M IC 5891N 0.1 u f G N D D A T A _O U T G N D D A T A _O U T + 24V + 24V C 10 C LO C K _4...
