Summary of Contents for Farm King Allied 2895

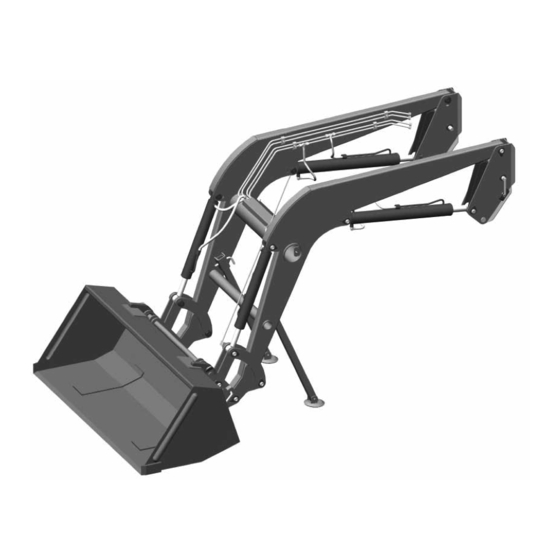

- Page 1 OperatOr and parts Manual 2895 Loader For serial numbers 0528950045 and later 122011 P4110...
-
Page 3: Table Of Contents
Table of Contents - 2895 Loader Table of Contents Introduction ..........................4 Serial Decal Location ........................5 Specifications ..........................6 Safety ............................8 • Safety ..........................8 • General Safety ........................9 • Safety Signs ........................10 • Safety Sign Installation ....................10 • Safety Decal location ..................... 11 • Precautions ........................12 Operation ...........................13 • Pre-Operation .........................13... -
Page 4: Introduction
Introduction - 2895 Loader Introduction Allied by Farm King front-end loaders are backed by years of extensive research. Factory testing simulates specific operations to evaluate durability; days of continuous cycling in raising, twisting and dropping loads using a programmed hydraulic power unit represents years of extreme use. -
Page 5: Serial Decal Location
Serial Decal Location - 2895 Loader Serial Decal Location The serial decal is located on the inside left arm of the loader joint plate. Please record the serial number in the space provided for future reference. The serial decal will provide the model and date of manufacture of the loader and will be required to obtain correct replacement parts and complete warranty claims. -
Page 6: Specifications
Specifications - 2895 Loader Specifications... - Page 7 Specifications - 2895 Loader Description 2895E 2895E 2895E S 2895E S Maximum lift height to pivot pin [in/cm] 181/460 181/460 169/429 169/429 Maximum lift height under level bucket [in/ 160/406 160/406 172/437 172/437 Clearance with bucket dumped [in/cm] 146/370 146/370 134/340 134/340 Reach at maximum lift height [in/cm]...
-
Page 8: Safety
Safety - 2895 Loader Safety Safety Instructions Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions. -
Page 9: General Safety
• Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting, repairing, or unplugging the equipment. • Do not attempt any unauthorized modifications to your Allied by Farm King product as this could affect function or safety, and could affect the life of the equipment. -
Page 10: Safety Signs
Safety - 2895 Loader • Use proper lighting and safety warnings when transporting equipment on public roads and during darkness. The Slow Moving Vehicle (SMV) emblem must be visible. Check with your local Law Enforcement Agency for specific requirements. Safety Signs • The following illustration shows the approximate location and detail of safety signs. -
Page 11: Safety Decal Location
Safety - 2895 Loader Safety Decal Locations Decals provided for both right hand and left hand (shown) applications. Item 4 only required for right hand upright only. 1 - Part # 813689 1 - Part # 112812 3 - Part # 813439 4 - Part # 813902 5 - Part # 112983 6 - Part # 113711... -
Page 12: Precautions
Safety - 2895 Loader Precautions The following pictorials indicate important precautions to be used during the operation of the loader. -
Page 13: Operation
Operation - 2895 Loader Operation Pre-Operation The following pictorials indicate important precautions to be used during the operation of the loader. The tractor must be equipped with an approved Roll WARNING over Protection Structure (ROPS) and safety belts to help prevent personal injury or death caused by tractor roll over. -
Page 14: Operation
Operation - 2895 Loader Operation General Operating Notes: The following section provides general information that can be applied towards your specific application. Ensure that you’ve read and understood this manual and your Tractor Manual. Observe all safety precautions and follow local laws pertaining to the use of your loader and tractor. - Page 15 Float will allow for the loader to lower and rise as the attachment follows the ground contours. To disengage float, slightly pull control back towards the neutral position. The Allied by Farm King Remote Hydraulic Control can be locked in the neutral position to minimize unintentional movement.
- Page 16 Operation - 2895 Loader Minimize turning angle and length of run between pile and trailer to increase loading efficiency. Also, place load evenly or centered in the attachment. Carry the load no higher than necessary to clear the terrain. Turn and brake slowly.
- Page 17 Operation - 2895 Loader For back grading, either load the bucket and position the heel on the ground or position the bucket at 40° or less below level as shown. Place the valve in the float position and back up slowly. Important: Float position must be used to reduce down pressure, otherwise cylinder rod(s) and/or bucket damage could occur.
- Page 18 Operation - 2895 Loader WARNING Do not operate A Frame for bales without stabilizers. Handling bales and pallets: For safe handling of bales and pallets please follow procedures below: With a single spear, enter one of the ends of the bale and drive the spear horizontally into the center or slightly above center of the bale and fully penetrate the bale.
- Page 19 Operation - 2895 Loader When loading bales onto a trailer, park trailer in close proximity to minimize turning angle and length of travel to increase loading efficiency. As you lift the bale using the regular loader, it is recommended to feather the valve to allow bucket cylinders to extend to keep bale at about a 20°...
- Page 20 Operation - 2895 Loader Grapple: The grapple is designed to safely prevent loads (bales, silage) from falling out of the bucket. (Refer to pictorial below for options listed) Travel at low speeds. Carry loads as low as possible. Avoid sharp WARNING turns and uneven terrain.
- Page 21 Operation - 2895 Loader Prior to initial mounting, cycle loader cylinders to displace air. This CAUTION ensures the loader will remain in the storage position and operate consistently. Installing Loader: Position the tractor centrally and parallel to the loader uprights. Drive forward slowly until the loader hydraulic hoses can be coupled.
- Page 22 Operation - 2895 Loader Shut tractor off and store parking stands within loader cross tube remembering to stand on the outside of the loader arms. Start CAUTION the tractor and continue to cycle loader and attachment to verify loader operation. 5.
- Page 23 Operation - 2895 Loader 2. Lower attachment level to the ground while engaging float position. Ensure attachment rests firmly on ground with minimal downward pressure. If required extend bucket cylinders to rotate upright rearward. At this stage the pin should have no pressure. Set tractor park brake and remove loader lock pins.
- Page 24 Operation - 2895 Loader Verify attachment installation from tractor seat by lowering level CAUTION attachment to ground and retracting the lift cylinders. Installing Loader Attachments: Position tractor centrally within the bucket hooks. Dump Quick-tach slightly from vertical position. Slowly drive the tractor forward until the Quick-tach contacts the bucket.
-
Page 25: Maintenance
Maintenance - 2895 Loader Maintenance Lubrication Lubricate loader bushings and pivots every eight hours of average operation with high-grade grease. For grease fitting locations see illustration below. Select grease based on the expected outside temperature range. Lithium, Molybdenum and synthetic greases are preferred. Use the tractor hour meter as a guide. - Page 26 Maintenance - 2895 Loader General Inspection: Lower attachment and loader to ground, place all controls in CAUTION neutral, stop engine, set parking brake and remove ignition key before inspecting, servicing, adjusting or repairing loader. Relieve hydraulic pressure before repairing, adjusting or disconnecting hydraulics components.
- Page 27 Maintenance - 2895 Loader Mounting Kit: After the initial 2 weeks or 40 hours of loader operation, and 6-month intervals thereafter re-torque all mounting kit bolts. (See Bolt Torque Chart)
- Page 28 Maintenance - 2895 Loader Hydraulics: Escaping fluid under pressure can have sufficient force to penetrate the skin, causing serious personal injury. Before repairing, adjusting, or disconnecting lines, be sure to relieve all pressure. Before applying pressure to the system, be sure all connections are tight and the lines, pipes, and hoses are not damaged.
- Page 29 Maintenance - 2895 Loader Shut tractor down and relieve oil pressure in system by moving WARNING the control valve spools in both directions before doing any maintenance. Maintenance involves yearly removal of valve spool end caps and cleaning all debris and corrosion.
-
Page 30: Tsl General Note And Instructions
Maintenance - 2895 Loader TSL General Note and Instructions The true self leveling system (TSL) utilizes mechanical linkages to maintain bucket level while raising and lowering. The pivot plate weldment, leveling tubes and linkages have been developed to ensure that the bucket remains at the same position throughout its range of motion. -
Page 32: Troubleshooting
Troubleshooting - 2895 Loader Troubleshooting Problem Possible Cause Remedy Check connections and Quick couplers leaking compatibility or replace Hydraulic oil too heavy Change or replace filter Oil filter plugged Clean or replace filter Hydraulic pump worn Repair or replace pump Check all hoses and tubes for leaks, damage or restrictions Oil line restricted or leaking... - Page 33 Troubleshooting - 2895 Loader Problem Possible Cause Remedy Improper hydraulic pump Repair or replace pump operation Load is greater than boom Check loader specifications lift capacity Insufficient lift capacity Internal boom cylinder Replace any worn parts and leakage install a seal repair kit Improper hydraulic valve Repair or replace valve operation...
-
Page 34: Bolt Torque
Bolt Torque - 2895 Loader Bolt Torque Checking Bolt Torque The tables shown below give correct torque values for various bolts and hex bolts. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. - Page 35 Bolt Torque - 2895 Loader Hydraulic Fitting Torques Jam Nut or Straight SAE 37° (JIC) Thread Dash Size ORB Fitting Torque Swivel Nut Torque Size ft-lb ft-lb 7/16-20 14-16 20-22 10-11 13-15 1/2-20 18-20 24-27 13-15 18-20 9/16-18 24-26 33-35 17-19 23-26 3/4-16...
-
Page 36: Parts
Parts - 2895 Loader Main Frame Assembly... - Page 37 Parts - 2895 Loader Item Part # Description 2895 2895S 24966 2895 Main Frame Weldment (113579, 113633 included) 24944 2895 S Main Frame Weldment (bushings included) 25165 2895 Quick Attach Weldment Ref. Lift Cylinder (see cylinder assembly) Ref. Bucket Cylinder (see cylinder assembly) 115585 Pin Weldment (quick attach) 24940...
-
Page 38: Hydraulic Plumbing Assembly And Parts List
Parts - 2895 Loader Hydraulic Plumbing Assembly... - Page 39 Parts - 2895 Loader Item Part # Description 2895 2895S Ref. Bucket Cylinder (cylinder assembly for breakdown) Ref. Lift Cylinder (cylinder assembly for breakdown) 812703 Hose 3/8 x 22 3/4-16 Morb x 3/4-16 Swfjic 114492 Hose 3/8 x 22 3/4-16 Swfjic x 3/4-16 Swfjic 812696 Hose 3/8 x 18 3/4-16 Swfjic x 3/4-16 Swfjic 114605...
-
Page 40: Main Frame Assembly - Tsl Drawing And Parts List
Parts - 2895 Loader Main Frame Assembly - TSL... - Page 41 Parts - 2895 Loader Item Part # Description 2895 2895S 24967 2895 Tsl Main Frame Weldment (bushings incl.) 24945 2895 S Tsl Main Frame Weldment (bushings incl.) 25165 2895 Quick Attach Weldment Ref. Lift Cylinder (see cylinder assembly) Ref. Bucket Cylinder (see cylinder assembly) 115585 Pin Weldment (quick attach) 24942...
-
Page 42: Hydraulic Plumbing Assembly - Tsl And Parts List
Parts - 2895 Loader Hydraulic Plumbing Assembly - TSL... - Page 43 Parts - 2895 Loader Item Part # Description 2895 2895S Ref. Bucket Cylinder (see cylinder assembly for breakdown) Ref. Lift Cylinder (see cylinder assembly for breakdown) 114605 Hose 3/8 x 24 3/4-16 Morb x 3/4-16 Swfjic 811467 Hose 3/8 x 36 3/4-16 Morb x 3/4-16 Swfjic 812703 Hose 3/8 x 22 3/4-16 Morb x 3/4-16 Swfjic 811754...
-
Page 44: Assembly
Assembly - 2895 Loader Assembly Possible Attachment Interference (S2895 and 2895 TSL) Regular loader linkage setup allows for maximum rollback. TSL loader linkage setup provides reduced rollback. When fully rolled back, large attachments (such as the C2000 Grapple) may contact the 2895 or the 2895E S TSL pivot plate. -
Page 45: Cylinder Assembly
Assembly - 2895 Loader 2895 Cylinder Assembly Bucket Cylinders Lift Cylinders Item Description Regular Regular Short Diameter 3.00" 3.00" 3.50" 3.50" Length of Stroke 27.50" 24.50" 32.50" 32.50" Retracted Length 38.75" 52.25" 52.50" 45.25" Extended Length 66.25" 76.75" 85.00" 77.75" Cylinder Assembly No. -
Page 46: Warranty
Repair Parts Limited Warranty Buhler Industries Inc. warrants Allied by Farm King replacement parts purchased after the expiration of the Buhler Industries Inc. Limited Warranty, and used and serviced as provided for in the Operator’s Manual, to be free from defects in materials or workmanship for a period of thirty (30) days from the invoice date for the parts. - Page 47 Warranty Requirements To be covered by warranty, each Allied by Farm King new product must be registered with Buhler Industries Inc. within thirty (30) days of delivery to original retail purchaser. If the customer decides to purchase replacement components before the warranty disposition of such components is determined, Buhler Industries Inc.
- Page 48 Warranty - 2895 Loader (Note that some provinces or states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusion may not apply to you.) This warranty gives you specific legal rights and you may also have other rights, which vary from province to province or state to state.
- Page 50 www.farm-king.com www.farm-king.com 1330 43rd Street NW Fargo, North Dakota USA 58102 Ph.: 701.282.7014 | Fax: 701.282.5865 E-mail: info@buhler.com www.farm-king.com Equipment shown is subject to change without notice. ©2010 Buhler Trading Inc. Printed in USA. TSX:BUI a division of Buhler Industries Inc.
