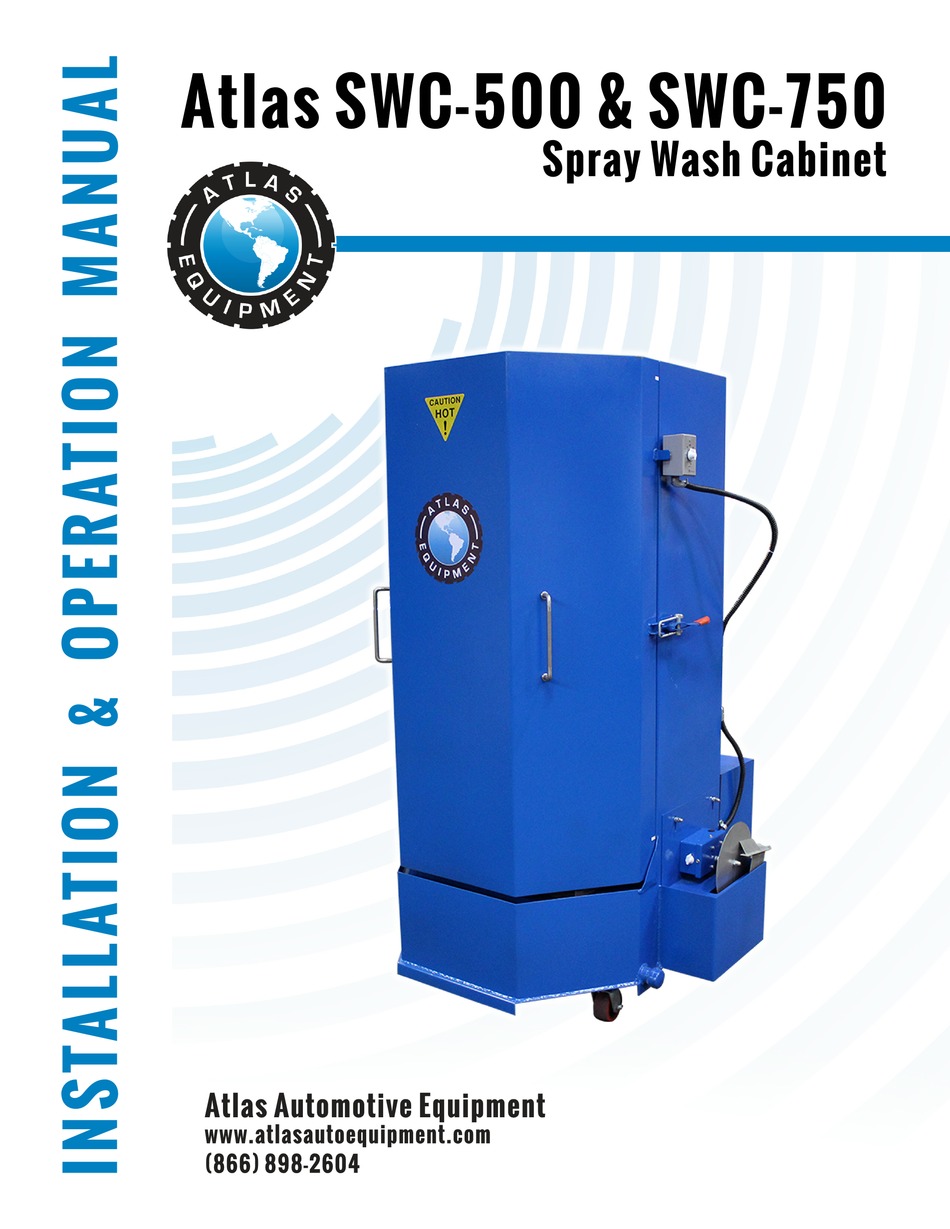

- Page 1 A t l a s S W C - 5 0 0 & S W C - 7 5 0 S p r a y W a s h C a b i n e t A t l a s A u t o m o t i v e E q u i p m e n t w w w .
-
Page 2: Table Of Contents
Table of Contents Product specifications． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．3 Introduction ．... -
Page 3: Product Specifications． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．3
Product Specifications (1) Model SWC-500 SWC-750 Overall Height 66″/1676mm 78″/1981mm Inside Height 42″/1067mm 54″/1372mm Inside Width 32″/813mm 32″/813mm Turntable Diameter 30″/762mm 30″/762mm Floor Space 44″×43″/1118mm×1092mm 44″×43″/1118mm×1092mm Load Capacity 1，000lbs/454kg 1,000lbs/454kg Stainless Steel Nozzles Water Temperature 135°-175°Fahrenheit 135°-175°Fahrenheit Pump Max working pressure... - Page 4 Product Specifications (2) Model SWC-500SC SWC-750SC Overall Height 66″/1676mm 78″/1981mm Inside Height 42″/1067mm 54″/1372mm Inside Width 32″/813mm 32″/813mm Turntable Diameter 30″/762mm 30″/762mm Floor Space 44″×43″/1118mm×1092mm 44″×43″/1118mm×1092mm Load Capacity 1,000lbs/454kg 1,000lbs/454kg Stainless Steel Nozzles Water Temperature 135°-175°Fahrenheit 135°-175°Fahrenheit Pump Max working pressure 28 PSI/175KPA 38 PSI/265KPA Pump Max Flow...
-
Page 5: Introduction ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．5
Introduction LOCATION: When choosing a location for your spray wash cabinet, consider the following factors: The spray wash cabinet is designed to clean parts with a re-circulated detergent and water ● The unit will generate steam. Make solution. The spray wash cabinet cleans with sure steam will have no adverse a combination of temperature, pressure, and affects in the area surrounding the... -
Page 6: Operation ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．6
A detergent formulated for mild steel Meeting the following criteria should be met: ● The detergent must have rust inhibiting agents. ● The detergent should be strong Check water level before starting the enough to remove the contaminants, machine. The ideal water depth in the but not so strong that it attacks the holding tank is 8″. -
Page 7: Initial Start-Up Procedure ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．7
13. Run the spray wash cabinet for at Initial Start-Up Procedure least 1-hour of wash cycles for the next two days. 14. Adjust oil skimmer flanges to make light contact with the skimmer wheel. Use care to not put excess strain on the oil skimmer motor. -
Page 8: Maintenance ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．8
Maintenance Warranty Do not allow the sludge accumulation in the tank to exceed a 1″ depth. Otherwise, the sludge build-up could damage the heating Limited Warranty element(s) and pump. Depending on the application, some businesses have to clean This warranty covers defects out the sludge weekly, while others can go... -
Page 9: Maintenance Checklist ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．9
Maintenance Checklist DAILY MONTHLY □ Check water level. Fill to just above the □ Check hoses for leaks or visible filter basket. damage. Replace if necessary. □ Clean any clogged spray nozzles. □ Make sure all components are in good □... - Page 10 Troubleshooting Problem Probable Cause Possible Remedy ● Check fuse or circuit breaker ● Replace blown fuse or reset circuit ● Check for correct voltage breaker Unit not working ● Wiring connections ● Supply correct voltage to unit ● Repair and insulate all connections ●...
