Spray Wash Cabinet Quick Start Guide
Please read this Initial Start-Up Procedure Guide before installing and
using your Atlas® Spray Wash Cabinet. It is extremely important that you
understand this simple step by step installation/instruction manual. These
simple steps will take a total of about two (2) hours to perform. Failure to
follow the procedure outlined in this simple start-up guide may void your
Manufacturer's Warranty.
Note: The following product comes with the inside of the cabinet painted for transit purposes
and only intended for transit purposes. During the operation of the equipment, the paint will
begin to peal and/or fl ake off . This is normal situation as the paint will not hold up to the
temperature of the cabinet. We ask simply you remove and clean the debris to maintain the
equipment.

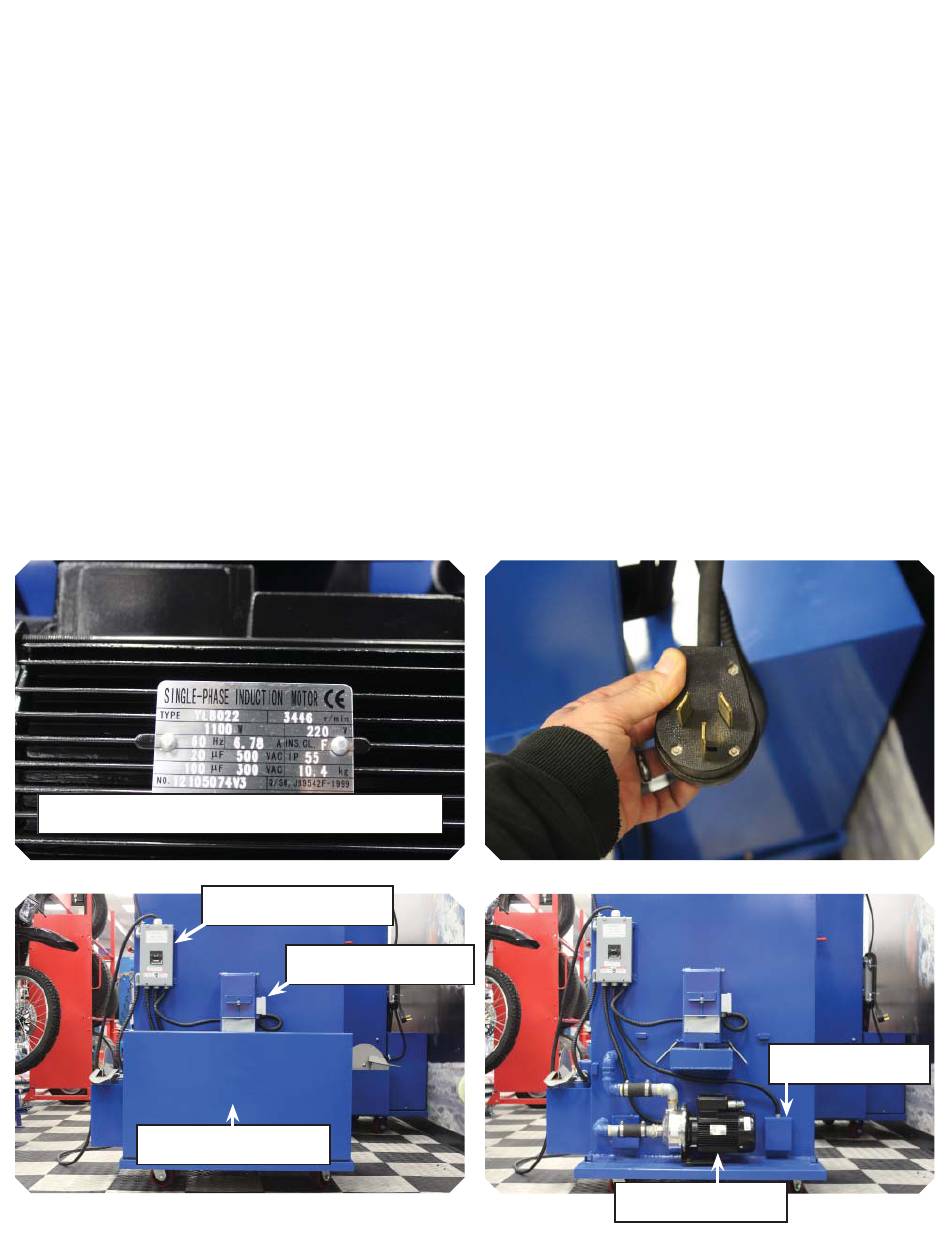

1. Check all wire connections. Vibration during shipment may have loosened wires. Please
have a qualifi ed electrician on site to make electrical hook-up and inspect wiring
connectivity. Move spray wash cabinet to area where it will be used.
220V Single Phase 40 AMP Breaker Required
Pump Motor Cover
Heater Motor Control
Basket Motor
Thermostat
Pump Motor
