- Page 1 METEOROLOGICAL INSTRUMENTS INSTRUCTIONS WIND MONITOR WITH VOLTAGE OUTPUTS MODEL 05103V R.M. YOUNG COMPANY 2801 AERO PARK DRIVE, TRAVERSE CITY, MICHIGAN 49686, USA TEL: (231) 946-3980 FAX: (231) 946-4772 WEB: www.youngusa.com P/N: 05103V-90 REV: J111215...
-
Page 2: Initial Check-Out

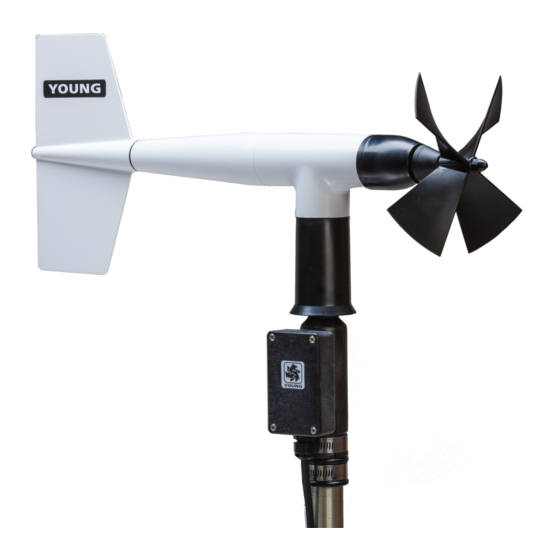

INTRODUCTION MODEL 05103V WIND MONITOR The Wind Monitor measures horizontal wind speed and direction. with VOLTAGE OUTPUTS It is rugged and corrosion resistant, yet accurate and lightweight. The housing, nose cone, propeller, and other components are injection molded U.V. stabilized plastic. Both the propeller and vertical shafts use stainless steel precision grade ball bearings. -
Page 3: Maintenance
Orientation ring may be omitted when CALIBRATION FORMULAS portable tripod is used. b) Place Wind Monitor on mounting post. Do Not tighten band Model 05103V Wind Monitor w / 08234 Propeller clamp yet. WIND SPEED vs PROPELLER RPM 2. CONNECT SENSOR CABLE. - Page 4 Screw nose cone into main housing until o-ring seal is seated. Be certain threads are properly engaged to avoid cross-threading. FLANGE BEARING REPLACEMENT If anemometer bearings become noisy or wind speed threshold increases above an acceptable level, bearings may need *Max set screw torque 80 oz-in 05103V-90(J) Page 3...
-
Page 5: Emc Compliance
R. M. Young Company. CE COMPLIANCE This product has been tested and complies with European CE requirements for the EMC Directive. Please note that shielded cable must be used. 05103V-90(J) Page 4... -
Page 6: Cable & Wiring Diagram
CABLE & WIRING DIAGRAM MODEL 05103V WIND MONITOR 05103V-90(J) Page 5... -
Page 7: Circuit Diagram
CIRCUIT DIAGRAM MODEL 05103V WIND MONITOR 05103V-90(J) Page 6... - Page 8 BEARING REPLACEMENT & POTENTIOMETER ADJUSTMENT 05103V-90(J) Page 7...
- Page 9 GENERAL ASSEMBLY & REPLACEMENT PARTS MODEL 05103V WIND MONITOR 05194 PROPELLER NUT WRENCH 08234 PROPELLER - 18CM X 30CM (BLACK PP) 05165B FRONT BEARING CAP 05163PG FLANGE BEARING (2) 05160C NOSE CONE ASSY 05158 NOSE CONE O-RING 05161A 6-POLE MAGNET &...
-
Page 10: Calibration Accessories
Calibration Accessories Model 18802 Anemometer Drive Model 18112 Vane Angle Bench Stand Model 18331 Vane Torque Gauge Model 18212 Vane Angle Fixture-Tower Mount Model 18310 Propeller Torque Disc Model 18301 Vane Alignment Rod... -
Page 11: Specifications
CUP-WHEEL TORQUE DISC ............18312 VANE TORQUE GAUGE ..............18331 VANE ALIGNMENT ROD ..............18301 Specifications subject to change without notice. Copyright © 2000 R.M. Young Company, Printed in U.S.A. 11/00 R.M. YOUNG COMPANY 2801 Aero Park Drive Traverse City, Michigan 49686 USA TEL: (231) 946-3980 FAX: (231) 946-4772 E-mail: met.sales@youngusa.com...
