- Page 1 METEOROLOGICAL INSTRUMENTS INSTRUCTIONS WIND MONITOR-AQ WITH 4-20mA OUTPUTS MODEL 05305L R.M. YOUNG COMPANY 2801 AERO PARK DRIVE, TRAVERSE CITY, MICHIGAN 49686, USA TEL: (231) 946-3980 FAX: (231) 946-4772 WEB: www.youngusa.com P/N: 05305L-90 REV: J111215...
-
Page 2: Initial Check-Out

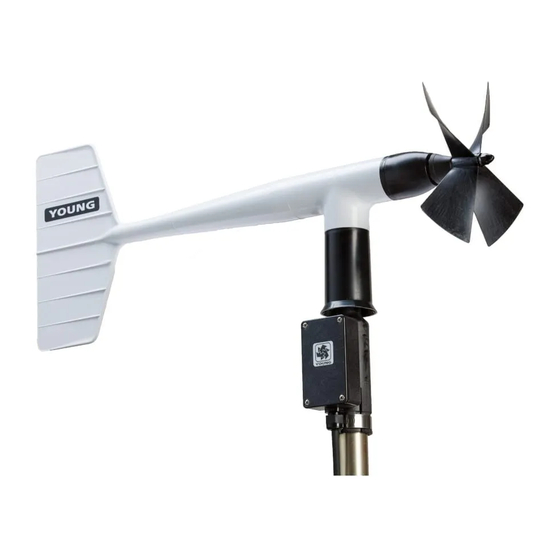

INTRODUCTION MODEL 05305L The Wind Monitor measures horizontal wind speed and direction. WIND MONITOR-AQ Developed for air quality applications, it is accurate, sensitive, and with 4-20mA OUTPUTS corrosion resistant. The main housing, nose cone, propeller, and other internal parts are injection molded U.V. stabilized plastic. The tail section is lightweight expanded polystyrene. -
Page 3: Maintenance
CALIBRATION FORMULAS instrument can be removed and returned to its mounting without re-alignment. Install the Wind Monitor following these steps: Model 05305L Wind Monitor w / 08254 Propeller 1. MOUNT WIND MONITOR WIND SPEED vs PROPELLER RPM a) Place orientation ring on mounting post. Do Not tighten band 0.00512 x rpm... - Page 4 Screw nose cone into main housing until o-ring seal is seated. 7. REPLACE MAIN HOUSING. Be certain threads are properly engaged to avoid cross threading. 8. ALIGN VANE. 9. REPLACE NOSE CONE. *Max set screw torque 80 oz-in 05305L-90(J) Page 3...
-
Page 5: Emc Compliance
R. M. Young Company. CE COMPLIANCE This product has been tested and complies with European CE requirements for the EMC Directive. Please note that shielded cable must be used. 05305L-90(J) Page 4... -
Page 6: Cable & Wiring Diagram
CABLE & WIRING DIAGRAM MODEL 05305L WIND MONITOR CALIBRATION FORMULAS Model 05305L WIND SPEED vs mA OUTPUT ( 6.250 x mA)-25 knots (12.125 x mA)-48.6 (13.980 x mA)-56 km/h (22.500 x mA)-90 WIND DIRECTION vs mA OUTPUT DEGREES (22.5 x mA)-90... - Page 7 BEARING REPLACEMENT & POTENTIOMETER ADJUSTMENT 05305L-90(J) Page 6...
- Page 8 GENERAL ASSEMBLY & REPLACEMENT PARTS MODEL 05305L WIND MONITOR 05194 PROPELLER NUT WRENCH 08254 PROPELLER - 20CM X 30CM (CARBON FIBER THERMOPLASTIC) 05165B FRONT BEARING CAP 05363 FLANGE BEARING (2) 05360A NOSE CONE ASSY 05158 NOSE CONE O-RING 05161A 6-POLE MAGNET &...
-
Page 10: Calibration Accessories
Calibration Accessories Model 18802 Anemometer Drive Model 18112 Vane Angle Bench Stand Model 18331 Vane Torque Gauge Model 18212 Vane Angle Fixture-Tower Mount Model 18310 Propeller Torque Disc Model 18301 Vane Alignment Rod... -
Page 11: Specifications
CUP-WHEEL TORQUE DISC ............18312 VANE TORQUE GAUGE ..............18331 VANE ALIGNMENT ROD ..............18301 Specifications subject to change without notice. Copyright © 2000 R.M. Young Company, Printed in U.S.A. 11/00 R.M. YOUNG COMPANY 2801 Aero Park Drive Traverse City, Michigan 49686 USA TEL: (231) 946-3980 FAX: (231) 946-4772 E-mail: met.sales@youngusa.com...
