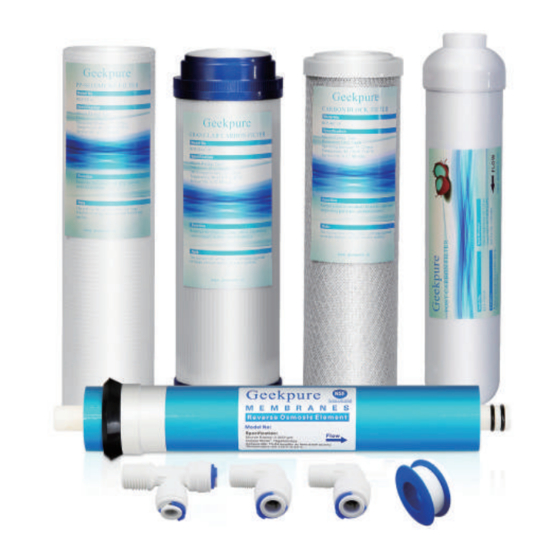

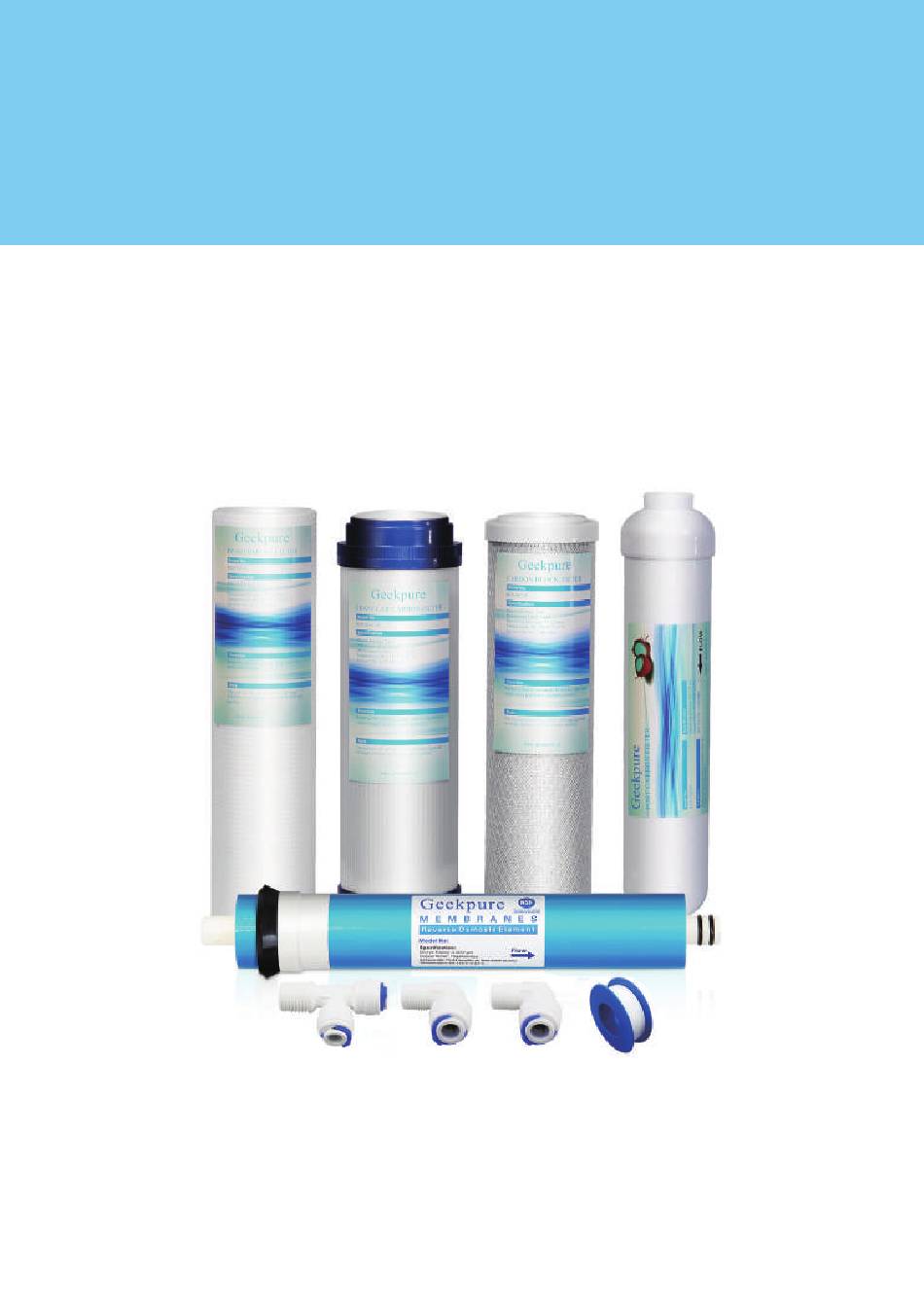

- Page 1 RO Filters Replacement and Maintenance Manual Geekpure FILTER CARTRIDGE CONFIGURATION MAY BE SUBJECT TO CHANGE.
-
Page 2: Table Of Contents
INSTALLERS: PLEASE READ ALL INSTRUCTIONS BEFORE REPLACE FILTERS. IT IS RECOMMENDED TO WAIT UNTIL THE ENTIRE SYSTEM IS PRESSURIZED (INCLUDING STORAGE TANK & FAUCET) AND RE-CHECK FOR ANY LEAKS BEFORE LEAVING INSTALLATION SITE. IT IS NORMAL FOR SOME BLACK CARBON FINES TO APPEAR IN THE WATER WHEN EMPTYING THE FIRST 2 TANKS OF WATER. -
Page 3: How Filters Works
Recommended Filter Change Schedule Your filters require changing on a regular basis, The schedule below is the minimum recommen- dation. Depending on your water conditions the filters may need to be changed more often. Stage 1 RO5-PP10 Every 6-12 months Stage 2 RO5-GAC10... -
Page 4: Tools Needed
Non-Booster pump models work on inlet water pressures of 40 psi (minimum) to 100 psi (maximum). Booster pump models work on inlet water pressures of 15 psi (minimum ) to 60 psi (maximum). If your house water pressure is over the maximum, install a pressure reducing valve in the water supply line to the filter system. - Page 5 NOTE: When installing housings make sure housing is level and even to avoid leaking. If you cannot find your wrenches, you can buy it (ASIN B07D9JWRYQ) via Amazon. If your RO was not bought from Geekpure,please buy wrench from previous seller. III. RO membrane replacement...
- Page 6 Remove the tube from the quick fitting and twist off the housing cap with wrench. Pull out old membrane from membrane housing. (you may use pliers if necessary.) Remove new membrane from packaging and push it into membrane housing. Put the housing cap back and tighten it, and connect the tube from the quick fitting. NOTE: Please ensure the RO System to work for about 30 minutes before drinking the purified water for washing.
- Page 7 Apply 5-6 wraps of Teflon thread sealant tape to the male thread on quick fittings. ◎ Install the quick fittings and tighten it. ◎ Take down the old post carbon filter from RO system. ◎ Connect new post carbon filter to RO system, and please make sure at right direction. ◎...
- Page 8 Installation tips for tube and quick connect fittings Figure 1 Figure 2 Figure 3 To connect: See Figure 1 and 2. Check and cut the tubing end squarely and cleanly with utility knife or scissors. Make a 5/8”mark at the end of the tube so you will be able to confirm when the tube is insert- ed fully into the fitting.
-
Page 9: Installing Tubing Connections
Installing Tubing Connections Faucet 3/8" White Tube Pressure Tank Drain Feed Water The following components make up your Reverse Osmosis Drinking Water System: Pre-PP Sediment removes larger particles such as sand, silt, and rust. Pre-Granular Carbon removes chlorine in the feed water to protect the reverse osmosis membrane. -
Page 10: Flush System And Check Operation
Check all connections to be sure they are secure. Turn on feed water diverter valve and check for leaks.(turn off and correct leaks if leaks occur). PS.It is basis of Geekpure RO system.(If not Geekpure RO system,it may 1/4” tube or other color) -
Page 11: Trouble Shooting
Trouble Shooting PROBLEM CAUSE SOLUTION 1. Water supply is turned 1. Turn on feed water No product water 2.Add Booster pump. you can 2.Inlet water pressure less than buy it (ASIN B07KHV93S5) 40psi via Amazon 1. Clear restriction 1. Water supply is blocked 2. -
Page 12: Warranty
The Life Time of the Filter Cartridges Depends on Usage Amount and Feed Water Quality,and most of filters life time is about 1 year or less.So,Geekpure Ro replacement filters set is warrant- ed to be free from defects in materials and workmanship under normal use within the operation specifications for a period of 1 month warranty from the date of original purchase.
