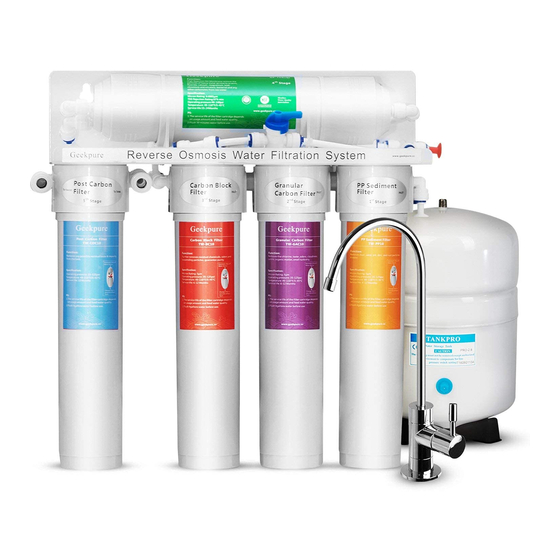

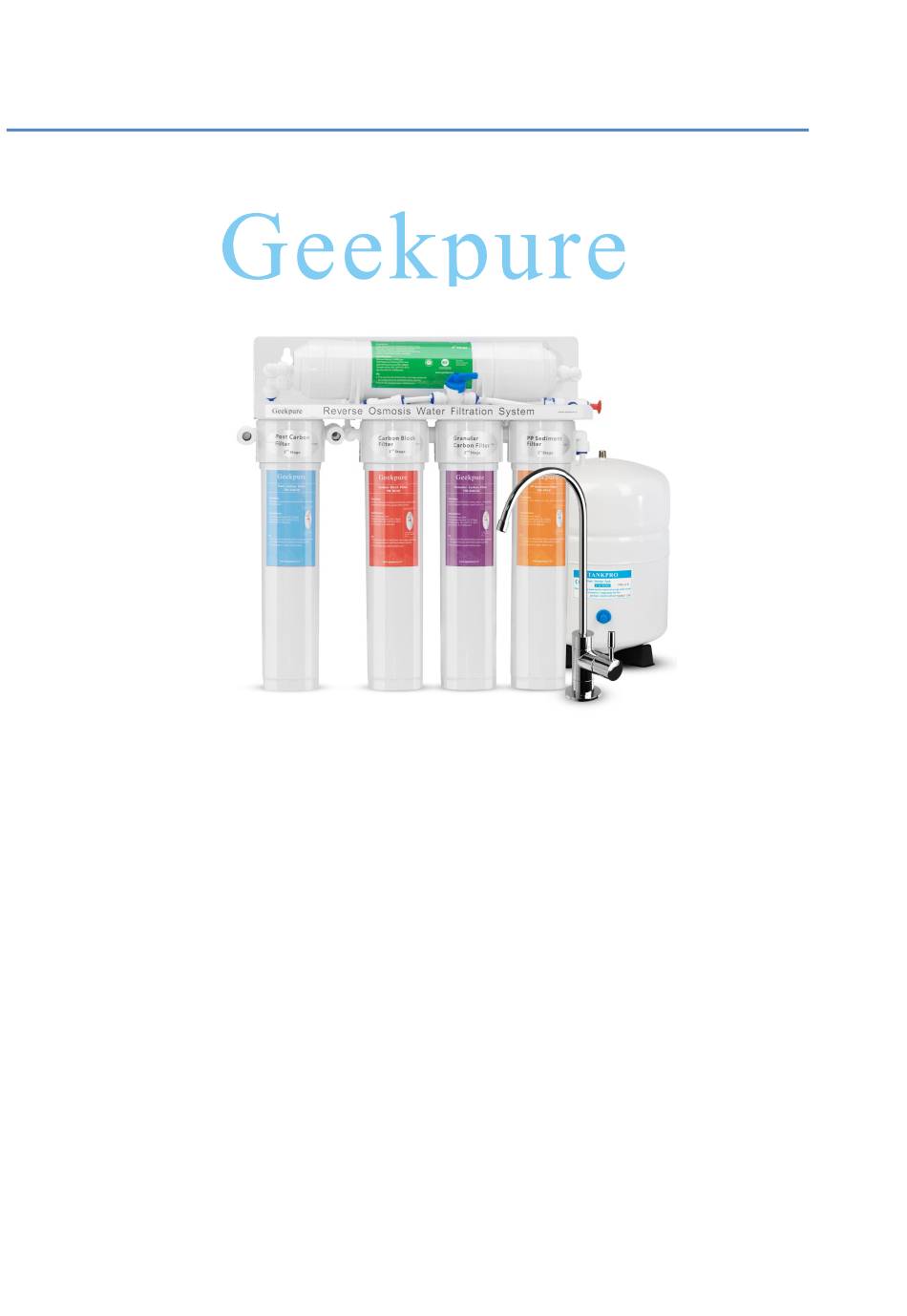

Reverse Osmosis Water Filtration System
Installation and Maintenance Manual
FILTER CARTRIDGE CONFIGURATION MAY BE SUBJECT TO CHANGE.
INSTALLERS: PLEASE READ ALL INSTRUCTIONS BEFORE
INSTALLING AND USING THIS SYSTEM.
IT IS RECOMMENDED TO WAIT UNTIL THE ENTIRE
SYSTEM IS PRESSURIZED (INCLUDING STORAGE TANK &
FAUCET) AND RE-CHECK FOR ANY LEAKS BEFORE
LEAVING INSTALLATION SITE.
IT IS NORMAL FOR SOME BLACK CARBON FINES TO
APPEAR IN THE WATER WHEN EMPTYING THE FIRST 2
TANKS OF WATER. THE FIRST 2 TANKS OF WATER
PRODUCED SHOULD BE EMPTIED AND NOT USED.
RO-TW
Advertisement
Table of Contents
Related Manuals for Geekpure RO-TW
Summary of Contents for Geekpure RO-TW
- Page 1 Reverse Osmosis Water Filtration System Installation and Maintenance Manual RO-TW FILTER CARTRIDGE CONFIGURATION MAY BE SUBJECT TO CHANGE. INSTALLERS: PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS SYSTEM. IT IS RECOMMENDED TO WAIT UNTIL THE ENTIRE SYSTEM IS PRESSURIZED (INCLUDING STORAGE TANK &...
-
Page 2: Table Of Contents
Table of Contents How Your System Works Before You Start Tools Needed System Location Parts Of The System Installation Steps Installing the Filters Installing Tank Ball Valve Installing the Faucet Installing the Feed Water Diverter Valve Installing The Waste Water Saddle Installing the Unit Installing Tubing Into Fittings Installing Tubing Connections... -
Page 3: How Your System Works
How Your System Works Geekpure RO5 Series systems use five stages of treatment to filter your water: - Remove sand, dirt, sediment Stage 1 - Remove chlorine, taste & odors, very fine particulates Stage 2 - Remove chlorine, taste & odors, very fine particulates... -
Page 4: Tools Needed
Do not use for the treatment of water that is visually contaminated (cloudy) or has an obvious contamination source, such as contamination by raw sewage. All plumbing should be done in accordance with local codes and requirements. Non-Booster pump models work on inlet water pressures of 40 psi (minimum) to 100 psi (maximum). -
Page 5: System Location
Scissors Faucet Tank Tank ball valve Water Pipe RO Membrane Clip Feed Water Diverter Valve Drain Clamp Manual System Location Your RO system may be installed under the sink, in a basement, or other location depending on available space. It is recommended the system be installed in as close a proximity to the faucet to ensure optimal system flow rate. - Page 6 Guidelines for component placement are as follows: Faucet should be placed near the sink where drinking/cooking water is normally required. A 2" flat surface is required to mount the faucet if an existing hole for a second faucet is not available. The thickness of the mounting surface should not exceed 1-1/4"...
-
Page 7: Parts Of The System
Parts Of The System Faucet Drain Feed Water Pressure Tank 3/8" White Tube Figure 1. Typical Installation The following components make up your Reverse Osmosis Drinking Water System: 1. Pre-PP Sediment removes larger particles such as sand, silt, and rust. removes chlorine in the feed water to protect 2. -
Page 8: Installation Steps
4. Reverse Osmosis Membrane reduces dissolved minerals, metals and salts. During the process, harmful compounds are separated by the membrane and the reject water goes to waste (drain). 5. Post-Carbon Filter is provided for a final "polish" to provide great tasting drinking water. 6. -
Page 9: Installing The Filters
Installing the Filters Remove the protective wrap from the filter cartridge. Apply NSF certified silicon grease (provided) liberally on the filter o-ring. (Failure to do this can result in a slow leak or drip if the o-ring is too dry). To install the filter simply push it up inside the cap and turn clock wise until the arrow aligns with the center of the cap. -
Page 10: Installing The Faucet
NOTES: While there is a gasket that seals against the shut off valve, it is recommended to still use Teflon tape on the tank threads to insure a good seal is achieved. It is also recommended to check for any leaks after the system has had time to produce water and pressurize inside the storage tank. - Page 11 Porcelain, Enamel, Ceramic on Metal or Cast Iron Sinks For porcelain/enamel sinks marble or granite counter tops refer to Manufacturer/Supplier for proper drilling instructions. Installation procedures for stainless steel sinks Recommended tools: ·Center punch · Variable speed drill ·High speed drill bits ·Protective gloves &...
-
Page 12: Installing The Feed Water Diverter Valve
Installing the Feed Water Diverter Valve The feed water diverter Valve is designed for use with 3/8” to 1/2” OD soft copper supply tubing. Turn off cold water valve from under sink or main water line valve for whole house. Wrap threads of Feed Water Diverter Valve with Teflon tape. -
Page 13: Installing The Unit
Never install a waste water saddle close to the outlet of a garbage disposal or plugging of the RO drain line may result . Refer to location in Figure 3. 1. Position half of the saddle with quick connect fitting at selected location and mark for the opening. -
Page 14: Installing Tubing Into Fittings
1. Locate the unit in the desired position. Make sure it is at least 3" off the floor. Level it and mark the location of mounting screws. 2. Install the screws. Leave 1/4" of the screw head out from the wall. -
Page 15: Installing Tubing Connections
Installing Tubing Connections Faucet Drain Feed Water Pressure Tank 3/8" White Tube With all components in place, complete final tubing connections using these guidelines: ·Tubing should follow contour of the cabinets ·Cut tubing to desired length using square cuts and proper cutting device ·... -
Page 16: Sanitize System
Sanitize System Sanitize the System (Recommended) Sanitizing is recommended immediately after installation of the Reverse Osmosis system. It’s also recommended after servicing inner parts. It is important that the person installing or servicing the system have clean hands while handling inner parts of the system. 1. -
Page 17: Filter Change Schedule
Filter Change Schedule Recommended Filter Change Schedule The following periodic maintenance is recommended so your system will provide years of trouble-free service: Disposable Filters Change Schedule Every 6-12 months TW-PP10 Every 6-12 months TW-GAC10 Every 6-12 months TW-BC10 Every 15-24 months GP-75G(Q) Every 12 months TW-COC10... -
Page 18: Trouble Shooting
Trouble Shooting PROBLEM CAUSE SOLUTION 1. Water supply is turned 1. Turn on feed water. No product water. off. 1. Clear restriction. 1. Water supply is blocked. 2. Replace pre-filter 2. Filters are plugged. cartridge(s). Not enough product water. 3. Feed water valve 3. -
Page 19: Spare Parts List
Spare Parts List UPC code Description Item No Comments membrane with quick GP-75G(Q) 680577668553 housing 680577668560 Clamp TW-CLAMP 680577668348 Check valve DC-020Y 680577668379 Auto shut off valve RO5-ASV 680577668546 Flow controller RO5-FLV 300CC 680577668430 Flush valve DC-025 1/4" 680577668577 Bracket BR-TW 680577668584 Quick fitting DC-002... -
Page 20: Flow Diagrams
Flow Diagrams RO-TW(No Pump) 2.8 GAL FAUCET Tank SHUT CHECK OFF Membrane VALVE VALVE Inlet To Drain... -
Page 21: Operation Specifications
Operation Specifications WATER SUPPLY CHLORINATED / NON-CHLORINATED 40 - 100 PSI FEED WATER PRESSURE(R0-TW) 40-110°F/5-45°C TEMPERATE 3.0 -11.0 MAX. TDS 1000 PPM < 1.0 NTU TURBIDITY <4.0 MAX SDI < 5 GPG HARDNESS <0.1 IRON <0.05 MANGANSESE HYDROGREN SULFIDE 0.00... -
Page 22: Warranty
Warranty We would like to thank you for choosing the Geekpure RO5 series standard reverse osmosis unit. Geekpure RO5 series (excluding cartridge filters and membrane) are warranted to be free from defects in materials and workmanship under normal use within the operation specifications for a period of 1 year limited warranty from the date of original purchase. - Page 23 www.geekpure.cc...
Need help?
Do you have a question about the RO-TW and is the answer not in the manual?
Questions and answers
Does the storage tank for the Geekpure Reverse Osmosis Drinking Water System need to be cleaned and sanitized, and if so, how?
Yes, the storage tank for the Geekpure RO-TW Reverse Osmosis Drinking Water System needs cleaning and sanitizing.
The process is as follows:
1. Turn off the water supply to the RO system and close the ball valve on the storage tank.
2. Open the RO faucet.
3. Use an eyedropper and add 3 ml of household bleach (5.25%) into the open end of the 3/8" tube connected to the tank.
4. Reconnect the tubing to the tank ball valve.
5. Sanitizing is completed during the flush system steps.
Flush System Instructions:
1. Check all connections to ensure they are secure.
2. Turn on the feed water valve and check for leaks. Fix any leaks if found.
3. Close the faucet and wait 5 minutes to check for leaks again.
4. Open the faucet handle and allow the tank to completely drain. Do not use this water, as it may contain bleach.
This process ensures the tank is sanitized and safe for use.
This answer is automatically generated
leaking from top of cannisters does it need new gaskets?
