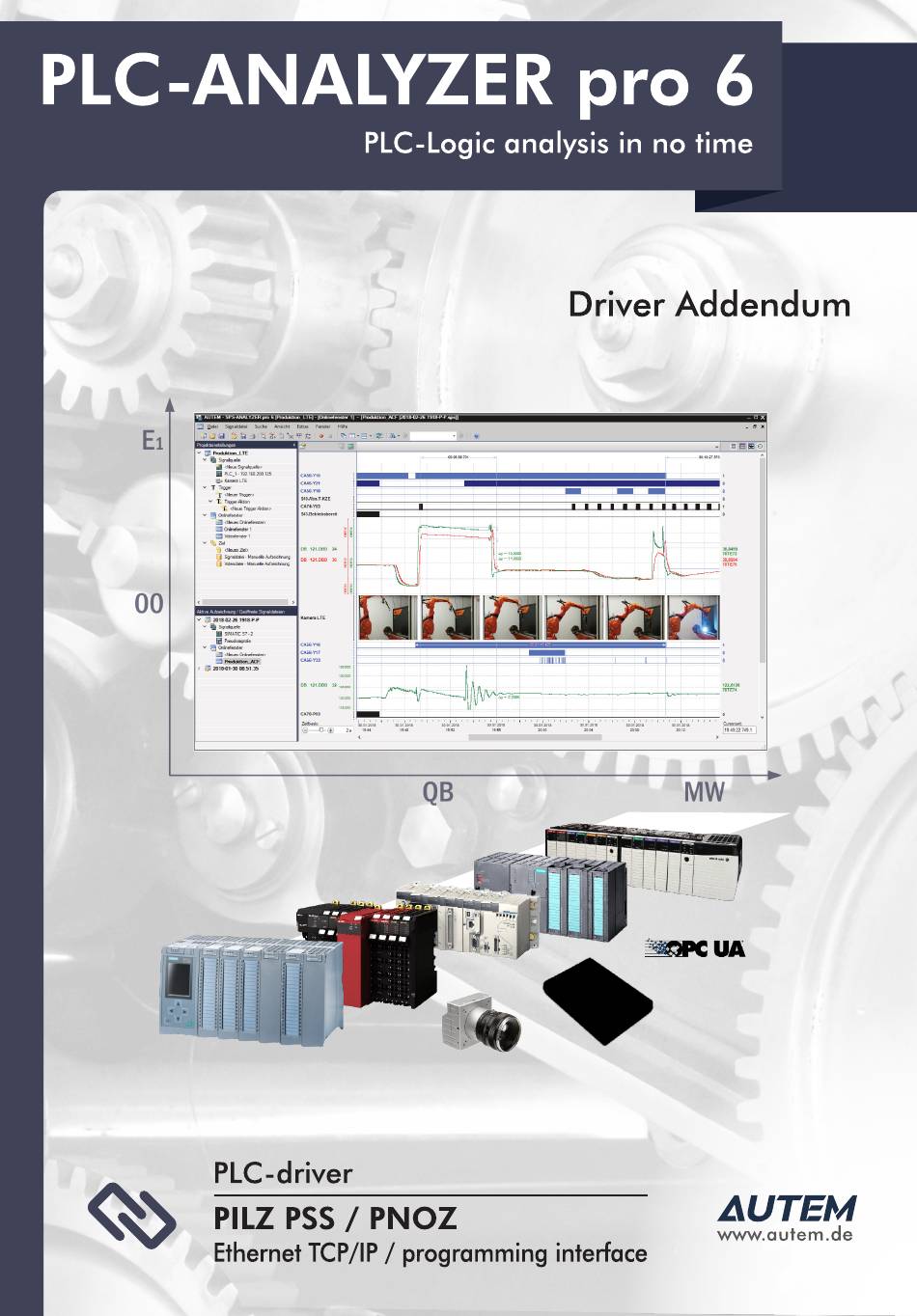

Summary of Contents for AUTEM PLC-ANALYZER pro 6
- Page 2 AUTEM does not give any warranty for this manual as well as no express or tacit warranties on commercial quality and suitability for a particular use. AUTEM does not take over adhesion for errors contained in it or for damages that may occur as a result of using or applying this material.
- Page 3 PLC-ANALYZER pro 6 - PILZ PSS / PNOZ Table of Contents Signal source ..............................3 PILZ PSS / PNOZ ............................3 Installation ............................3 Installing additional hardware ......................3 Installing additional software ......................3 Configuration ............................4 Data acquistion ............................ 6 Supported PLC models and CPUs .....................
- Page 4 The PLC driver can be added to the project as a new signal source. If the driver you want is not yet in the list of available signal sources, you must first activate the license for the PLC-driver with the AUTEM LicenseManager on your computer.
- Page 5 PLC-ANALYZER pro 6 - PILZ PSS / PNOZ Configuration Open driver settings to set important parameters for data recording. If you have added the driver to the project several times, you can set the properties individually for each individual driver.
- Page 6 PLC-ANALYZER pro 6 - PILZ PSS / PNOZ First give the driver a meaningful name. Then set the IP Address and the Port of the PLC or the Comport to which the PLC is connected. These settings can be found in the configuration of your PSS WIN-PRO project.
- Page 7 PLC-ANALYZER pro 6 - PILZ PSS / PNOZ Data acquistion Supported PLC models and CPUs All models of the PILZ PSS 3000 series and the PNOZmulti are supported, which support a connection to the programming software (PILZ Win-PRO) via the corresponding interface.
- Page 8 PLC-ANALYZER pro 6 - PILZ PSS / PNOZ Time behaviour and particularities NOTE Acquiring data with PLC-ANALYZER pro results in a small increase in cycle time in the PLC to the same manner as it happens with programming software PSS WIN-PRO in the online-mode.
