Manual for ST300
ELEVATING EXPECTATIONS
ST300
Our portable Slab Trolley has a lifting capacity of 300 kgs and is designed to be
used with ease by one person, keeping your manning levels to a minimum.
The ST300 Is powered by a 12volt battery and it has audio/visual alarms making it
both versatile and safe.
The ST is capable of lifting stacked slabs from a 90degree angle to horizontal for
laying. Perfect for lifting/laying slabs and kerb stones.
Pads are hardwearing and easily replaced.
All of our machines are UKCA/CE certified so you can be assured of their quality.
www.autemvacuumlifters.co.uk
Advertisement
Related Manuals for AUTEM ST300
Summary of Contents for AUTEM ST300

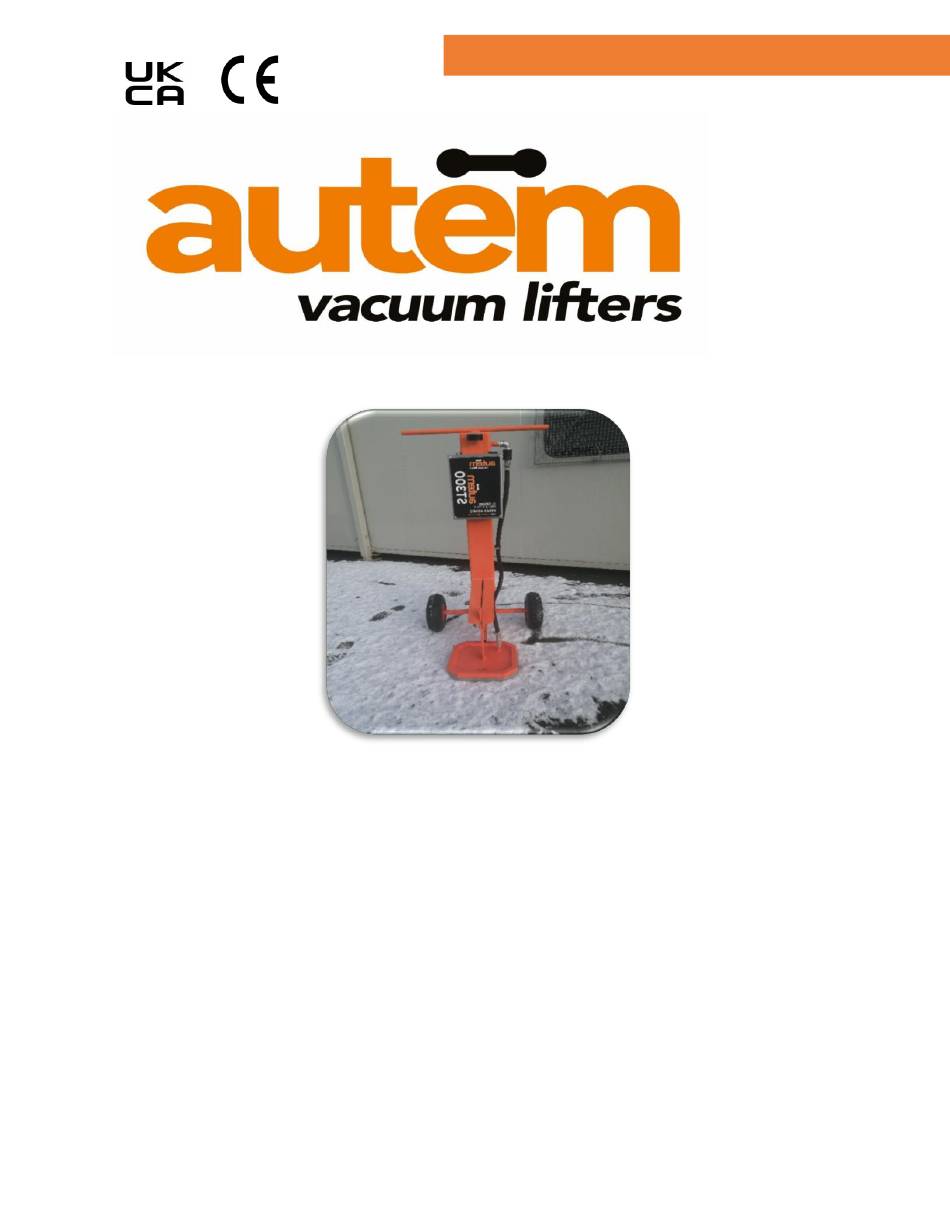

- Page 1 Our portable Slab Trolley has a lifting capacity of 300 kgs and is designed to be used with ease by one person, keeping your manning levels to a minimum. The ST300 Is powered by a 12volt battery and it has audio/visual alarms making it both versatile and safe.
- Page 2 Manual for ST300 Contents: • Safety First • Training • Lift Plan • Temperature Range • Lifting Accessories • Positioning of pads • Pre – Checks • Warnings • Storage • Operating Procedures • • Lifting • Maintenance • Troubleshooting •...
- Page 3 Manual for ST300 Safety First PERSONAL PROTECTIVE EQUIPMENT ANY LIFTS SHOULD BE WORN WHEN CONDUCTING Caution Training: The Vacuum Lifting equipment should be operated only by competent persons who have been adequately trained in the safe use of the equipment and the findings of any risk assessment.
- Page 4 Manual for ST300 The responsible person/operator is required to conduct a lift plan which must address the foreseeable risks involved in the lifting of the load and identify the appropriate resources (including people) necessary for safe completion to the lift.
- Page 5 Manual for ST300 https://www.hse.gov.uk/work-equipment-machine/loler.htm and must therefore be tested and thoroughly examined accordingly. Warning Positioning of Pads: It is essential to position the pads correctly and it is also essential to wipe all surfaces prior to the lift, as loose materials can cause leaks and HAVE caused loads to drop.
- Page 6 Manual for ST300 The manufacturer’s instructions for the regular inspection and maintenance of the vacuum lifting equipment must be followed. Warning Equipment Weekly Checks: The following components should be inspected on a weekly basis, • pipeline inspection should cover material damage, pinching or rubbing during operation can cause wear which results in a failure of the hose, environmental damage.
- Page 7 Manual for ST300 Warning LOLER Inspections: The Vacuum Lifting device should be thoroughly examined by a competent person at appropriate intervals, where the vacuum lifting attachment is permanently fixed to a crane, gantry or similar, it must be thoroughly examined at 12 monthly in accordance with a written scheme of examination.
- Page 8 Manual for ST300 Machines kept in particularly moist/wet or dusty conditions may require frequent attention, so a dry atmosphere is preferable. Operating Procedures ST300 should only be operated by staff who have been trained in the use of the vacuum lifting attachment and who fully understand the safe operating systems.
- Page 9 Manual for ST300 Caution The unit should be centred on material to be lifted then lowered ensuring that the pad/pad’s do not overlap material being lifted. Caution The material being lifted must be free from dust and debris. To activate control, push valve up as indicated, full vacuum will be achieved in seconds. To release, pull valve down as indicated whilst assuring material is supported and that the operator is clear of the load.
- Page 10 Manual for ST300 Caution Before lifting any material ensure the load to be lifted is within the safe working load of the vacuum lifting attachment which is indicated on the equipment Pad Dimensions 300 x 300 187kg 200 x 800...
- Page 11 Manual for ST300 `Warning Do not attempt to lift load if the vacuum guage is not in the green zone or if alarm sounds and/or red light is flashing. In the event of the vacuum dropping below 40% whilst lifting a load, or if an alarm sounds, lower the load to a safe position immediately.
- Page 12 Manual for ST300 • check all suspension points/pins for damage. Please note that conditions in which machine is stored will affect the amount of attention the unit will require. Monthly Checks: • inspect shackles and suspension points if applicable (when the cross section is reduced by over 10% replace immediately).
- Page 13 Here at Autem Vacuum Lifters, we pride ourselves on the quality of the products we supply, so you can rely on us to have the replacement parts as and when you need them. To maintain the...
- Page 14 Manual for ST300 Switch Rocker Round On/Off #0-531-24 10amps #0-534-10 Voltmeter Illuminated FOR 12v #0-562-12 Buzzer 1amp 200017 Sensor 3amp 200018 Red Warning Light 1amp 200019 Charger 4amp 200020 Filter RPZF1 Pin Relay Socket DIN Rail 124-0201 ROLP/R/S/3 Red 32 Tone Sounder 9-28v dc...
- Page 15 Manual for ST300 MOSS25 – 60 X 50 50LE Rubber Seal Wiring Kit Dual Head Pump 200023 Galvanised Box with Lid Only replace part using components sourced directly from Autem Vacuum Lifters Ltd www.vacuumlifters.co.uk www.autemvacuumlifters.co.uk...
- Page 16 Manual for ST300 Wiring Diagram www.autemvacuumlifters.co.uk...
- Page 17 Manual for ST300 Drawing Number: WFBOO2 Revision: 002 Autem Vacuum Lifters Ltd Westacre, Fenwick, Kilmarnock KA3 6AS Product Vacuum Lifting Device Model/Type Serial Number Un-Laden Weight Year of Construction Minimum Load S.W.L “Warning – Lifting above 1.8 M is prohibited Until a lifting plan is in place”...
- Page 18 Manual for ST300 GB Declaration of Conformity In accordance with of European Parliament and Council Decision No 768/2008/EC Annex III www.autemvacuumlifters.co.uk...
- Page 19 Manual for ST300 1. Product model / product: Product Vacuum Lifter Model/type ST300 Batch/serial no. 20201 2. Manufacturer Name Autem Vacuum Lifters Address Westacre, Fenwick, Kilmarnock KA3 6AS 3. This declaration is issued under the sole responsibility of the manufacturer.
