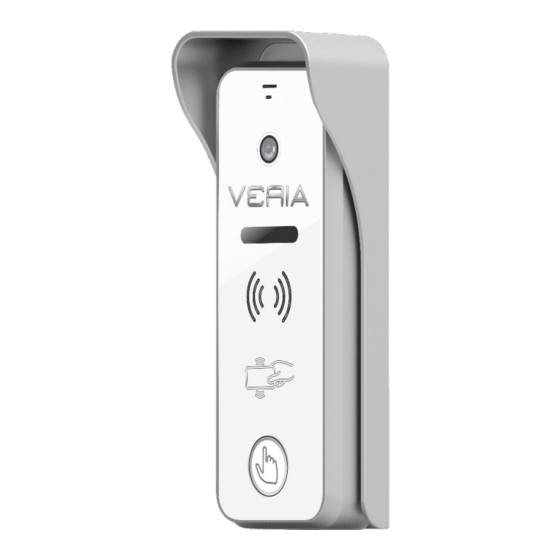

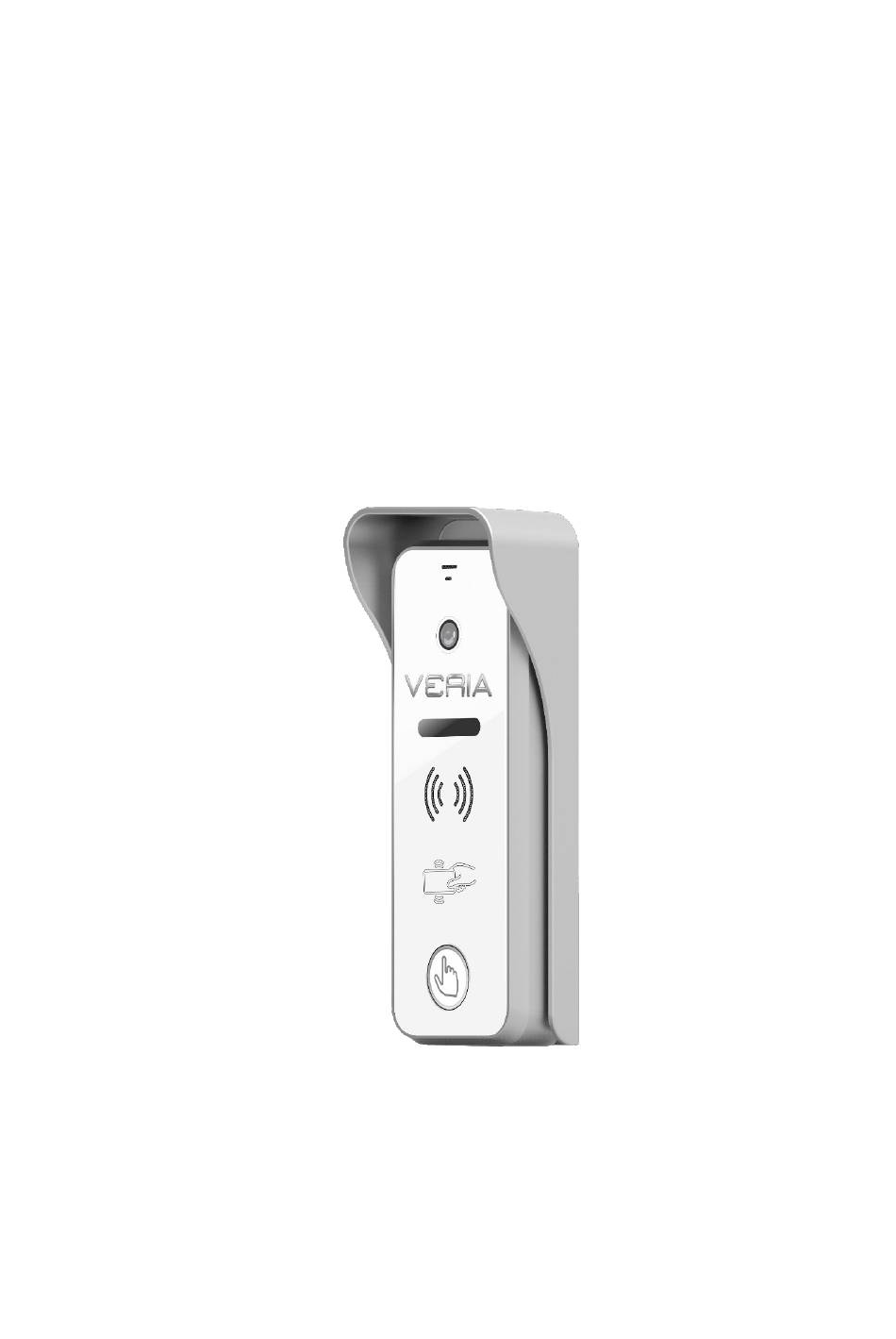

- Page 1 VERIA User's guide Videophone entry station Model: VERIA 831 RFID Veria Please read this manual carefully before use and keep it in case of further need 1. Description of the establishment...
- Page 2 Microphone Camera lens Infra diodes of night light Speaker Bell button Console snap holes Connection cable "RESET" button cover Fixation screw thread RFID reader 2. Contents of the package Component Number of pieces Note Entry station Fixing brackets For attachment to a flat surface Caret Cover ALU Dowle...
- Page 3 3. Technical specification of the equipment Camera 1/4"CMOS;color;700TVL;110° CVBS 1080P viewing angle Number of buttons Link 2-wire digital transmission Video signal/impedance 1 channel digital video Audio signal/impedance Digital audio Lock control 1x (NO, 12V/DC, max.2A) 1x (NC,12V/DC, max.0.35A) Night light Yes, 6 x IR diode Backlighting buttons Anti-vandal design...
- Page 4 1 R: RED 2 Y: YELLOW 3W: WHITE 4BK: BLACK 5GN: GREEN 6OG: ORANGE 7BN: BROWN 8BU: BLUE "RESET" button If the input station is experiencing non-standard behavior, restart the device, unplug the application, supply, press the reset remove the rubber button reset cover, connect the power button within 1 minute until 2x ton sounds.
- Page 5 3.Distance L1 means the total distance of the 2-wire bus. 4.The same bus should use the same conductor with the same specification. 1Installation may be carried out by a person who is knowledgeable and properly trained for VERIA systems.
- Page 6 DC24V/1A Source Power PW03A Adapter Cable type Monitor Power cable Monitor Power cable length length L2m length length L2m vst.unit L1m (MAX) vst.unit L1m (MAX) (MAX) (MAX) Parallel cable Parallel cable Twisted cable Twisted cable Cat-5 Standard PAIR CABLE CAT-5 Telephone cable line 2x0,2mm Parallel cable...
-
Page 7: Installation
5. Assembly The installation height of the entrance station is recommended about 140 cm from the floor. Do not install the station in a place exposed to direct sunlight and weather conditions. Installation 1) Remove the surfacemounting bracket from the rear of the entrance station and use it as a template for marking the location of the openings. - Page 8 6.RFID Access Control Management Warning: Access and access chips are set up in the VERIA monitor menu. In standby mode, attach the registered chip to the entrance station, the door will open after 1 beep. If the entry station reads an unregistered card, there will be a 2x beep to alert you to the unregistered chip.
- Page 9 adding additional access chips. After registering all chips, leave the ACCESS CHIP REGISTRATION interface. Note: The information about the registered chip is stored in the door station, so you can manage it on any internal monitor that connects to the door station. If it's a private door station, it can only be managed with call destination monitors.
-
Page 10: Warranty
Consumption Working temperature -25°C- +60°C Storage temperature -30°C- +60°C Dimensions 137x49x20mm Warranty SAFE HOME europe s.r.o. as a supplier, liable to the original buyer that this product will be free from any defects in material and design during normal use and operation for a period of 24months from the sale. - Page 11 SAFE HOME europe, s.r.o. Seat of the company: Havlíčkova 1113/47, 750 02 Přerov Czech Republic Tel.: +420 581 222 262 Website: www.veria.eu SAFE HOME europe, s.r.o. reserves the right to modify and change product specifications without notice. All materials are carefully inspected, but the company SAFE HOME europe, s.r.o.
