- Page 1 LCD display solutions User Manual 12.1” LCD AP-12 Aluminum front bezel NAP-12 Front NEMA4 / IP65 DP-12 Aluminum front cover OP-12 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-621-12-Q418V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, December 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
< Part. 1 > AP-12 / NAP-12 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-12 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 > OP-12 Package Content Structure Diagram &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Ap-12 / Nap-12
< Part 1 > AP-12 / NAP-12 12.1” LCD Display < 1.1 > Package Content AP-12 / NAP-12 12.1" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 2 pcs - M4* 6mm screw x 4 pcs - M4* 50mm screw x 4 pcs... -
Page 6: Structure Diagram & Dimension
< 1.2 > Structure Diagram Front view Side View AP-12 NAP-12 Bottom view Rear case LCD panel Rear view Rear view Protective 3mm glass 6mm aluminum front bazel Audio speaker ( for Audio or TV option ) LCD membrane Remote sensor Product Dimension Packing Dimension Gross... - Page 7 < 1.2 > Dimension 12.1” LCD Display Front View Side View AP-12 NAP-12 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-12-Q418V1 www.austin-hughes.com...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 4 pcs x 4 pcs x 2 pcs Hardware set part no. UV-BK#1 Steps ■ Install 2 mounting brackets with 4 x M4*6mm screws ■...
-
Page 9: Part 2

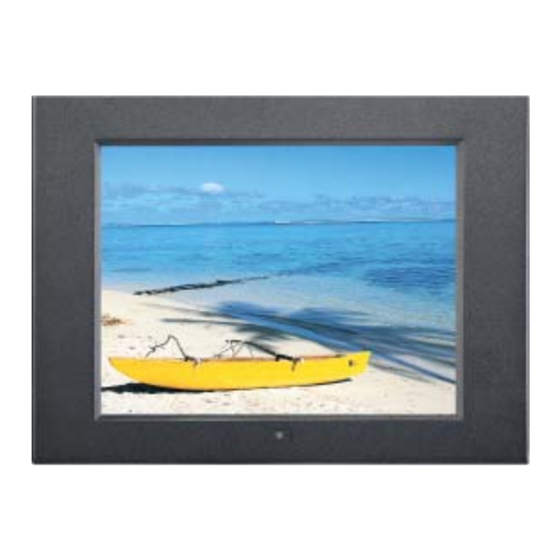

< Part 2 > DP-12 12.1” LCD Display < 2.1 > Package Content DP-12 12.1" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power AV2.2 upgrade I/O Audio Power... -
Page 10: Structure Diagram & Dimension
< 2.2 > Structure Diagram Front view Front view Side View DP-12 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) - Page 11 < 2.2 > Dimension 12.1” LCD Display Front View Side View DP-12 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-12-Q418V1 www.austin-hughes.com...
- Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 75*75mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-12-Q418V1 www.austin-hughes.com...
-
Page 13: Part 3
< Part 3 > OP-12 12.1” LCD Display < 3.1 > Package Content OP-12 12.1" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power AV2.2 upgrade I/O Audio Power S-Video out - in - in Video PC... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View OP-12 Bottom view Rear case LCD panel Audio speaker ( for Audio or TV option ) Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross... - Page 15 < 3.2 > Dimension 12.1” LCD Display Front View Side View OP-12 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-12-Q418V1 P.11 www.austin-hughes.com...
- Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 75*75mm ) M4 screw Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-12-Q418V1 P.12 www.austin-hughes.com...
-
Page 17: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations 12.1” LCD Display AP-12 NAP-12 DP-12 OP-12 Mechanical Design Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005... - Page 18 Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration AP-12 NAP-12 DP-12 OP-12 Physical Specifi cation Product ( W x D x H ) 344.7 x 68.2 x 256 253.7 x 58.1 x 191 341.7 x 62.2 x 253 inch 13.6 x 2.7 x 10.1...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 12.1” LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 20: Options
< Part 5 > Option < 5.1 > Option Table Options AP / NAP ✓ ✓ ✓ S-Video + Composite ( BNC ) ✓ ✓ ✓ DVI-D ✓ ✓ ✓ Audio ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ DC Power ✓... - Page 21 < 5.2 > AV2.2 Upgrade Options : 12.1” LCD Display ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
-
Page 22: Projected Capacitive ( 2-Point Touch )
< 5.3 > Options : Touchscreen & driver 12.1" USB Touchscreen Specifi cation e-Resistive Multi-touch e-Capacitive Model 12TPC-02 Projected Capacitive 5-Wire Resistive Capacitive Technology Single Single Touch Point Finger or Capacitive Stylus Finger or Stylus Finger Input Type 2048 x 2048 2048 x 2048 2048 x 2048 Resolution... - Page 23 < 5.3 > Options : Touchscreen & driver 12.1” LCD Display 12TPC-02 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 24 < 5.4 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
-
Page 25: Tv ( Analog )
< 5.5 > Options : TV ( Analog ) 12.1” LCD Display Audio Power S-Video DVI-D out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with DVI-D, VGA, S-Video, BNC, audio inputs and RC-2 remote controller. - Page 26 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
- Page 27 Intentionally Left Blank UM-UV-621-12-Q418V1 www.austin-hughes.com...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-12-Q418V1 P.24 www.austin-hughes.com...
