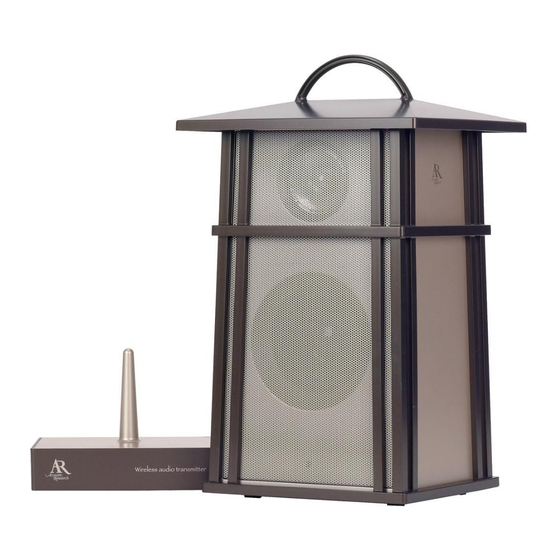

- Page 1 AW825 (SP3790) 900MHz Wireless Outdoor/Indoor Speakers System User’s Manual Please read before using the equipment...
- Page 2 INTRODUCTION This 900 MHz wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player.
-
Page 3: Component Identification

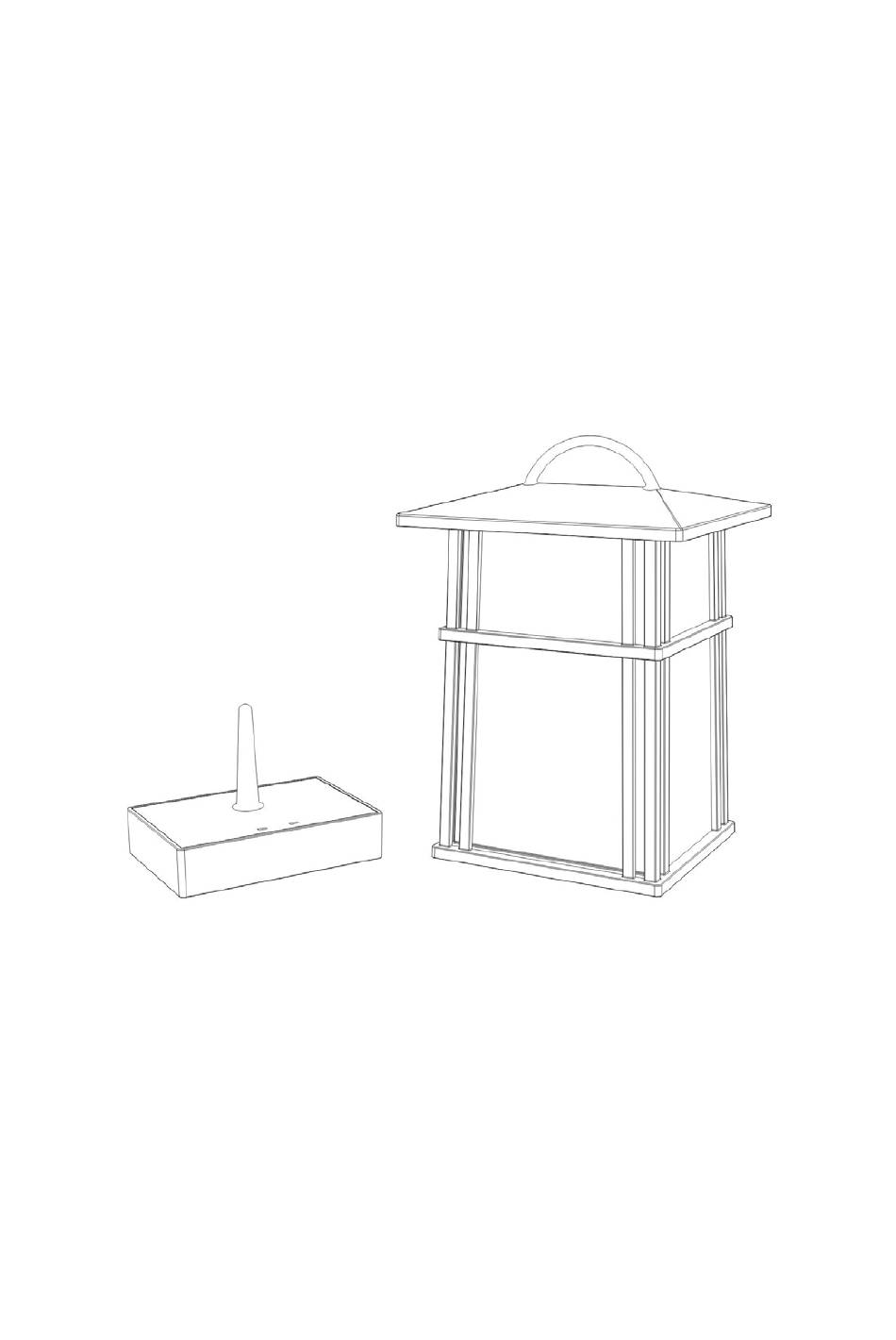

COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS... -
Page 4: Installation
INSTALLATION TRANSMITTER 1. Insert the antenna tube into the antenna wire. 2. Connect the supplied AC/DC power adaptor to an electrical wall outlet. 3. Plug the AC/DC power adaptor in the DC jack located on the rear of the transmitter. 4. -
Page 5: Operation
2. Press POWER button and turn the speakers ON. The POWER LED will light up in blue. Switch off the speakers by pressing the POWER button on the speaker, and the LED will be off. OPERATION 1. Turn on the audio source (TV or audio component) to which the transmitter is connected with. - Page 6 When transmitting / receiving over long distances, the signal from the system will become weaker. Switching Off a) For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes.
- Page 7 TROUBLE SHOOTING NO SOUND Ensure the AC/DC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter. Ensure the speaker is switch ON. Speaker’s battery capacity is too low, replace with new batteries or connect the AC/DC adaptors to the speakers.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Transmission Mode Carrier Frequency 900 MHz Operation Voltage Transmitter, DC 12V 200mA Speaker, 6 X AA size Alkaline batteries or DC 9V 1.2A adaptor. Frequency Response 40Hz – 12KHz Distortion S/N Ratio 65dB (typical) Channel Separation 50dB (typical) Operation Distance Up to 50 meters (open area) Output Power... - Page 9 This device must be used with the AC/DC adaptor supplied in the package. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
