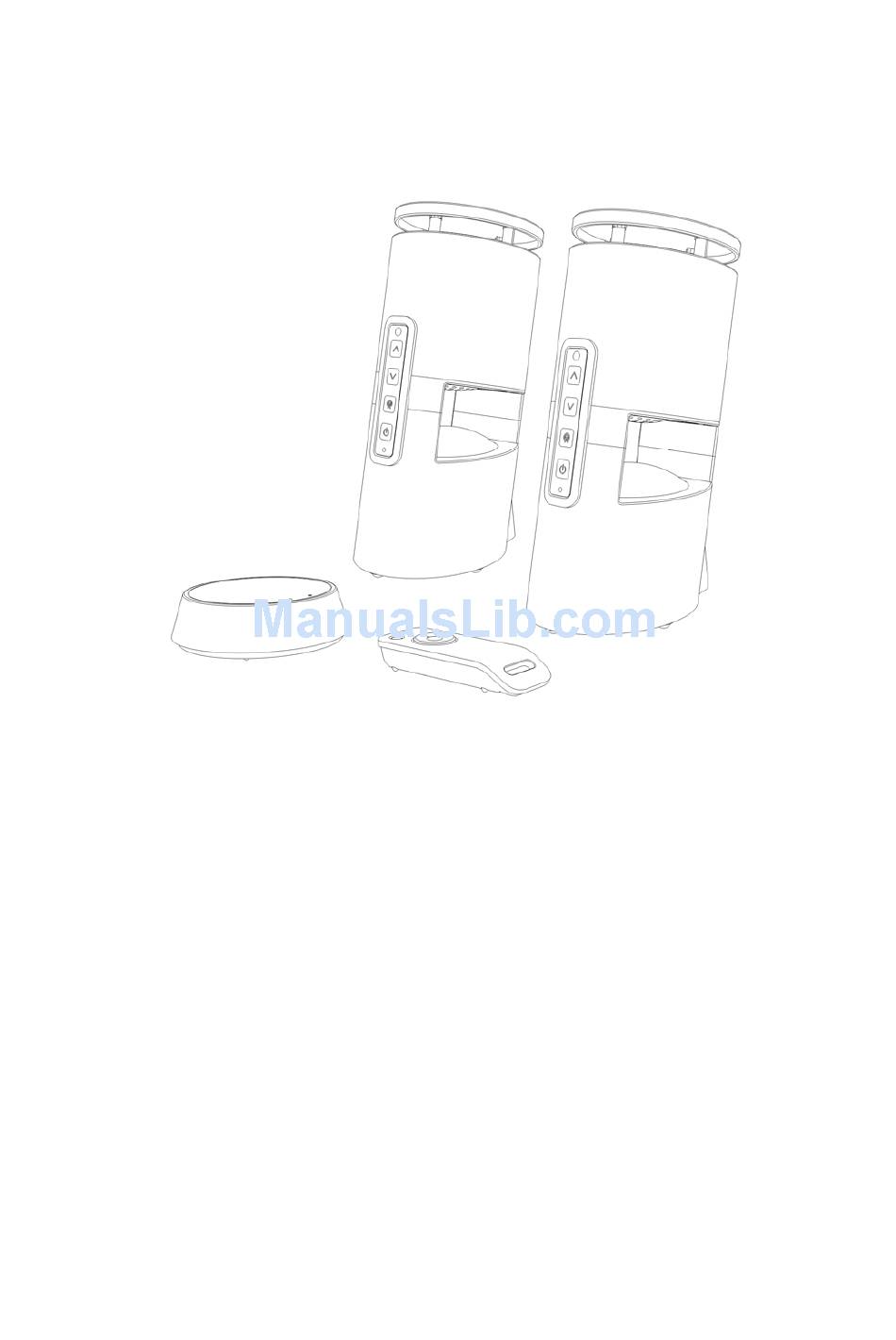

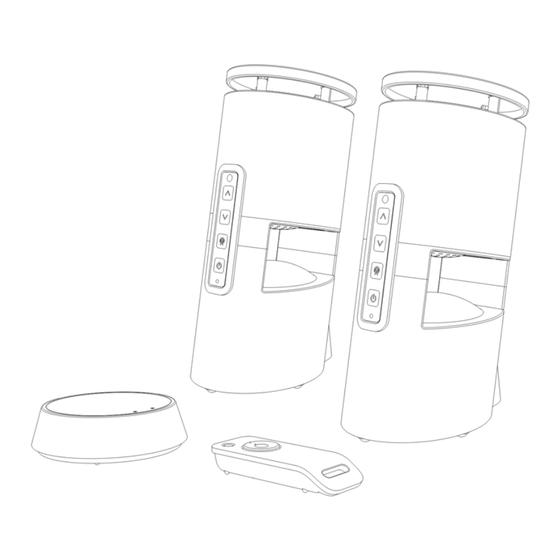

- Page 1 SP4590 Wireless Stereo 900MHz Speaker System User’s Manual Please read before using the equipment...
-
Page 2: Package Includes
INTRODUCTION This 900 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and iPod/CD/MP3/VCD/DVD player. -
Page 3: Remote Control
COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVERS REMOTE CONTROL Power LED Indicator Signal LED Indicator Audio In Channel Selector DC In For Transmitter InfraRed Receiver Volume Up Volume Down Tune Power On/Off Power/Signal LED Indicator Battery Compartment Left / Mono / Right DC In For Speaker Power On/Off Volume Up... - Page 4 INSTALLATION TRANSMITTER Plug the supplied 8V AC/DC power adaptor in the DC jack located on the rear of the transmitter. Connect the supplied 8V AC/DC power adaptor to an electrical wall outlet. The Power LED then glows. The transmitter can be connected to audio output jack of TV, Monitor, VCR, Radio, CD, MP3/iPod, VCD or DVD players with the cables provided.
- Page 5 SPEAKER RECEIVERS Remove the door of the battery compartment. Insert 6 pieces of ‘AA’ size ALKALINE batteries into the battery compartment with correct polarity under the speakers, then replace the door of battery compartment, or connect the provided AC/DC 9V Adaptor to the DC input jack under the speakers, then plug it to the wall AC outlet. REMOTE CONTROL Remove the door of the battery compartment.
-
Page 6: Operation
OPERATION Turn on the audio source to which the transmitter is connected with. The Signal LED on transmitter will light up. Select a channel of the transmitter for best performance in your location. Select the L/M/R (Left/Mono/Right) selector under the speakers, one to L (Left) and the other to R (Right) for the best stereo reception. - Page 7 NOTE : You should now be able to place the speakers freely from room to room without disruption. disruption should occur (signal breaks up), press the “TUNE” button under the speakers to maximize best reception. If you hear interference from other components, switch the channel control of transmitter, and then move the speakers to other free location.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 900 MHz Operation Voltage : Transmitter, AC/DC 8V 200mA Power Adaptor Speaker, AC/DC 9V 1.2A Power Adaptor, or 6 X ‘AA’ size Alkaline Batteries (not included) Remote Control, 2 x AAA battery (not included) Frequency Response : 40Hz –... - Page 9 This device complies with RSS 210 of Industry Canada. "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." This Class B digital apparatus complies with Canadian ICES-003."...
