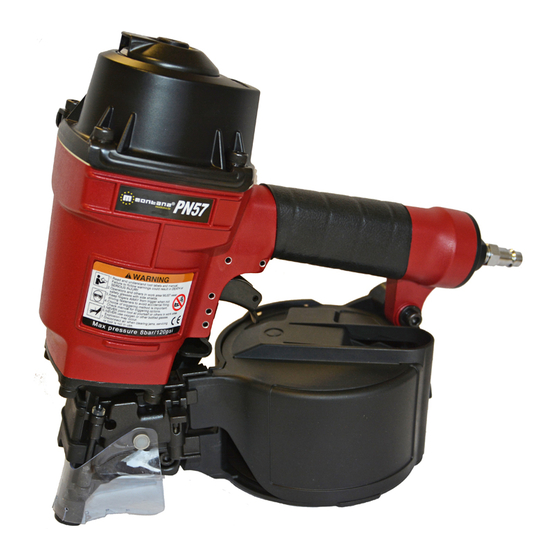

- Page 1 PN57 Pneumatic Coil Nailer OPERATIONS and MAINTENANCE MANUAL BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE NSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
PN57 Pneumatic Coil Nailer INTRODUCTION The tool is designed for high speed, high volume nailing. These tools will deliver efficient, dependable service when used correctly and with care. As with any fine power tool, for best performance the manufacturer’s instructions must be followed. Please study this manual before operating the tool and understand the safety warnings and cautions. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. -
Page 4: Specifications And Technical Data
PN57 SPECIFICATIONS AND TECHNICAL DATA SPECIFICATIONS HEIGHT 11-1/8" (283 mm) WIDTH 5-1/8" (131 mm) LENGTH 10-5/8" (270 mm) WEIGHT 5.5 lbs. (2.5 kg) RECOMMENDED OPER. PRESSURE 70 to 120 psi (5 to 8 bar) LOADING CAPACITY 300 to 350 Nails AIR CONSUMPTION 3.25 cfm (0.92 liter/cycle) at 90 psi (6 bar) press. -
Page 5: Directional Exhaust
OPERATION Refer to Operation Instructions and warnings on pages before proceeding to use this tool. TWO TYPES OF OPERATION FOR THIS SERIES TOOL. CONTACT TRIP – IDENTIFIED BY BLACK TRIGGER The common operating procedure on “Contact Trip” tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted. -
Page 6: Air Consumption, Regulators
AIR SUPPLY AND CONNECTIONS DO NOT USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXSPLODE, POSSIBLY CAUSING INJURY. FITTINGS: Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source. -
Page 7: Nail Loading
NAIL LOADING EYE PROTECTION which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. -
Page 8: Tool Operation
TOOL OPERATION EYE PROTECTION which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. -
Page 9: Tool Operation Check
TOOL OPERATION CHECK: CAUTION: Remove all fasteners from tool before performing tool operation check. 1. CONTACT TRIP OPERATION: a. With finger off the trigger, press the contact trip against the work surface. THE TOOL MUST NOT CYCLE. b. Hold the tool off the work surface, and pull the trigger. THE TOOL MUST NOT CYCLE. -
Page 10: Maintaining The Pneumatic Tool
PN57 DRIVER MAINTENANCE INSTRUCTIONS Worn driver causing poor quality or loss of power: Wear on the driving tip will affect the nail drive, giving symptoms of bent and incompletely driven nails, and damaged nail heads.
