Carlson BR 5 Series Use Tips

Overview

The BRx5 GNSS receiver is powered by two 5.4 amp-hour lithium ion batteries that provide up to 10
hours of operation. This article describes the battery status LED indicators, discusses battery life,
and recommends a procedure for determining when to hot swap the batteries

Battery Status

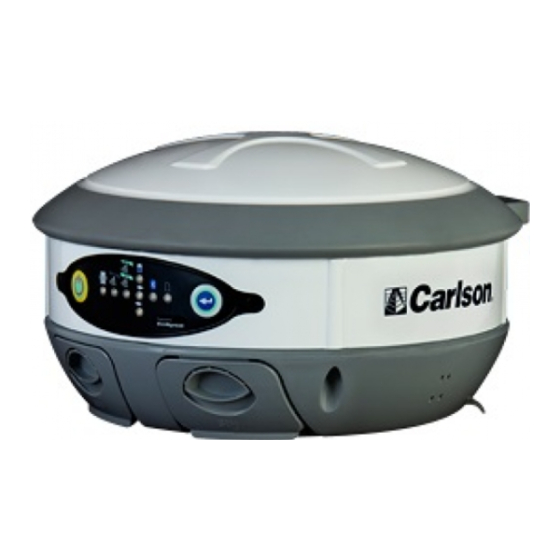

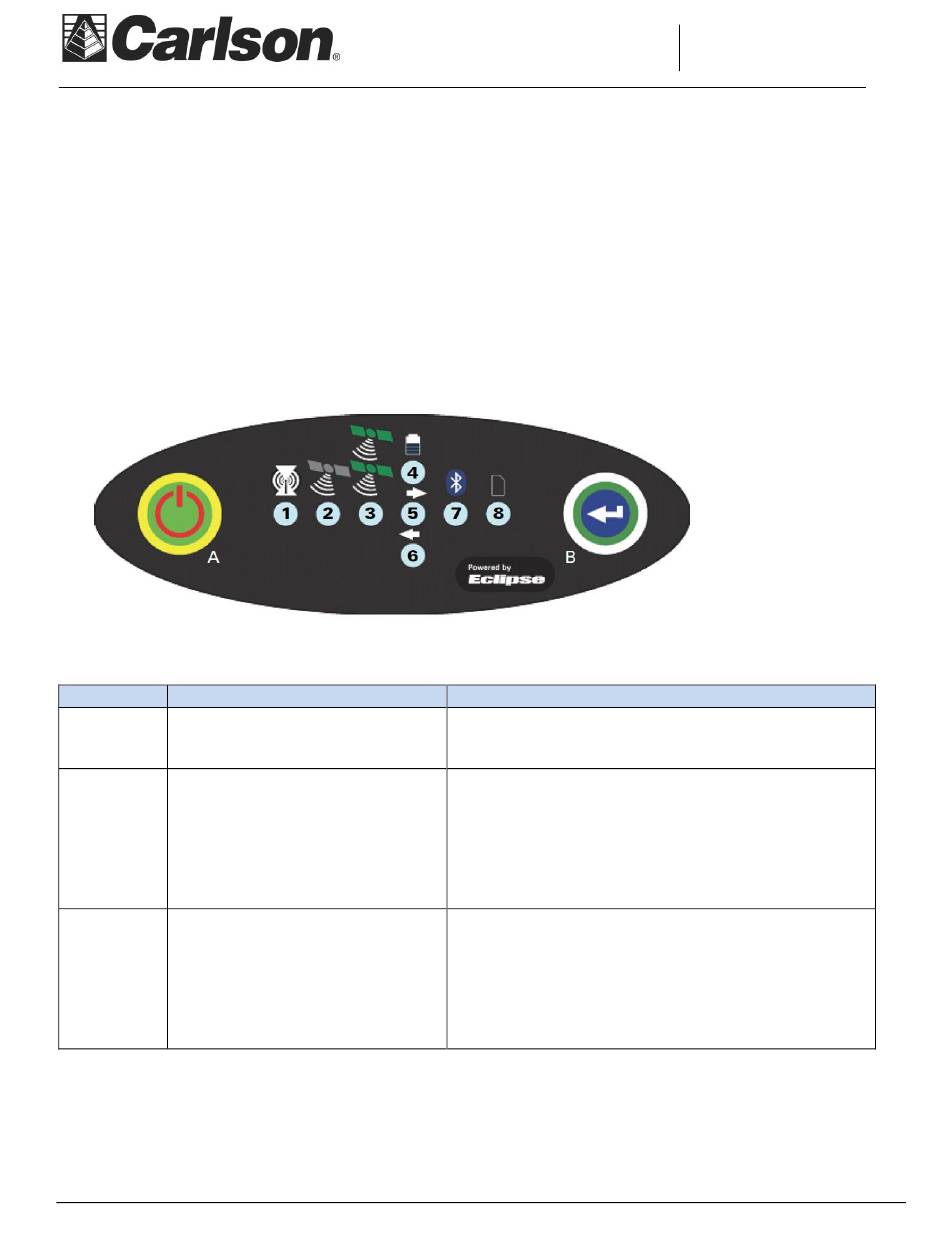

Battery status is displayed on the BRx5 control panel shown below:
LED indicators 4, 5, and 6 display battery or power status on the BRx5.
LED
4 External power status LED
Battery Status, right side
5
6 Battery status, left side battery

Battery Life

Each battery will typically power the BRx5 from 4 to 6 hours, depending on the BRx5 operating
mode. When the battery currently being used is depleted, the BRx5 will automatically switch to
Carlson Software Inc.
BRx5 Battery Use Tips
Released: January 21, 2015
Purpose
battery
BRx5 Battery Use Tips
January 16, 2015
Carlson Software Inc.
102 West 2 Street
nd
Maysville, KY 41056
Description
• Off – external power not present
• On (red) – external power present and in use
• OFF – battery not present
• ON (green) – battery charge > 50%
• ON (red) – battery charge < 50%
• Slow Blink (1/sec) – battery being used
• Rapid Blink (2-3/sec) – less than 10% battery
life remaining
• OFF – battery not present
• ON (green) – battery charge > 50%
• ON (red) – battery charge < 50%
• Slow Blink (1/sec) – battery being used
• Rapid Blink (2-3/sec) – less than 10% battery
life remaining Blink
www.carlsonsw.com
Phone: (606) 564-5028
Fax: (606) 564-6422
Page 1
