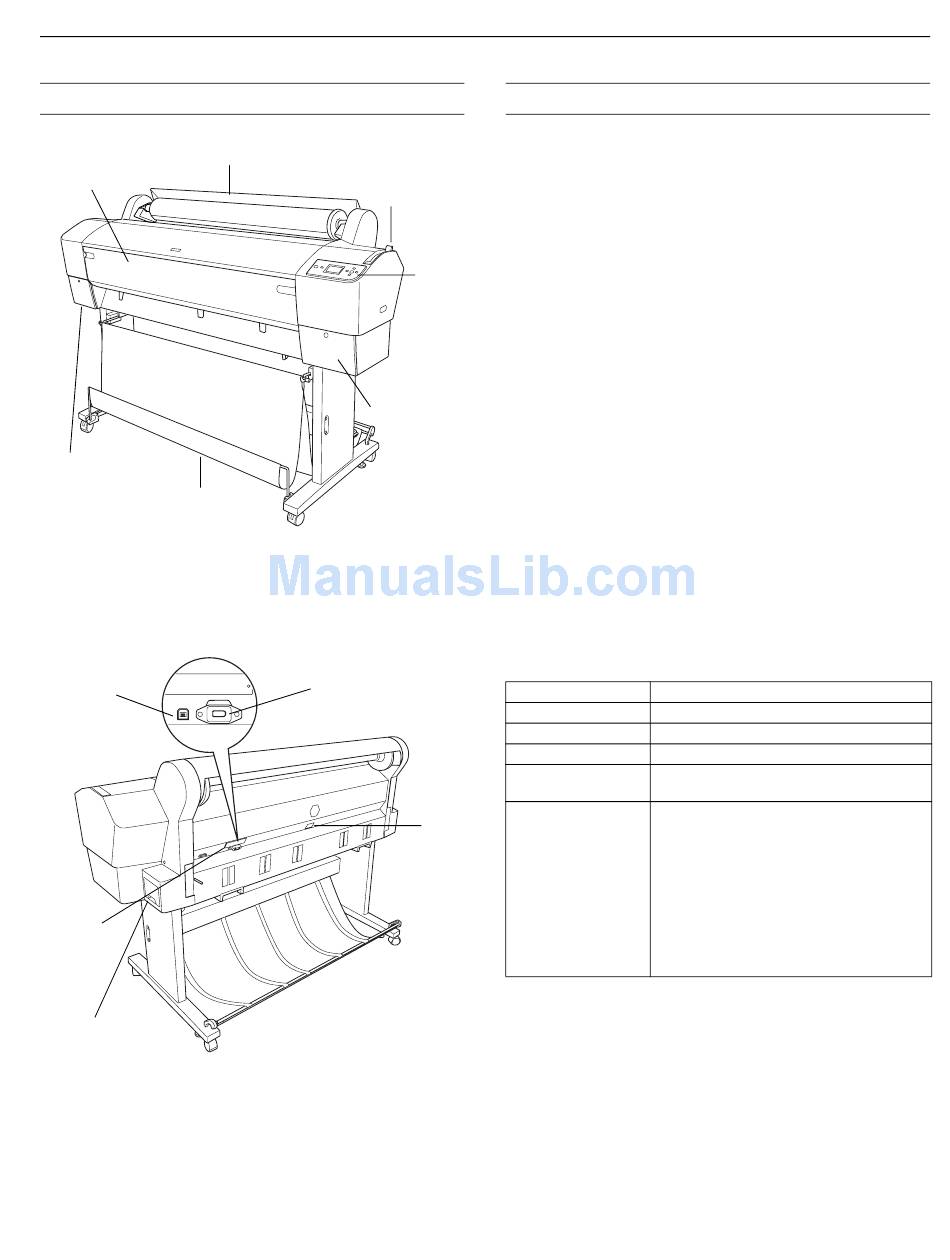

Printer Parts
-
Roll paper cover
Front cover
Ink cartridge
compartment
Paper
basket
USB
interface
connector
Optional
interface
card slot
cover
Maintenance
tank
Paper lever
Control
panel
Ink cartridge
compartment
IEEE 1394 FireWire
®
interface connector
AC
inlet
8/05
Epson Stylus Pro 7800 and 9800
Printer Specifications
Printing
Printing
On-demand ink jet
method
Nozzle
Black: 180 nozzles
configuration
matte black, light black, light light black)
Color: 180 nozzles
cyan, light magenta, yellow)
Maximum 2880 dpi × 1440 dpi
Resolution
Print direction
Unidirectional/Bidirectional
Control code
Epson ESC/P
Photographic Driver
Line spacing
1/6 inch or programmable in
1/1440-inch increments
Paper feed speed 245 ±10 milliseconds per 1/6-inch line
RAM
64MB (Epson Stylus Pro 7800)
128MB (Epson Stylus Pro 9800)
Electrical
Specification
Description
Input voltage range
90 to 264 V
Rated frequency range
50 to 60 Hz
Input frequency range
49 to 61 Hz
Rated current
1.0 A at 120 V
0.5 A at 220 V
Power consumption
Epson Stylus Pro 7800:
Approx. 50 W or less (ISO 10561 Letter
Pattern)
6 W or less in sleep mode
1 W or less in power off mode
Epson Stylus Pro 9800:
Approx. 55 W or less (ISO 10561 Letter
Pattern)
6 W or less in sleep mode
1 W or less in power off mode
Epson Stylus Pro 7800 and 9800 - 1
×
3 (photo black or
×
5 (cyan, magenta, light
®
Raster
Advertisement
Table of Contents
Related Manuals for Epson Stylus Pro 7800
Summary of Contents for Epson Stylus Pro 7800
-
Page 1: Printer Parts
1 W or less in power off mode Epson Stylus Pro 9800: Approx. 55 W or less (ISO 10561 Letter Pattern) 6 W or less in sleep mode 1 W or less in power off mode Epson Stylus Pro 7800 and 9800 - 1... -
Page 2: Safety Approvals
Thickness 3.15 to 19.7 mil (0.8 to 0.5 mm) 2 - Epson Stylus Pro 7800 and 9800 Notes: ❏ Poor quality paper may reduce print quality and cause paper jams and other problems. If you encounter problems, switch to a higher grade of paper. -
Page 3: Consumables And Accessories
Yellow T562400 * A new printer can be initially charged with matte black ink instead of the standard photo black, or you can change the ink later using the Black Ink Conversion Kit included with your printer. Changing black ink uses about 20% of your ink and maintenance tank, and should be performed infrequently. -
Page 4: Control Panel Menus
JOB INFORMATION CUSTOM PAPER PRINTER VERSION STATUS PRINTABLE PAGES INK LEVEL MAINTENANCE TANK USAGE COUNT CLEAR USAGE COUNT 4 - Epson Stylus Pro 7800 and 9800 Menu PRINTER Menu STATUS (continued) Settings/Explanation Available only if REMAINING PPR SETUP is enabled in... -
Page 5: Printing A Status Sheet
, then press Menu 3. Raise the ink lever(s) to the unlocked position. 4. Remove the empty ink cartridge(s) from the printer. appears INK LOW 8/05 Epson Stylus Pro 7800 and 9800 Epson Stylus Pro 7800 and 9800 - 5... -
Page 6: Nozzle Check
Banding can be caused by several problems, such as clogged print head nozzles or a misaligned print head. It can also be caused by using a paper that is not defined in the Epson printer driver or in a third-party RIP. To correct this problem, make sure you select the correct paper type in the driver. -
Page 7: Head Alignment
Follow these steps to align the print head using the control panel: 1. Make sure the printer is turned on. Then load Epson Enhanced Matte, Doubleweight Matte, Premium Luster Photo paper, or the paper that came with the printer. -
Page 8: Installing The New Cutter Blade
WARNING : The blade is sharp. Be careful when removing it. 8. Carefully remove the cutter blade. 8 - Epson Stylus Pro 7800 and 9800 appears on the Installing the New Cutter Blade Remove the new blade from its package, then follow these steps to install it: 1. -
Page 9: Maintenance Tank Full
Tank full 40–21% Tank error or no maintenance tank The Epson Stylus Pro 7800 has one maintenance tank (on the right side), and the 9800 has two (one on either side). Replacement tanks are available from Epson (part number C12C890191). - Page 10 Epson Stylus Pro 7800 and 9800 10 - Epson Stylus Pro 7800 and 9800 8/05...
