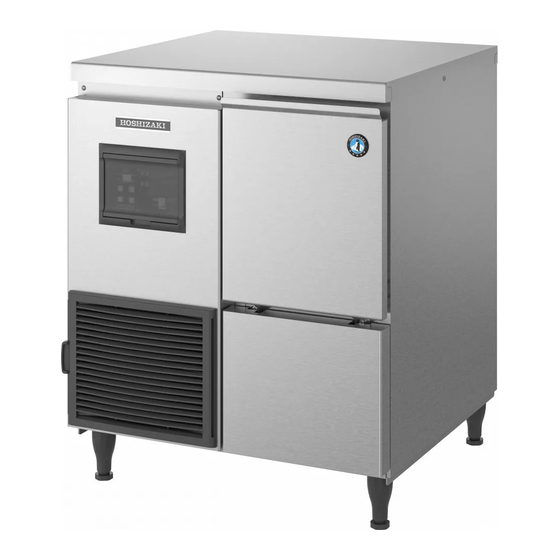

Hoshizaki FM-120KE-HC Instruction Manual
Self-contained ice maker
Hide thumbs
Also See for FM-120KE-HC:
- Instruction manual (72 pages) ,
- Service manual (55 pages) ,
- Original installation manual (45 pages)
Table of Contents
Advertisement
Quick Links
SELF-CONTAINED ICE MAKER
MACHINE A GLACE A BACINTEGRE
EISBEREITER MIT EINGEBAUTEM VORRATSBEHÄLTER
IJSMACHINE MET INGEBOUWDE BUNKER
MÁQUINA DE CUBITOS DE HIELO AUTÓNOMA
MACCHINA PER LA PRODUZIONE DI GHIACCIO AUTOCONTENUTA
INSTRUCTION MANUAL
(original instructions)
NOTICE D'UTILISATION
(instructions traduites)
BEDIENUNGSANLEITUNG
(Übersetzung)
GEBRUIKSAANWIJZING
(vertaalde instructies)
MANUAL DE INSTRUCCIONES
(instrucciones traducidas)
MANUALE D'ISTRUZIONI
(traduzione)
FOR END USER
POUR UTILISATEUR
FÜR DEN ENDKUNDEN
VOOR DE GEBRUIKER
PARA USUARIO
PER L'UTENTE FINALE
Telford 70 Stafford Park 7, Telford, Shropshire TF3 3BQ UK
FM-120/80KE-HC
FM-120KE-HC
FM-120KE-HCN
FM-120KE-50-HC
FM-120KE-50-HCN
FM-80KE-HC
FM-80KE-HCN
FM-60KE-HC
CM-50KE-HC
L1F114202 (021521)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hoshizaki FM-120KE-HC
Summary of Contents for Hoshizaki FM-120KE-HC
- Page 1 FM-120KE-HC SELF-CONTAINED ICE MAKER MACHINE A GLACE A BACINTEGRE FM-120KE-HCN EISBEREITER MIT EINGEBAUTEM VORRATSBEHÄLTER FM-120KE-50-HC IJSMACHINE MET INGEBOUWDE BUNKER FM-120KE-50-HCN MÁQUINA DE CUBITOS DE HIELO AUTÓNOMA FM-80KE-HC MACCHINA PER LA PRODUZIONE DI GHIACCIO AUTOCONTENUTA FM-80KE-HCN FM-60KE-HC INSTRUCTION MANUAL CM-50KE-HC (original instructions) NOTICE D’UTILISATION...
-
Page 2: Table Of Contents
ENGLISH IMPORTANT SAFETY INFORMATION ....................1 I. INSTALLATION INSTRUCTIONS ......................3 1. CONSTRUCTION ........................... 3 2. LOCATION .............................3 3. ELECTRICAL CONNECTIONS ......................4 4. WATER SUPPLY AND DRAIN CONNECTIONS ................4 II. OPERATING INSTRUCTIONS ......................5 1. START UP ............................5 2. SHUT DOWN ..........................5 3. - Page 3 NEDERLANDS BELANGRIJKE VEILIGHEIDSINFORMATIE ..................30 I. INSTALLATIE-INSTRUCTIES ......................32 1. CONSTRUCTIE ..........................32 2. PLAATSING ..........................32 3. ELEKTRISCHE AANSLUITINGEN ....................33 4. AANSLUITING VAN WATERTOEVOER- EN WATERAFVOERLEIDINGEN ......33 II. BEDIENINGSINSTRUCTIES ......................34 1. OPSTARTEN ..........................34 2. UITZETTEN ..........................34 3. DE IJSMAKER GEREEDMAKEN VOOR LANGDURIGE OPSLAG ..........34 III.
- Page 4 ENGLISH IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. Indicates a hazardous situation which, if not avoided, could result in death or WARNING serious injury.
- Page 5 * If the supply cord is damaged, it must be replaced by a replacement cord available from Hoshizaki Parts/Service Centres. * Do not touch the electrical parts or operate the switches with damp hands. * This appliance is not intended for use by persons (including children) with reduced physical,...
-
Page 6: Installation Instructions
Front Panel Louver Operation Panel Air Filter Front Cover Air Filter [FM-120KE-HC, 80KE-HC] [FM-60KE-HC, CM-50KE-HC] 2. LOCATION WARNING This icemaker is not intended for outdoor use. The icemaker should not be located next to ovens, grills or other high heat producing equipment. -
Page 7: Electrical Connections
* Icemaking water must be potable water. Where scaling can be caused by water quality, installation of an external filter or softener is recommended. Contact your local water treatment professional or Hoshizaki service agent. * A plumbing permit and services of a licensed plumber may be required in some areas. -
Page 8: Operating Instructions
ENGLISH II. OPERATING INSTRUCTIONS CAUTION Do not step into the storage bin, or put your hands into the machine compartment inside the storage bin. Children can get trapped inside, or the icemaking mechanism may suddenly move, resulting in injury. NOTICE All parts are factory-adjusted. -
Page 9: Maintenance
1) Either mix 1 litre of water with 4 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed. 2) Soak the scoop in the solution for more than 3 minutes. Rinse thoroughly, and shake to remove surplus liquid. -
Page 10: Inspection And Maintenance
Replacement of these parts is required if wear exceeds factory recommendations. Their service life, however, depends on water quality and environment. More frequent inspection and maintenance are recommended in bad or severe water conditions. Consult with your local Hoshizaki service agent about inspection and maintenance service. -
Page 11: Before Calling For Service
Once the unit shuts down after 500 hours, the operation can be resumed by turning off the operation switch and turning it back on. But the unit shuts down again after 500 hours. To resume the operation, contact your local Hoshizaki service agent for the required replacement. -
Page 12: Disposal
5. WARRANTY Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the “warranty period”. The warranty shall be effective for two years from the date of installation. -
Page 13: Specifications
ENGLISH SPECIFICATIONS Model FM-120KE-HC FM-120KE-HCN FM-120KE-50-HC Type Air-cooled, flake ice Air-cooled, nugget ice Air-cooled, flake ice Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz Electric Consumption 355W 355W 355W Ice Production per 24h 125kg...
