4. Solar Panel Position
To ensure correct functioning of the solar panel, it
is important that the energizer with the solar panel
is directed towards the sun. A carefully oriented
solar panel will prolong the life span of the batteries
considerably.
5. Connecting the Energizer
Connecting the fence
Use a fence connecting cable or earthing wire
(1.6 mm) (not included) to connect the energizer to
the fence.
Connect this cable to the blue connector at
the right with the symbol. First unscrew the
connector and tighten it fi rmly again after
connecting the cable.
Connect the other end of the cable to the fence
wire.
Turn the system on with the ON/OFF switch
located underneath the solar panel. The light on the
device will start to fl ash, indicating that the device
is working. The fence is now live.
Is part of the fence located near a street? Then
make sure to install a 'Caution, live wire!' warning
sign (not included).
6. Installing the electric fence
The electric fence will deliver a light electric pulse
when touched, effective but completely harmless
to humans and animals. The electric fence instils
caution and will keep other pets and animals away
from your garden, while teaching your own pet to
stay within the boundaries.
Planning
Good preparation is important. First make a sketch
of your enclosure and make sure you have enough
material to install the fence. Elephant advises a
2-wire electric fence for small dogs, 3 to 4 wires for
large dogs and a 3-wire electric fence for cats.
The distance between the wires should be between
15 and 35 cm for dogs (depending on the breed)
and between 15 and 20 cm for cats.
In the sidebar you will
fi nd the averages often
applied to dog and cat
fences.

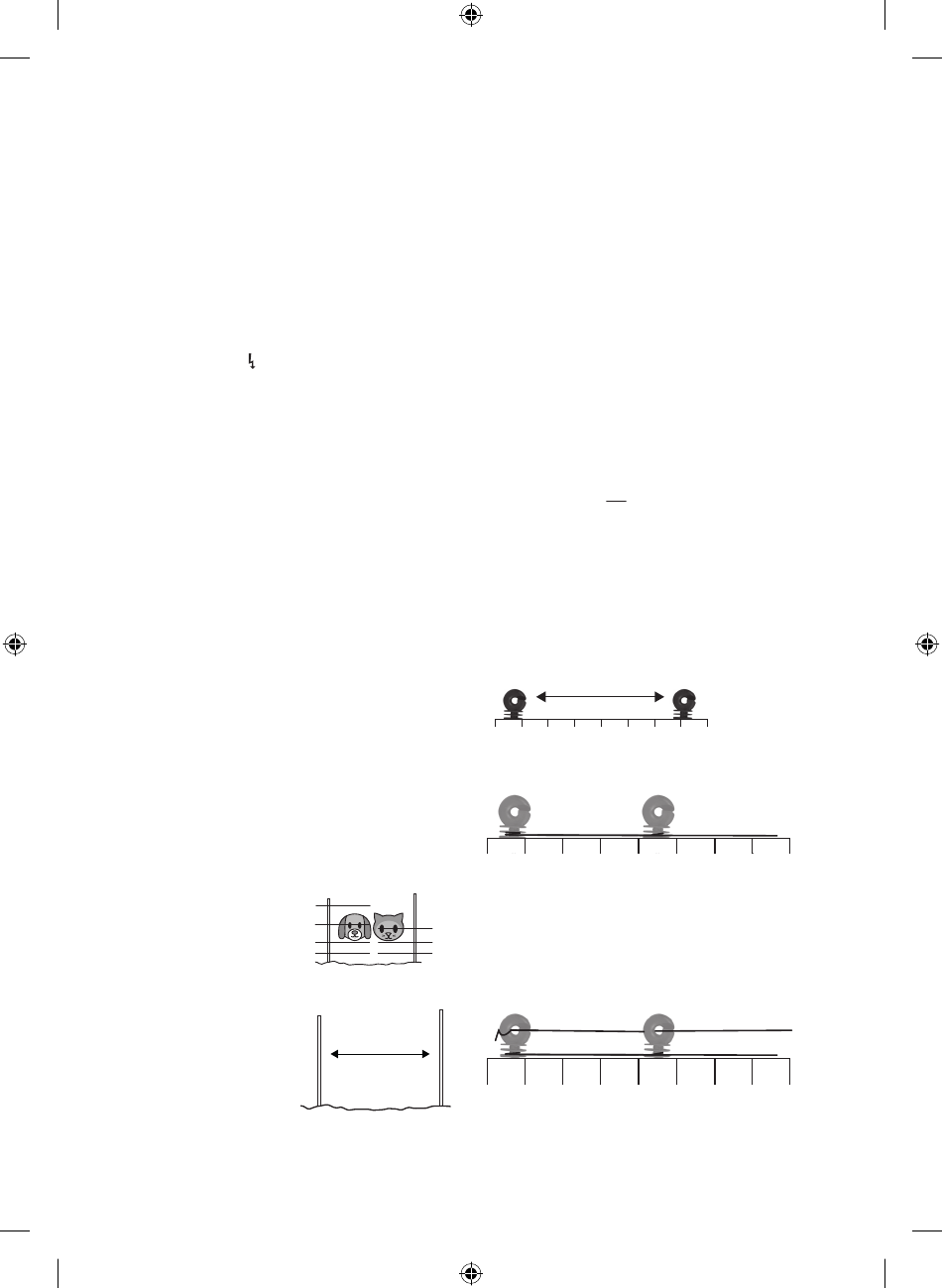

Installation in a garden/yard or around an aviary
Install plastic or
wooden posts every
4 metres. Preferably
use a small wooden
post for the fi rst and
last post(s) to make the
fence more stable.
