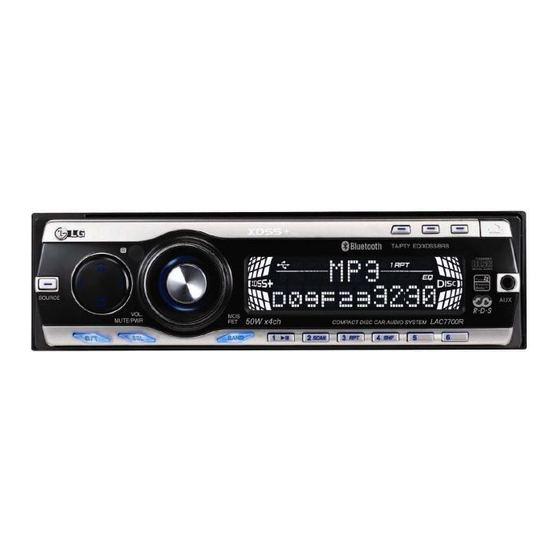

- Page 1 LAC7700_ENG CAR CD/MP3/WMA Receiver OWNER’S MANUAL MODEL : LAC7700/7710 Please read this instruction booklet carefully and completely before installing, operating or adjusting this product. P/NO : MFL36538232...
-
Page 2: Safety Note
ENGLISH Safety note CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT SPLIT COVER(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user about the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. - Page 3 Bluetooth ® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. Operating condition for using a Bluetooth function - Close windscreen.
-
Page 4: Table Of Contents
MP3/WMA Disc compatibility with this unit is limited as follows: 1. Sampling Frequency / 8 - 48kHz (MP3) 22.05 - 48kHz (WMA) 2. Bit rate / within 8 - 320kbps (include VBR) (MP3) 32 -320kbps (WMA) 3. CD-R/CD-RW file system should be “ISO 9660” 4. -
Page 5: Control Panel
Attachable control panel 1 Attach part A of the control panel to part B of the unit. 2 Attach part C of the control panel to part D of the unit while pushing the control panel to right. 3 Close the control panel. Caution •... -
Page 6: Remote Control
Remote control Number [0 -9] Power [POWER] / Mute • CD Skip / Search Select [MENU/SEL] M M? Source [SRC] • Seek / Tune M M? Play / Pause B/X Intro Scan [SCAN] Display [DISP.] Shuffle [SHF] • MP3 Track -10 •... -
Page 7: Connection Diagram
Removing the existing receiver unit If there is already an installation sleeve for the receiver unit in the dashboard, it must be removed. 1 Remove the rear support from the unit. 2 Remove the control panel and trim ring from the unit. 3 Insert the lever A into the hole on one side of the unit. - Page 8 Before connecting, make sure that the ignition switch is set to OFF, and remove the battery # terminal to avoid short circuits. To Speaker To Vehicle Microphone Plug PHONE MUTE (ORANGE) GROUND(-) (BLACK) DIMMER (PINK) DIMMER SWITCH TO IGNITION (RED) IGNITION SWITCH TO BATTERY(+) (YELLOW) POWER ANTENNA (BLUE)
-
Page 9: Basic Operation
Connecting to Auxiliary Equipment (Optional) Connect the AUDIO OUTPUT jack of this unit to the AUDIO INPUT jack of the Auxiliary Equipment. FL (Front Left) RL (Rear Left) RR (Rear Right) FR (Front Right) Microphone Plug Microphone To AUDIO OUT With the sun visor up, install the microphone. - Page 10 Adjusting the volume Rotate MUTE/PWR (Press VOLUME on the remote control) to adjust the sound level. Note When you turn the unit off, the current volume level is automatically memorized. Whenever you turn the unit back on, it will operate at the memorized volume level. Mute 1 Press MUTE/PWR (POWER/ on the remote control) to cut the sound.
- Page 11 Using the EQ (Equalizer) Press EQ repeatedly. The indicator lights up in the following order. Pop t Classic t Rock t Jazz t Vocal t Salsa t Samba t User1 t User2 t Off • Pop : Optimized for R&B, Soul and Country music. •...
-
Page 12: Bluetooth Operation
Bluetooth operation Using a Bluetooth wireless connection Your unit supports Bluetooth wireless connections. You can set up a wireless link with Bluetooth phone. Starting Bluetooth on your phone Your phone’s Bluetooth feature may be set to off by default. To use your car Bluetooth feature, Bluetooth must be turned on in your phone. - Page 13 Auto Connection On / Off ON : Bluetooth phone with a previous record showing that it has successfully connected will automatically start the connection process when starting the car. OFF : Cancels the function. Auto Answer On / Off ON : If you set the automatic answering function on, hands-free answering call is possible.
- Page 14 Auto transfer It is possible to select the automatic connection between your Bluetooth phone and this unit. 1 Press B/T to answer the call. 2 Press B/T again. The “Private” is displayed. If the private mode is selected on the unit, press B/T to return to the call to hands-free mode.
- Page 15 Paring your unit and Bluetooth device (MP3 Player, MP3 Phone...) When you activate your Bluetooth device’s linked unit, you can listen to MP3 with wireless connections. The method of use for a Bluetooth device is the same as when using a Bluetooth phone. - Refer to the page 12 for details.
-
Page 16: Radio Operation
Radio operarion Listening to radio stations 1 Press SOURCE to select the tuner. 2 Press the BAND repeatedly to select a band. The indicator lights up in the following order. FM1 t FM2 t FM3 t MW(AM) 3 Auto Search : Press I I i i ( on the remote control). - Page 17 Pause 1 Press B B /X during playback. 2 To return to playback, press B B /X again. Skip to next track/file Press briefly i i ( on the remote control) to select the next track or file. M M? Skip to previous track/file Press briefly I I ( on the remote control) within 3 seconds of playing time.
-
Page 18: Aux Operation
CD TEXT / ID3 TAG When playing a disc containing information, you can see the CD TEXT/ID3 TAG information. In CD TEXT, information about the disc (disc title, performer and track title) is recorded. In a ID3 TAG, information about the file (album title, performer name, song title) is recorded. In a WMA Content, information about the file (song title, performer name) is recorded. -
Page 19: Troubleshooting
Troubleshooting : Symptom / : Cause The loaded disc is of a type this unit : Correction cannot play. Check what type the disc. Power doesn’t turn on. / The unit doesn’t operate. No sound is heard. / The volume Leads and connectors are not properly level will not rise. -
Page 20: Bluetooth Phone Compatibility List
AUX SECTION Frequency Response ..........20 Hz-20 kHz S/N Ratio .
