Grossenbacher Systeme EP-300 Product Manual

Ethernetpanel

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

DEVICE DESCRIPTION

EthernetPanel

Hardware EthernetPanel

Grossenbacher Systeme AG

Spinnereistrasse 10, CH-9008 St. Gallen

Phone +41 (0)71 243 29 29 / Fax +41 (0)71 243 29 28

info@gesys.ch / www.gesys.ch

DVS 48961-V4.0

EP-300

Grossenbacher Systeme GmbH

Ruhrstrasse 15, DE-63452 Hanau

Phone +49 (0)6181 6751 999/ Fax +49 (0)6181 6751 998

sales.de@gesys.ch

Table of Contents

Need help?

Do you have a question about the EP-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grossenbacher Systeme EP-300

Page 1 DEVICE DESCRIPTION EthernetPanel Hardware EthernetPanel EP-300 Grossenbacher Systeme AG Grossenbacher Systeme GmbH Spinnereistrasse 10, CH-9008 St. Gallen Ruhrstrasse 15, DE-63452 Hanau Phone +41 (0)71 243 29 29 / Fax +41 (0)71 243 29 28 Phone +49 (0)6181 6751 999/ Fax +49 (0)6181 6751 998 info@gesys.ch / www.gesys.ch...
Page 2 Grossenbacher Systeme AG. Grossenbacher Systeme AG does not accept any liability for damages arising from the use of any incorrect or incomplete information contained in this documentation or any information missing therefrom.
Page 3 No liability is accepted for claims for damages arising from a failure or functional defect in the device. All data specified in this document does not represent guaranteed specifications in the legal sense. © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 5: Table Of Contents
10 Diagnostics ..............39 11 Maintenance and repair..........41 12 Technical data.............. 43 13 Disposal................ 45 14 EU Conformity and Standards ........47 15 Revision history............49 16 Alphabetical index ............51 © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 7: Explanation Of Symbols
Important information about the product or the relevant section of the document, requiring the particular attention of the reader. The “Information” pictogram has the following meaning: Indicates important and instructional information. © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 9: Introduction

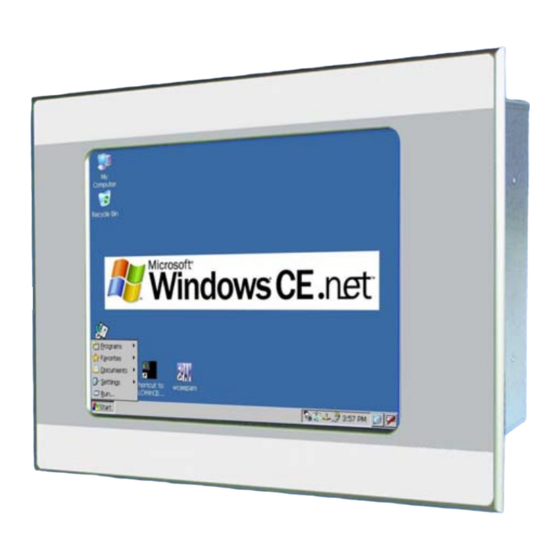

EthernetPanel Hardware EthernetPanel 2 Introduction Grossenbacher Systeme AG starts the openAutomation concept with the EthernetPanel devices. They are based on a 266MHz-x86-CPU with WindowsCE and Ethernet-on-board. In the basic configuration the device can be used as „HMI“ or as a user programmable „HMI-Open“...
Page 11: Device Versions
Resistive touch-screen EP-300-12I-000 Ord.No : 50 81 338 EthernetPanel 12” TFT 800x600 64k colours Infrared touch-screen EP-300-12R-000 Ord.No : 50 81 340 EthernetPanel 12” TFT 800x600 64k colours Resistive touch-screen © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 12: Accessories
Licence label Soft-Motion for multi axis (incl. CNC, CAM, Trafo) Runtime-Licence Ord.No : 50 56 445 Codesys TargetVisu Licence label Codesys Target-Visualisation Runtime-Licence Ord.No : 50 56 448 Codesys WebVisu Licence label Codesys Web- Visualisation DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 13: Features
Type 24VDC, NOT isolated Device cooling Type passive (fanless) CompactFlash™ memory media are NOT suitable for cyclical data logging due to the limited number of write cycles (normally 100,000). © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 15: Commissioning
Description Function earth Kap. 5.2 24VDC power supply Kap. 5.2 Ethernet Kap. 5.6 USB 1+2 Kap. 5.7 COM1 Kap. 5.8 Kap. 5.9 CompactFlash™ Kap. 5.10 PC/104 Slot Kap. 5.11 © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 16: Connecting The Power Supply
The internal battery is used for backing up the real-time clock and has a lifetime of at least 5 years. The battery can not be replaced by the user. DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 17: Preparing The Shield Connections
Connection work should be carried out with special care in order to ensure trouble-free operation. The EMC values stated in the technical data can only be guaranteed if the cables are prepared according to the following specifications. © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 18: Connecting Ethernet
The USB Interface is compatible to USB-standard Version 1.1 USB2 The use of the USB-Interface requires support by the operating system. Cables connected to the USB must be laid separately from the low-voltage cables. DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 19: Connection For Com1 Serial Interface (Rs232)
Sub-D 9 Pole male Pin No. Assignme Function Connect Negative data signal 6 7 8 9 Signal Ground (ground potential) Signal Ground (ground potential) Positive data signal HIGH Case Case Cable shield © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 20 (120 Ohm between Pin 2 and Pin 7 of the Sub-D connector) must be connected at the beginning and the end of each CAN bus. Do not swap around the two signal wires! Interface 1 Shield Protective ground Protective ground DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 21 Ground. Pins 4, 5 and 8 must not be connected! The CAN bus driver is fed internally. Baud rate and cable lengths Baud rate Max. length 20kBit/sec 2500m 25kBit/sec 2000m 50kBit/sec 1000m 100kBit/sec 650m 125kBit/sec 500m 250kBit/sec 250m 500kBit/sec 100m 1Mbit/sec © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 22: Inserting / Removing The Compactflash
The EthernetPanels devices can carry one PC/104 module (e.g. Profibus DP-Master/Slave or MPI) which must be inserted factory made. The PC/104 interface is compatible to standard 8-bit ISA-Bus. The PC/104-module must be inserted factory made. DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 23: Operation
For a detailed description of the system-settings on operating system level please refer to the corresponding software-documentation. (e.g. System description WindowsCE) © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 25: Mounting Instructions
Avoid tightening torques of greater than 0.5 Nm as this could otherwise damage the device. The thickness of the front panel must not exceed 5 mm. © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 26: Front Panel Cutout 5,7" To 12.1
Tolerance for panel cutout +0/-1 mm The thickness of the front panel must not exceed 5 mm. Front panel cutout - 5.7" IR Front panel cutout - 5.7" Resistive & 6.5" DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 27 EthernetPanel Hardware EthernetPanel Front panel cutout - 10.4“ Front panel cutout - 12.1“ © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 28: Mechanical Dimensions - Frontside 5,7" To 12.1
EthernetPanel Hardware EthernetPanel 7.4 M 5,7“ 12.1“ ECHANICAL DIMENSIONS RONTSIDE Front dimensions - 5,7" IR Front dimensions - 5,7" Resistiv DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 29 EthernetPanel Hardware EthernetPanel Front dimensions - 6,5" Resistive Front dimensions - 10.4“ IR © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 30 EthernetPanel Hardware EthernetPanel Front dimensions - 10.4“ Resistive Front dimensions - 10.4“ IR DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 31 EthernetPanel Hardware EthernetPanel Front dimensions - 10.4“ Resistive © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 32: Mechanical Dimensions - Rear Side 5,7" To 12.1
EthernetPanel Hardware EthernetPanel 7.5 M 5,7“ 12.1 ECHANICAL DIMENSIONS EAR SIDE Dimensions rear side - 5.7“ IR DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 33 EthernetPanel Hardware EthernetPanel Dimensions rear side - 5.7“ & 6.5" Resistive © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 34 EthernetPanel Hardware EthernetPanel Dimensions rear side - 10.4“ DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 35 EthernetPanel Hardware EthernetPanel Dimensions rear side - 12.1“ © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 37: Notes On The Touch-Screen
For further details about the touch-calibration see manual system description WindowsCE or EPAM manual (Button-Action „Touch_calibrate”). For an optimal operation of the resistive touch-screen it is recommended to use a touch-pen for the calibration. © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 38: Power Up Function Test
During the startup the touch screen carries out a function test. Devices with resistive touch-screen Because of function principle it is not possible to do a function test on devices with resistive touch-screen. DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 39: Backlight, Contrast
(crosslink/direct). The LINK LED is lit when the connection is correct The ACT LED is lit (flashing during transfer) with a correct data transfer - Incorrect/invalid IP address set © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 41: Maintenance And Repair
Please be aware, that a high storage temperature reduces the lifetime of the real-time-clock battery. A permanent storage at 70°C reduces the lifetime of the battery to about 3 years. It is recommended to store the device at room temperature. © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 43: Technical Data
EN 61000-4-4 0.5kV / 0.5kV EN 61000-4-5 10Vrms EN 61000-4-6 Emission Residential EN 61000-6-3 Degree of Front IP 65 (NEMA 12), after EN 60068-2-68 protection note section 7.1 Rear IP20 © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 44 Touch-Screen CAN, not isolated Kap. 5.9) CiA, D-Sub 9 Pol male Fieldbus (option) Profibus DP (Master/Slave/MPI) Kap. 5.11) CompactFlash™ CompactFlash™ Type II ATA Flash, 5V Slot MicroDrive™ DVS 48961 V3.0 © 2010 by Grossenbacher Systeme AG DVS 48961-V4.0...
Page 45: Disposal
Front frame: Plastic or Aluminium, anodised Membrane: Polyester PETP Printed-circuit board: 1. quality Front: IR touch-screen: Safety glass, Plastic frame Makrolon 2805 (Manufacturer: Bayer AG) Resistive touch-screen: Polyester/glass laminate © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 47: Eu Conformity And Standards
The following standard was used to assess the electrical safety of the EthernetPanel: EN 60950 und EN 50178 Manufacturer: Grossenbacher Systeme AG Manufacturer address: Spinnereistrasse 10 CH-9008 St.Gallen Switzerland © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 49: Revision History
+41 (0)71 243 29 28 Email info@gesys.ch Homepage www.gesys.ch Branch Germany: Grossenbacher Systeme GmbH Friedhofstrasse 76-82 D-63263 Neu-Isenburg Germany +49 (0)6102 380 88 +49 (0)6102 385 55 Email sales.de@gesys.ch Homepage www.gesys.ch © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 51: Alphabetical Index
Floppy-drive..............13 USB..............13, 15, 18 Front panel cutout ............26 Fuse................16 Fuse protection............. 44 Warnings ................ 7 Weight................44 Inserting /Removing the CompactFlash....... 22 Introduction..............9 Keyboard..............13 © 2010 by Grossenbacher Systeme AG DVS 48961 V3.0 DVS 48961-V4.0...
Page 52 DVS 48961-V4.0...

This manual is also suitable for:

Ep-300-05i-000 Ep-300-05r-000 Ep-300-06i-000 Ep-300-06r-000 Ep-300-08i-000 Ep-300-10i-000 ... Show all
