DEVICE DESCRIPTION

EthernetPanel

Hardware EthernetPanel

Grossenbacher Systeme AG

Spinnereistrasse 10, CH-9008 St. Gallen

Phone +41 (0)71 243 29 29 / Fax +41 (0)71 243 29 28

info@gesys.ch / www.gesys.ch

DVS 60646-V1.0

EP-370

Grossenbacher Systeme GmbH

Ruhrstrasse 15, DE-63452 Hanau

Phone +49 (0)6181 6751 999/ Fax +49 (0)6181 6751 998

sales.de@gesys.ch

Table of Contents

Need help?

Do you have a question about the EthernetPanel EP-370 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Grossenbacher Systeme EthernetPanel EP-370 Series

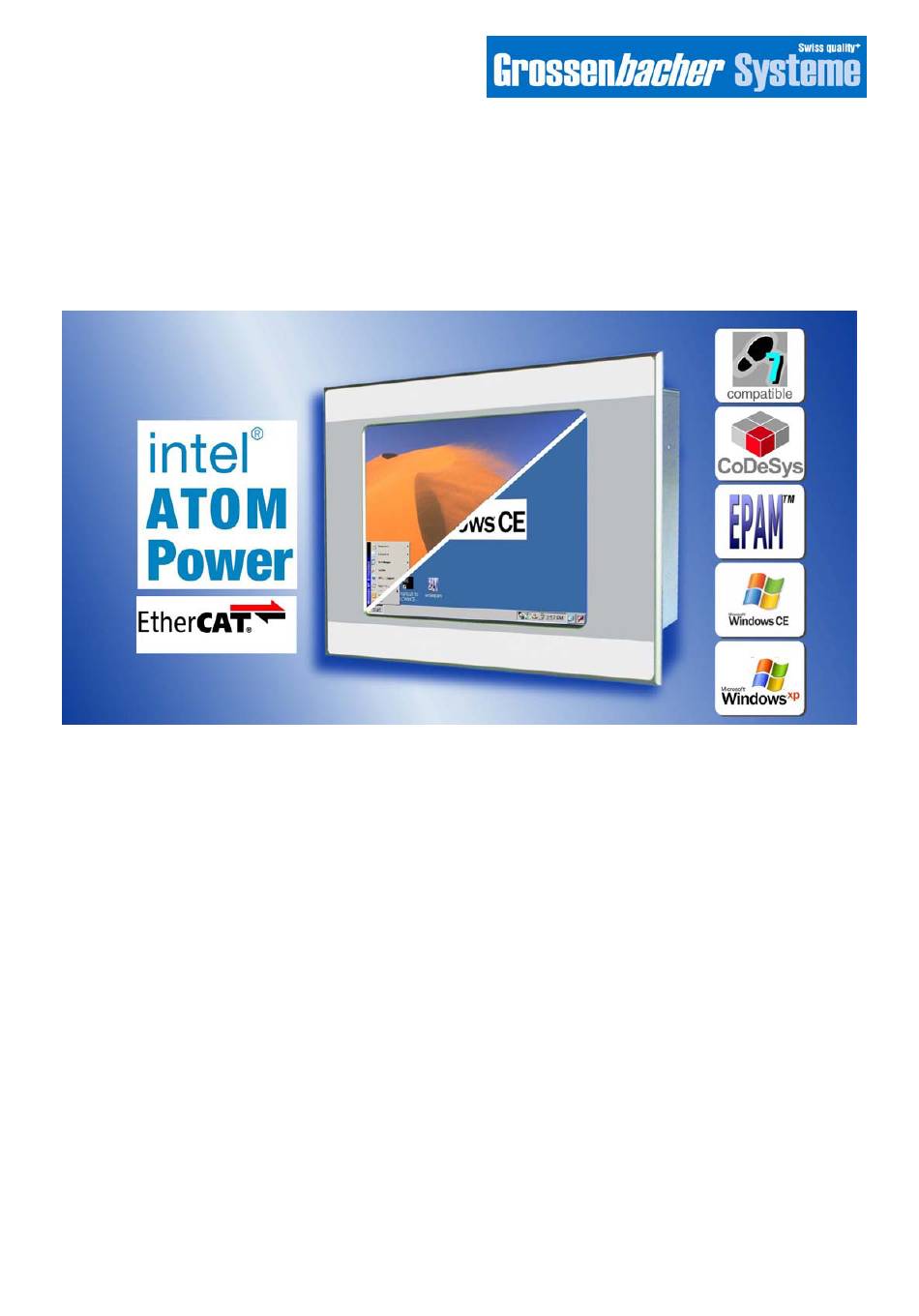

Page 1 DEVICE DESCRIPTION EthernetPanel Hardware EthernetPanel EP-370 Grossenbacher Systeme AG Grossenbacher Systeme GmbH Spinnereistrasse 10, CH-9008 St. Gallen Ruhrstrasse 15, DE-63452 Hanau Phone +41 (0)71 243 29 29 / Fax +41 (0)71 243 29 28 Phone +49 (0)6181 6751 999/ Fax +49 (0)6181 6751 998 info@gesys.ch / www.gesys.ch...
Page 2 Grossenbacher Systeme AG. Grossenbacher Systeme AG does not accept any liability for damages arising from the use of any incorrect or incomplete information contained in this documentation or any information missing therefrom.
Page 3 No liability is accepted for claims for damages arising from a failure or functional defect in the device. All data specified in this document does not represent guaranteed specifications in the legal sense. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 5: Table Of Contents
9.3 Diagnostics................41 10 Maintenance and repair..........43 11 Technical data.............. 45 12 Disposal................ 47 13 EU Conformity and Standards ........49 14 Revision history............51 15 Alphabetical index ............53 © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 7: Explanation Of Symbols
Important information about the product or the relevant section of the document, requiring the particular attention of the reader. The “Information” pictogram has the following meaning: Indicates important and instructional information. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 9: Introduction
The new generation of EthernetPanel EP-370 devices features the 1GHz class continously from 5,7” up to 15” within the openAutomation concept of Grossenbacher Systeme AG. They are based on the Intel Atom 1,1GHz- x86-CPU with WindowsCE/XP/XPe and Ethernet on-board. In the basic configuration the device can be used as „HMI“ or as a user programmable „HMI-Open“...
Page 11: Device Versions
Resistive touch-screen EP-370-15I-000 Ord.No : 50 81 379 EthernetPanel 12” TFT 1024x786 256k colours Infrared touch-screen Ord.No : 50 81 386 EP-370-15R-000 EthernetPanel 12” TFT 1024x768 256k colours Resistive touch-screen © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 12: Accessories
Profibus-DPM Ord.No : 32 12 860 (PC104) Profibus DP-Master; configurable Master/Slave/MPI Profibus-DPS/MPI Ord.No : 32 12 859 (PC104) Profibus DP-Slave/MPI 2.CAN (PC104) Ord.No : 32 12 890 2.CAN DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 13: Features
CompactFlash™ memory media are NOT suitable for cyclical data logging due to the limited number of write cycles (normally 1,000,000). Retain data will be saved on power fail to CompactFlash Only a subset of PC-104 © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 15: Commissioning
Operation, however, is only possible if the connection was made correctly. Connections for the EthernetPanel must comply with specific, local regulations. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 16: Power Fail And Ups
The internal battery is used for backing up the real-time clock and has a lifetime of at least 5 years. The battery can be replaced by the user. (Type: CR2032). DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 17: Preparing The Shield Connections
Connection work should be carried out with special care in order to ensure trouble-free operation. The EMC values stated in the technical data can only be guaranteed if the cables are prepared according to the following specifications. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 18: Connecting The Ethernet
The USB Interface is compatible to USB-standard Version 2.0 The use of the USB-Interface requires support by the operating system. Cables connected to the USB must be laid separately from the low-voltage cables. DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 19: Connection For Com1 Serial Interface (Rs232)
6 7 8 9 Signal Ground (ground potential) Signal Ground (ground potential) Positive data signal HIGH Case Case Cable shield The CAN interface is NOT isolated. The max. baud rate is 1MBit/s. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 20 (120 Ohm between Pin 2 and Pin 7 of the Sub-D connector) must be connected at the beginning and the end of each CAN bus. Do not swap around the two signal wires! Interface 1 Shield Protective ground Protective ground DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 21 Ground. Pins 4, 5 and 8 must not be connected! The CAN bus driver is fed internally. Baud rate and cable lengths Baud rate Max. length 20kBit/sec 2500m 25kBit/sec 2000m 50kBit/sec 1000m 100kBit/sec 650m 125kBit/sec 500m 250kBit/sec 250m 500kBit/sec 100m 1Mbit/sec © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 22: Inserting / Removing The Compactflash
Optinal a 2,5” Sata hard disk is available for the device. This option must be inserted factory made. The hard disk can be installed instead of the PC104 module. DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 23: Operation
For a detailed description of the system-settings on operating system level please refer to the corresponding software-documentation. (e.g. System description WindowsCE/XP) © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 25: Mounting Instructions
Avoid tightening torques of greater than 0.5 Nm as this could otherwise damage the device. The thickness of the front panel must not exceed 5 mm. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 26: Front Panel Cutout 5,7" To 15
RONT PANEL CUTOUT Tolerance for panel cutout +0/-1 mm The thickness of the front panel must not exceed 5 mm. Front panel cutout - 5.7" Front panel cutout – 7.5" DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 27 EthernetPanel Hardware EthernetPanel Front panel cutout - 10.4“ Front panel cutout - 12.1“ © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 28 EthernetPanel Hardware EthernetPanel Front panel cutout - 15“ DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 29: Mechanical Dimensions - Frontside 5,7" To 15
EthernetPanel Hardware EthernetPanel 7.4 M 5,7“ 15“ ECHANICAL DIMENSIONS RONTSIDE Front dimensions - 5,7" Front dimensions – 7,5" © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 30 EthernetPanel Hardware EthernetPanel Front dimensions - 10.4“ Front dimensions – 12,1“ DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 31 EthernetPanel Hardware EthernetPanel Front dimensions – 15“ © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 32: Mechanical Dimensions - Rear Side 5,7" To 15
EthernetPanel Hardware EthernetPanel 7.5 M 5,7“ 15” ECHANICAL DIMENSIONS EAR SIDE Dimensions rear side - 5.7“ DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 33 EthernetPanel Hardware EthernetPanel Dimensions rear side - 7.5" © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 34 EthernetPanel Hardware EthernetPanel Dimensions rear side - 10.4“ DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 35 EthernetPanel Hardware EthernetPanel 15“ Dimensions rear side - 12.1“ © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 36 EthernetPanel Hardware EthernetPanel Dimensions rear side - 15“ DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 37 EthernetPanel Hardware EthernetPanel Dimensions rear side - BOX © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 38 DVS 60646-V1.0...
Page 39: Notes On The Touch-Screen
For an optimal operation of the resistive touch-screen it is recommended to use a touch-pen for the calibration. (s.a. manual system description WindowsCE/XP) © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 41: Backlight, Contrast
(crosslink/direct). The LINK LED is lit when the connection is correct The ACT LED is lit (flashing during transfer) with a correct data transfer - Incorrect/invalid IP address set © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 43: Maintenance And Repair
Please be aware, that a high storage temperature reduces the lifetime of the real-time-clock battery. A permanent storage at 70°C reduces the lifetime of the battery to about 3 years. It is recommended to store the device at room temperature. © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 45: Technical Data
EN 61000-4-4 0.5kV / 0.5kV EN 61000-4-5 10Vrms EN 61000-4-6 Emission Residential EN 61000-6-3 Degree of Front IP 65 (NEMA 12), after EN 60068-2-68 protection note section 7.1 Rear IP20 © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 46 CiA, D-Sub 9 Pol male Kap. 5.10) Fieldbus (option) Profibus DP (Master/Slave/MPI) / CAN / 4xRS232 Kap. 5.13) CompactFlash™ CompactFlash™ Type II ATA Flash, 5V Slot MicroDrive™ SDCARD Slot SDCARD SD, SDHC bootable DVS 60646 V1.0 © 2010 by Grossenbacher Systeme AG DVS 60646-V1.0...
Page 47: Disposal
Front frame: Plastic or Aluminium, anodised Membrane: Polyester PETP Printed-circuit board: 1. quality Front: IR touch-screen: Safety glass, Plastic frame Makrolon 2805 (Manufacturer: Bayer AG) Resistive touch-screen: Polyester/glass laminate © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 49: Eu Conformity And Standards
The following standard was used to assess the electrical safety of the EthernetPanel: EN 60950 und EN 50178 Manufacturer: Grossenbacher Systeme AG Manufacturer address: Spinnereistrasse 10 CH-9008 St.Gallen Switzerland © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 51: Revision History
+41 (0)71 243 29 28 Email info@gesys.ch Homepage www.gesys.ch Branch Germany: Grossenbacher Systeme GmbH Ruhrstrasse 15 D-63452 Hanau Germany +49 (0)6181 6751 999 +49 (0)6181 6751 998 Email sales.de@gesys.ch Homepage www.gesys.ch © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 53: Alphabetical Index
Technical data ..........45 Fuse ............16 Transport ............43 Fuse protection........... 46 USB..........13, 15, 18 Inserting /Removing the CompactFlash ..22 Inserting /Removing the SDCARD....22 Introduction..........9 Warnings ............7 Weight ............46 © 2010 by Grossenbacher Systeme AG DVS 60646 V1.0 DVS 60646-V1.0...
Page 54 DVS 60646-V1.0...
