PARAMETER
System Features:
Rugged & Compact Public Address PA Sound System
Bluetooth Wireless Music Streaming Ability
Built-in Rechargeable Battery for Portability
(2) 1/4'' Microphone Inputs + (2) 1/4'' Guitar/Instruments Inputs
Ability to Connect & Stream Audio From External Devices
Wireless Microphone Included
Connect up to (3) Mics Simultaneously for a Karaoke Party
Ported Enclosure for Increased Bass Response
Full Range Stereo Sound Reproduction
Independent Channel Volume Controls
Audio Configuration: Echo, Bass and Treble Controls
Telescoping Handle & Caster Wheels
35mm Speaker Stand Mount
8'' Full Range Speaker
LED Indicator Lights
Wireless Microphone Included
External 12V Power DC Input Connector
Perfect for Karaoke, Public Events, Crowd Control, etc.
Bluetooth Connectivity:
Built-in Bluetooth for Wireless Music Streaming
Works with All of Your Favorite Devices
(iPhone, Android, Smartphone, iPad, Tablet, Computer, etc.)
Bluetooth Wireless Network Name: Pyle Speaker
Bluetooth Version: 3.0
Bluetooth Wireless Range: 100 Ft.
Accessories Included:
Wireless Dynamic Microphone
1/4'' to Aux (3.5mm) Audio Cable + Adapter
Battery Terminal Alligator Clamp Cables
RCA Connection Cable
Power Cable
Technical Specs:
Max Power Output: 400 Watt
RMS Power Output: 200 Watt
VHF Band Signal System Transmission
Wireless Mic Operation Range: 100 ft.
System Battery Life: Approx. 10 Hours
Average Charging Time: 8 - 10 Hours
Battery Type: Lead Acid, 12V (4.5A)
Operating Frequency: 254.6kH
Frequency Response: 35-20kHz
SPL: 94dB (1W/M)
T.H.D.: <1%
Battery Powered Wireless Mic: Requires 2 x 'AA' Batteries
Power: 110/220 Voltage Switchable
Dimensions (L x W x H): 14.7'' x 10.6'' x 11.2''
Wireless Portable Bluetooth PA Speaker System,
Built-in Rechargeable Battery, Wireless Microphone, 400 Watt
PWMA230BT

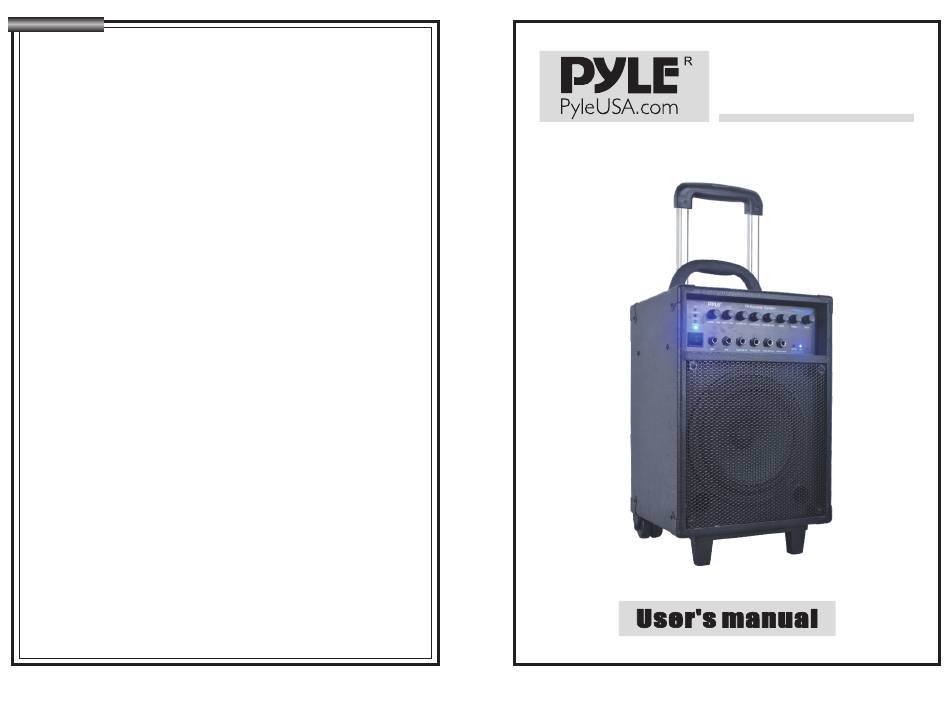

OPPERATING INSTRUCTIONS
www.pyleUSA.com
Advertisement
Related Manuals for Pyle PWMA230BT
Summary of Contents for Pyle PWMA230BT
- Page 1 Bluetooth Connectivity: Built-in Bluetooth for Wireless Music Streaming Works with All of Your Favorite Devices (iPhone, Android, Smartphone, iPad, Tablet, Computer, etc.) Bluetooth Wireless Network Name: Pyle Speaker Bluetooth Version: 3.0 Bluetooth Wireless Range: 100 Ft. Accessories Included: Wireless Dynamic Microphone 1/4'' to Aux (3.5mm) Audio Cable + Adapter...
- Page 2 R E M A R K S 1.Correct power must be used, don't use any other power except the specified one. PWMA230BT 2.Don't drag the power cable when pull out the plugs, just hold the plug to pull it out from socket.
- Page 3 SYSTEM FUNCTION FIGURE INSTRUCTIONS 1. Confirm the power 27.Trailer Handle 36.Rechargeable Battery Cover ① AC Power: Before operation, please confirm the voltage is 28.Heating Pane 37.Warning same as the specified one marked on the label. If not, the unit 29.Handle 38.4.5AH/12V Rechargeable Battery will be damaged.
- Page 4 4. Use your Bluetooth phone or other device to search for the PA speaker. It will displayed as PYLE SPEAKER comes on at all times, it indicates the battery lack of power, 5.Connnect your devices with PYLE SPEAKER,it will pair with unit please replace the battery. automatically. ⑧...
