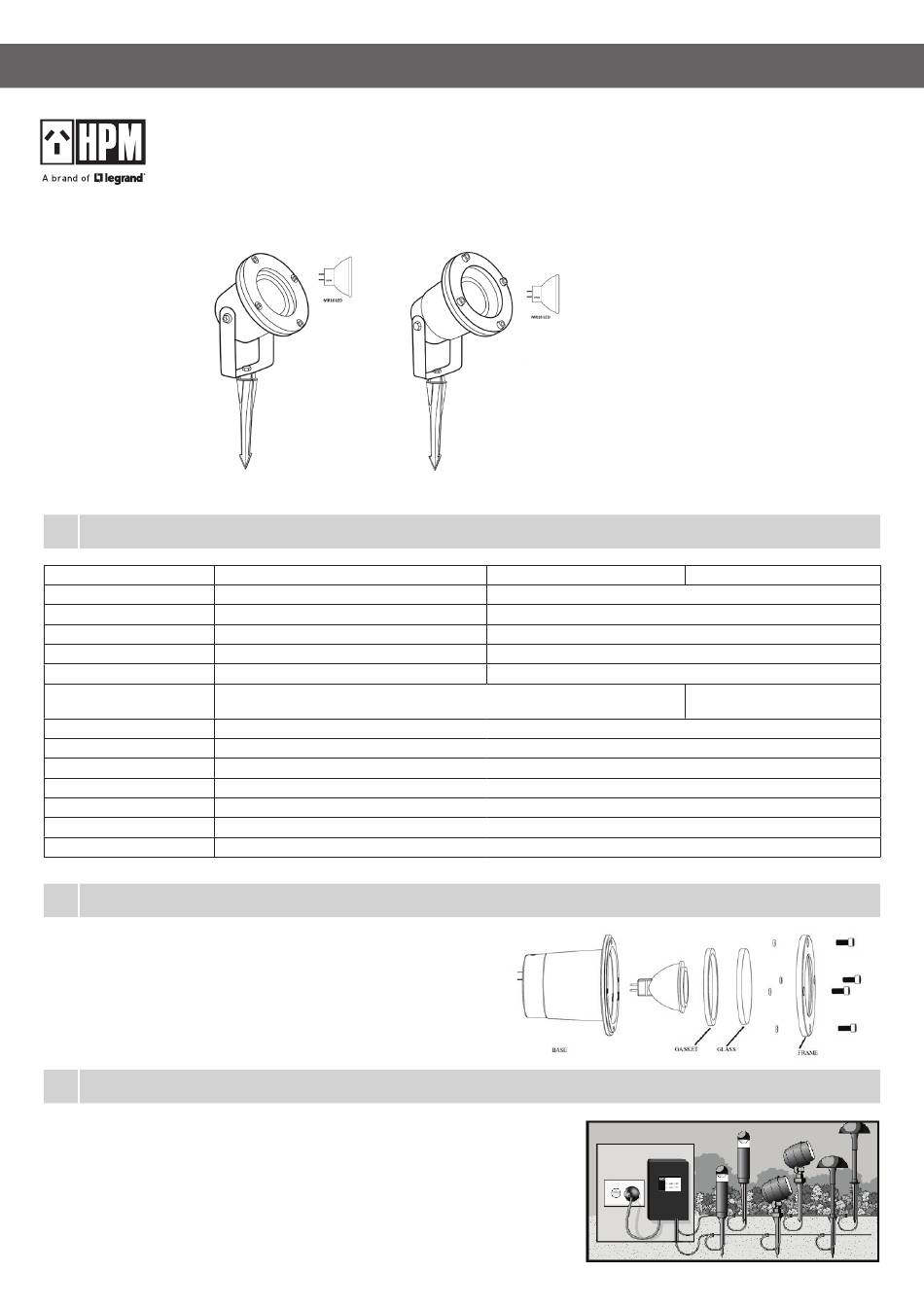

GLLED005, GLLED009
1
Specifications
Cat No
Description
Power
Lumen output
Beam Angle
Replacement globe
Housing Material / Finish
Voltage
IP rating
CCT
Mounting
Wiring connection
Lifetime (Lamp)
Warranty
2
Globe Assembly
STEP 1 Find 1x LED MR16 lamp in packaging (in a separate box).
STEP 2 Undo 4x Screws on the face of fixture & remove frame with clear glass.
STEP 3 Push lamp in firmly into holder.
STEP 4 Ensure the Gasket is positioned in the step, locate the glass onto the base and
fix the frame back into place. The gasket is necessary to maintain IP rating of fixture.
3
Cable Layout
If your installation includes multiple lights, HPM strongly recommends that you limit individual
cable lengths to 20 metres, or use HPM heavier duty cable, otherwise lights may get progressively
dimmer towards the end of the cable (voltage drop). See section for accessories
If your installation requires a total of more than 20 metres of cable, consider running two seperate
cables from the transformer output.
It is recommended that the LED lighting does not exceed 50% of the load rating of the transformer.
Refer to section 'Choosing a suitable transformer' for further information
GLLED007, GLLED008
GLLED005, GLLED009
LED Mini Pond Light
3.5W
260 lm
93˚
3.5W LED-MR16 (UPTO 20W Halogen MR16)
Aluminium Powdercoated Black
Cat. GLLED005, GLLED007, GLLED008, GLLED009
GLLED007
3.5W LED-MR16 (UPTO 35W Halogen MR16)
12Vac
IP68
3000K
Metal Bracket / Plastic Ground stake
Jaw Lock connector
25000hrs @ 25˚C
1 yr (Excludes Globe)
LED Pond Lights
Instruction Manual
GLLED008
LED Pond Light
4.5W
370 lm
67˚
Solid Brass - Electoplated
Stainless Steel finish
