1
Specifications
Cat No
Power
Beam Angle
Voltage
IP rating
CCT
Lumen output
Replacement globe
Mounting
Wiring connection
Housing Material / Finish
Lifetime (Lamp)
2
Assembly
This is an integrated LED fixture & comes fully assembled. There are no serviceable parts inside.
3
Cable Layout
If your installation includes multiple lights, HPM strongly recommends that you limit individual
cable lengths to 20 metres, or use HPM heavier duty cable, otherwise lights may get progressively
dimmer towards the end of the cable (voltage drop). See section for accessories
If your installation requires a total of more than 20 metres of cable, consider running two seperate
cables from the transformer output.
It is recommended that the LED lighting does not exceed 50% of the load rating of the transformer.
Refer to section 'Choosing a suitable transformer' for further information
GLLED004
GLLED004
Metal Bracket / Plastic Ground stake
Jaw Lock connector
Aluminium Powdercoated Black
10000hrs @ 25˚C

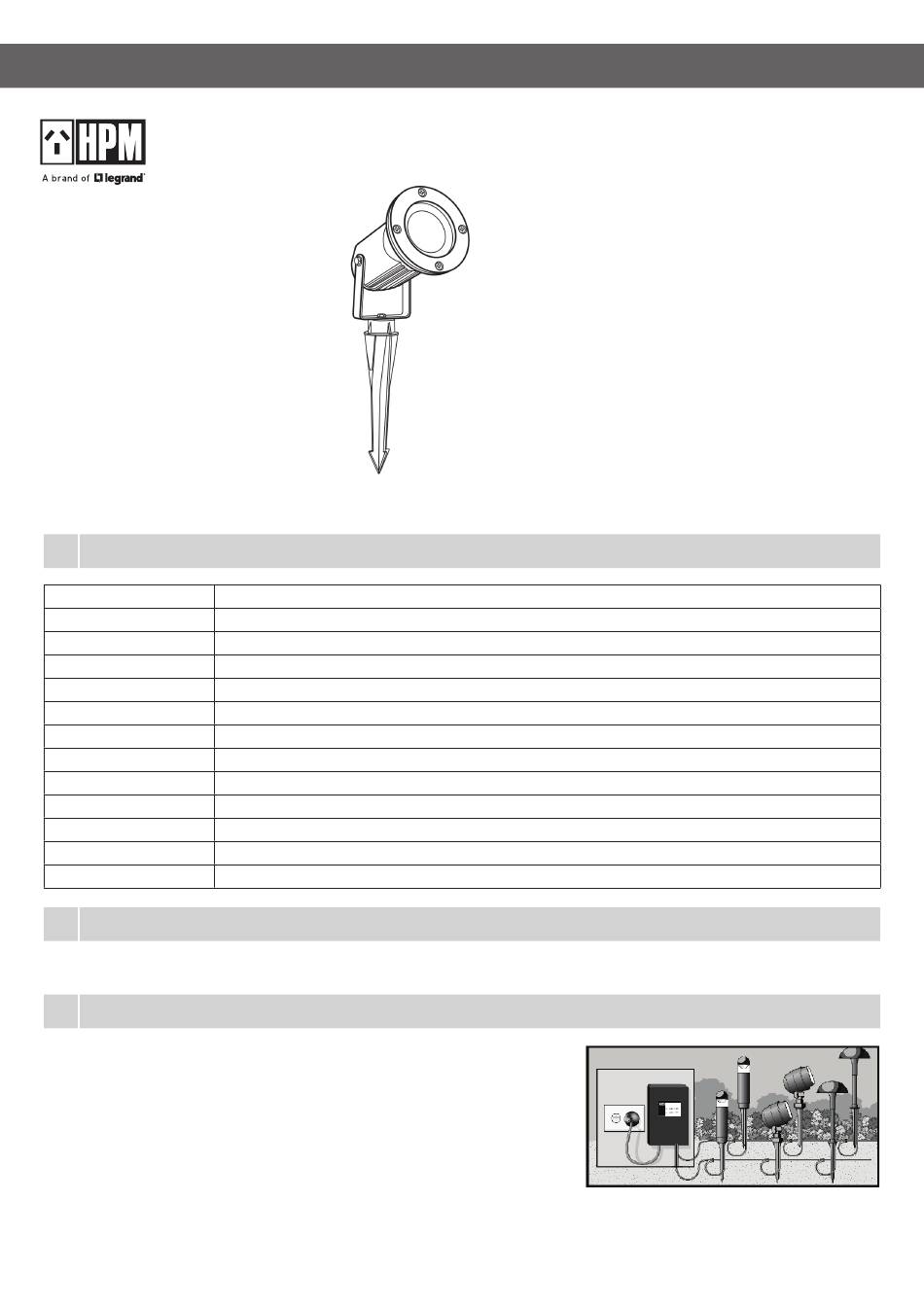

LED Spot Lights
Instruction Manual
3W
43˚
12Vac
IP55
3000K
200 lm
N/A
1 yr
Cat. GLLED004
Advertisement
Table of Contents
Related Manuals for HPM GLLED004
Summary of Contents for HPM GLLED004
- Page 1 If your installation includes multiple lights, HPM strongly recommends that you limit individual cable lengths to 20 metres, or use HPM heavier duty cable, otherwise lights may get progressively dimmer towards the end of the cable (voltage drop). See section for accessories If your installation requires a total of more than 20 metres of cable, consider running two seperate cables from the transformer output.
- Page 2 STEP 3 - Installation of a 12V Timer (if applicable) If a 12 volt timer (HPM Cat No RGL10) is purchased, it must be positioned between the transformer and the lights. With the power turned off, connect the wire strands, on the end of the timer cable, into the output terminals of the transformer.
-
Page 3: Troubleshooting
1. The connection to the light is loose. (See ‘Connecting your garden lights’ section). 2. The globe is loose. Push in firmly, (Watch out that globe is not hot). (HPM recommends paper or cloth be used to handle the globe).
